Ms88sf2-breakboard
About the Ms88sf2-breakboard PCB
Ms88sf2-breakboard is an open source PCB design by galopago, published on GitHub under the MIT license. It is a 2-layer board measuring 29.4 × 36.8 mm, with 4 components from 2 distinct parts.
Other key parts include the MS88SF2. By type, the board carries 3 connectors and 1 IC.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

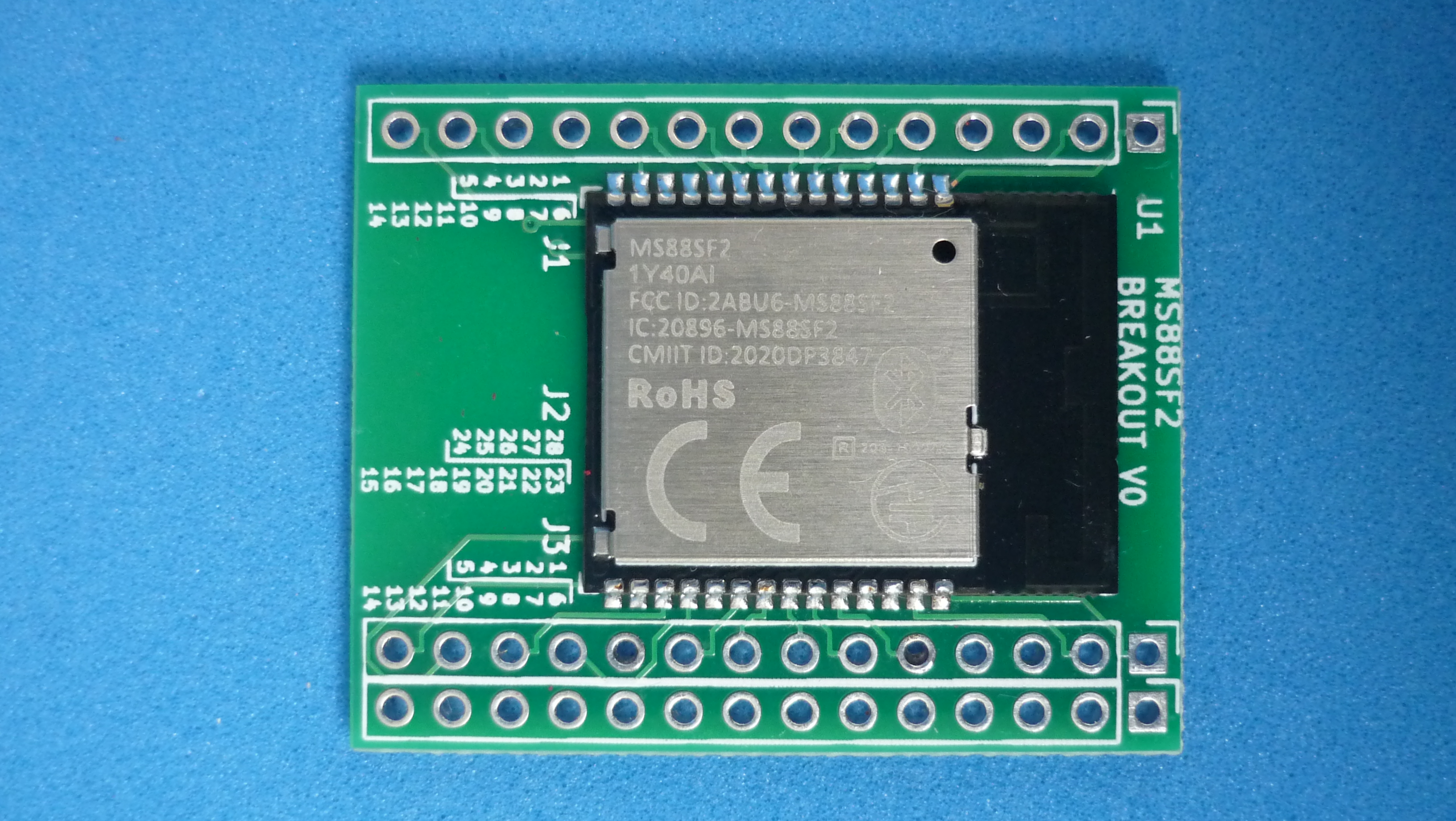

Open source breakout boards for "stamp like" rf modules. Good for experimenting on a breadboard or to be used as sub-boards.
This board allows Minew MS88SF2 modules to be used on breadboard for prototyping. Open source and manufacturing files available. The main features are:
Every pin is accessible Compatible with solderless breadboard * Double row header for maximizing free space on prototype boards
The root folder contains template KiCad files: project, schematic and PCB /library folder contains additional symbols needed to edit printed schematic /modules folder contains additional footprints needed to edit printed circuit board /gerber folder contains ready to manufacture files. * /assets folder contains…
Main components on the Ms88sf2-breakboard
Ms88sf2-breakboard bill of materials (BOM)
4 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MS88SF2 | MS88SF2 | U1 |
| 3 | Conn_01x14_Male | PinHeader_1x14_P2.54mm_Vertical | J1, J2, J3 |
Ms88sf2-breakboard design files
The KiCad project lives in the galopago/dil-breakout-pcb repository on GitHub; these links point at the commit this page was built from.
Ms88sf2-breakboard: common questions
How big is the Ms88sf2-breakboard PCB?
The Ms88sf2-breakboard measures 29.4 × 36.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Ms88sf2-breakboard?
4 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the Ms88sf2-breakboard design files?
From the galopago/dil-breakout-pcb repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Ms88sf2-breakboard design in my own project?
Yes, under the terms of its MIT license, which galopago chose for the repository.
