About the Owl driver board-16
Owl driver board-16 is an open source Raspberry Pi PCB design by geezacoleman, published on GitHub under the MIT license. It is a 4-layer board measuring 234.4 × 56 mm, with 445 components from 75 distinct parts.
Its main chip is the C35165, from the Raspberry Pi family. Other key parts include the C50605, C3210761, C12512, C5148692 and 74LVC1G08. By type, the board carries 161 resistors, 133 diodes, 48 capacitors, 35 transistors, 27 connectors and 20 ICs.
From the project
Development of a board that receives GPIO input and allows on/off control of connected solenoids.

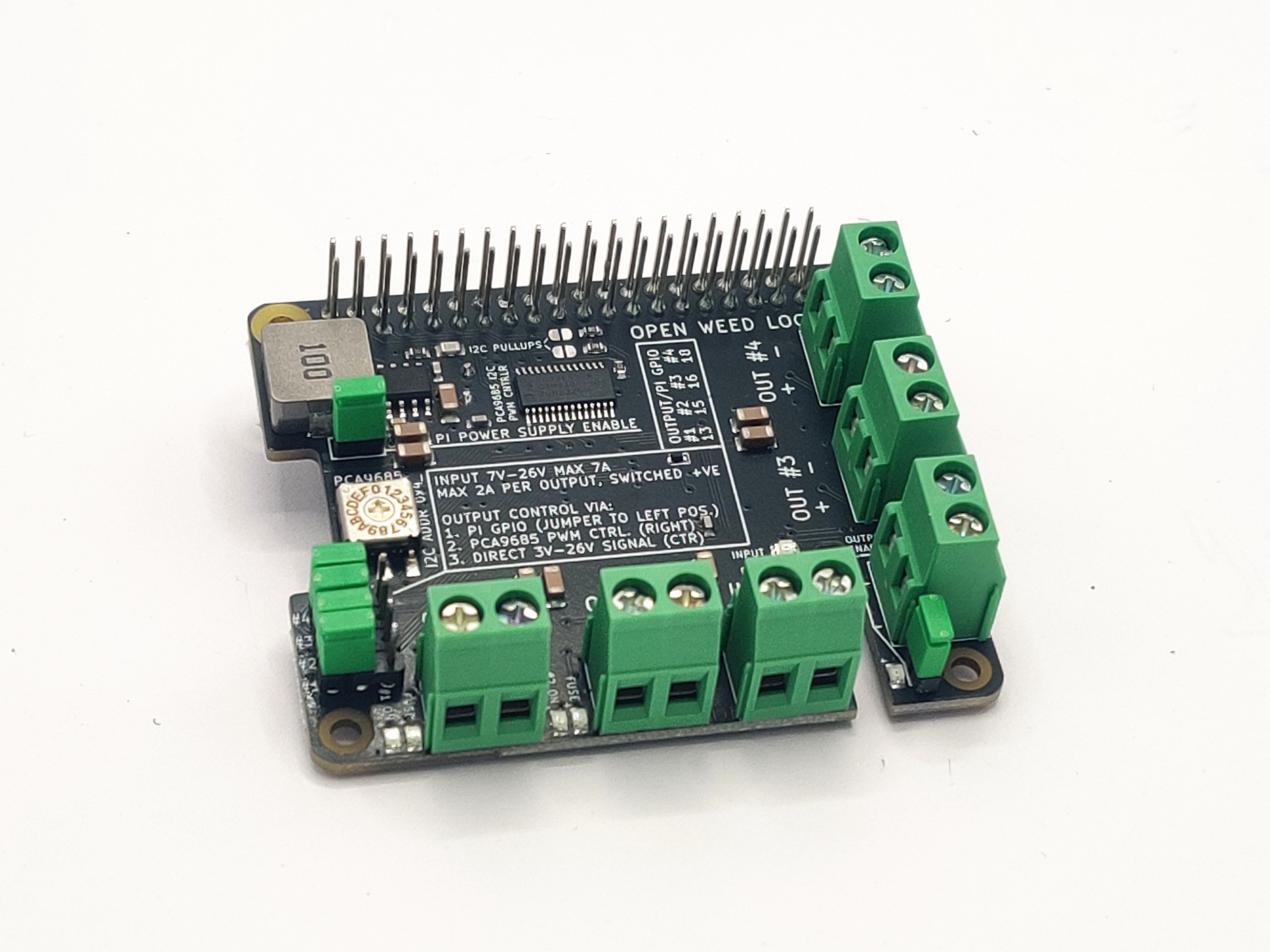

The OWL Driver Board is a solid-state relay HAT for the Raspberry Pi. It was developed for use with the Open Weed Locator but is suitable for any high-power, industrial, automotive or agricultural application.
It allows a Raspberry Pi to drive either 4x or 16x 2A outputs in any 12V or 24V system, with the solid state switching allowing PWM control, including for dimming LED strips. Outputs can be placed in parallel for more power if needed.

Main components on the Owl driver board-16
Owl driver board-16 bill of materials (BOM)
445 components, 75 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C50605 TPS54531DDA | Texas_R-PDSO-G8_EP2.95x4.9mm_Mask2.4x3.1mm_ThermalVias | U1 |
| 1 | C3210761 LM73100 | LM73100-QFN10 | U3 |
| 4 | C12512 74LVC1G08 | SOT-353_SC-70-5 | U5, U6, U7, U8 |
| 1 | C5148692 XC6206P332MR | SOT-23 | U9 |
| 13 | 74LVC1G08 | SOT-353_SC-70-5 | U10, U11, U12, U13, U14, U15, U16, U17 +5 |
| 4 | C17701049 AGM60P85AP | PDFN-8-3.3x3.3 | Q1, Q2, Q3, Q7 |
| 3 | C8545 2N7002 | SOT-23_nosilk | Q4, Q5, Q8 |
| 1 | C17701049 2N7002 | SOT-23_nosilk | Q6 |
| 1 | C8545 AGM60P85AP | PDFN-8-3.3x3.3 | Q9 |
| 12 | 2N7002 | SOT-23_nosilk | Q10, Q12, Q14, Q16, Q18, Q20, Q22, Q24 +4 |
| 14 | AGM60P85AP | PDFN-8-3.3x3.3 | Q11, Q13, Q15, Q17, Q19, Q21, Q23, Q25 +6 |
| 1 | C35165 RASPBERRYPI-40-PIN-GPIO | Pin_Header_Straight_2x20 | J2 |
| 6 | C3819953 1890963 | JST_VH_B2P-VH_1x02_P3.96mm_Vertical | J3, J4, J5, J7, J8, J10 |
| 1 | C358693 CONN_04X2 | Connector_PinHeader_2x04_P2.54mm_Vertical_nosilk | J6 |
| 1 | C358684 PI 5V | PinHeader_1x02_P2.54mm_Vertical_nosilk | J9 |
| 1 | C358684 ENABLE | PinHeader_1x02_P2.54mm_Vertical_nosilk | J11 |
| 14 | 1890963 | JST_VH_B2P-VH_1x02_P3.96mm_Vertical | J12, J13, J14, J15, J16, J17, J18, J19 +6 |
| 3 | CONN_04X2 | Connector_PinHeader_2x04_P2.54mm_Vertical_nosilk | J25, J27, J29 |
| 1 | C207092 XF-508P-B-B | Fuseholder_Blade_Mini_Keystone_3568 | F1 |
| 4 | C207087 2920L200DR | Fuse_2920_7451Metric_nosilk | F2, F3, F4, F5 |
Show 55 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 12 | 2920L200DR | Fuse_2920_7451Metric_nosilk | F6, F7, F8, F9, F10, F11, F12, F13 +4 |
| 3 | XF-508P-B-B | Fuseholder_Blade_Mini_Keystone_3568 | F18, F19, F20 |
| 4 | C434431 KT-0805Y | LED_0805_2012Metric | D1, D4, D5, D19 |
| 2 | C460799 BZT585B13T-7 13V | D_SOD-523_silkpolarity | D2, D3 |
| 1 | C460799 BZT52C5V1T | D_SOD-523_silkpolarity | D6 |
| 1 | C315992 SMBJ26A | D_SMB_silkpolarity | D7 |
| 10 | C727076 DSK34 | D_SOD-123F_silkpolarity | D8, D9, D10, D11, D12, D13, D22, D23 +2 |
| 35 | DSK34 | D_SOD-123F_silkpolarity | D14, D27, D28, D53, D54, D56, D60, D61 +27 |
| 12 | BZT585B13T-7 13V | D_SOD-523_silkpolarity | D15, D52, D59, D66, D73, D80, D87, D94 +4 |
| 1 | C83333 SMBJ5.0A | D_SMB_silkpolarity | D16 |
| 2 | C460799 DSK34 | D_SOD-123F_silkpolarity | D17, D18 |
| 1 | C434431 DSK34 | D_SOD-123F_silkpolarity | D20 |
| 2 | C727076 BZT585B13T-7 13V | D_SOD-523_silkpolarity | D21, D26 |
| 1 | C727076 KT-0805Y | LED_0805_2012Metric | D24 |
| 6 | C434435 KT-0805G | LED_0805_2012Metric | D29, D30, D31, D37, D38, D41 |
| 1 | C968007 KT-0805Y | LED_0805_2012Metric | D32 |
| 1 | C968007 BZT52C5V1T | D_SOD-523_silkpolarity | D33 |
| 2 | C968007 AZ23C3V3 | SOT-23_nosilk | D34, D35 |
| 1 | C154714 PDS1040L-13 | D_PowerDI-5 | D36 |
| 2 | C2987034 BZT52C5V1T | D_SOD-523_silkpolarity | D39, D45 |
| 1 | C2987034 KT-0805G | LED_0805_2012Metric | D42 |
| 1 | C2987034 KT-0805Y | LED_0805_2012Metric | D43 |
| 1 | C2987034 DSK34 | D_SOD-123F_silkpolarity | D44 |
| 16 | BZT52C5V1T | D_SOD-523_silkpolarity | D46, D47, D48, D49, D50, D57, D64, D71 +8 |
| 11 | KT-0805G | LED_0805_2012Metric | D51, D58, D65, D72, D79, D86, D93, D100 +3 |
| 12 | KT-0805Y | LED_0805_2012Metric | D55, D62, D69, D76, D83, D90, D97, D104 +4 |
| 6 | AZ23C3V3 | SOT-23_nosilk | D126, D127, D128, D129, D130, D131 |
| 1 | C7461391 10uH | L_10.4x10.4_H4.8 | L1 |
| 14 | C89835 10uF | C_1206_3216Metric_nosilk | C1, C2, C3, C4, C5, C10, C11, C12 +6 |
| 10 | C14663 10uF | C_1206_3216Metric_nosilk | C6, C7, C9, C21, C25, C26, C27, C28 +2 |
| 1 | 220uF 50V | CP_Elec_10x10 | C8 |
| 1 | C16133 220uF 50V | CP_Elec_10x10 | C13 |
| 1 | C14663 100n | C_0402_1005Metric_nosilk | C17 |
| 1 | C107107 10p | C_0603_1608Metric_nosilk | C22 |
| 1 | C1870141 2n | C_0603_1608Metric_nosilk | C23 |
| 1 | C77053 10n | C_0603_1608Metric_nosilk | C24 |
| 18 | 10uF | C_1206_3216Metric_nosilk | C31, C32, C33, C34, C35, C36, C37, C38 +10 |
| 13 | C21190 1k | R_0603_1608Metric | R1, R2, R3, R4, R5, R9, R10, R13 +5 |
| 8 | C25241 470 | R_0603_1608Metric | R6, R7, R29, R30, R31, R38, R55, R58 |
| 7 | C15401 10k | R_0603_1608Metric | R8, R11, R12, R47, R51, R53, R62 |
| 2 | C21190 10k | R_0603_1608Metric | R14, R19 |
| 3 | C21190 470 | R_0603_1608Metric | R16, R39, R40 |
| 4 | C25241 1k | R_0603_1608Metric | R17, R18, R24, R26 |
| 10 | C15401 470 | R_0603_1608Metric | R21, R32, R33, R34, R35, R36, R37, R59 +2 |
| 3 | C15401 1k | R_0603_1608Metric | R22, R50, R52 |
| 5 | C25241 10k | R_0603_1608Metric | R25, R27, R54, R56, R57 |
| 1 | C22816 165k | R_0603_1608Metric | R41 |
| 1 | C22772 10.2k | R_0603_1608Metric | R42 |
| 1 | C23172 43k | R_0603_1608Metric | R43 |
| 1 | C22803 14k | R_0603_1608Metric | R44 |
| 1 | C22850 1.87k | R_0603_1608Metric | R45 |
| 1 | C23146 360k | R_0603_1608Metric | R46 |
| 28 | 470 | R_0603_1608Metric | R63, R64, R68, R71, R75, R78, R82, R85 +20 |
| 34 | 1k | R_0603_1608Metric | R65, R66, R70, R72, R73, R77, R79, R80 +26 |
| 38 | 10k | R_0603_1608Metric | R67, R69, R74, R76, R81, R83, R88, R90 +30 |
Owl driver board-16 design files
The KiCad project lives in the geezacoleman/owl-driver-board repository on GitHub; these links point at the commit this page was built from.
Owl driver board-16: common questions
What microcontroller does the Owl driver board-16 use?
The Owl driver board-16 is built around the C35165, from the Raspberry Pi family.
How big is the Owl driver board-16?
The Owl driver board-16 measures 234.4 × 56 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Owl driver board-16?
445 components, from 75 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Owl driver board-16 design files?
From the geezacoleman/owl-driver-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Owl driver board-16 design in my own project?
Yes, under the terms of its MIT license, which geezacoleman chose for the repository.
Can I test firmware for the Owl driver board-16 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
