Hackpad 2025

gethin101·hackpad_2025·PCB/Fresh pc hackpad GG.kicad_pcb

Hackpad 2025 PCB layout, top view — open source RP2040/RP2350 board by gethin101

About the Hackpad 2025 PCB

Hackpad 2025 is an open source RP2040/RP2350 PCB design by gethin101, published on GitHub. It is a 2-layer board measuring 62.4 × 82.1 mm, with 11 components from 3 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 9 switches, 1 IC and 1 connector.

It belongs with the displays & leds and keyboards designs in this gallery.

From the project

Gethin HackPad v1 macropad - 3x3 mechanical switches, 0.91” OLED display, powered by XIAO-RP2040

This repository contains all files for my AMD x HackClub Macropad project. The macropad is designed for computer shortcuts, python programming, and game controlling.

It features: - 3x3 mechanical keys - 0.91" OLED display - Powered by a Seeed XIAO RP2040 microcontroller

This is the overview of my hackpad assembled in Fusion 360 which shows how it should be all put together

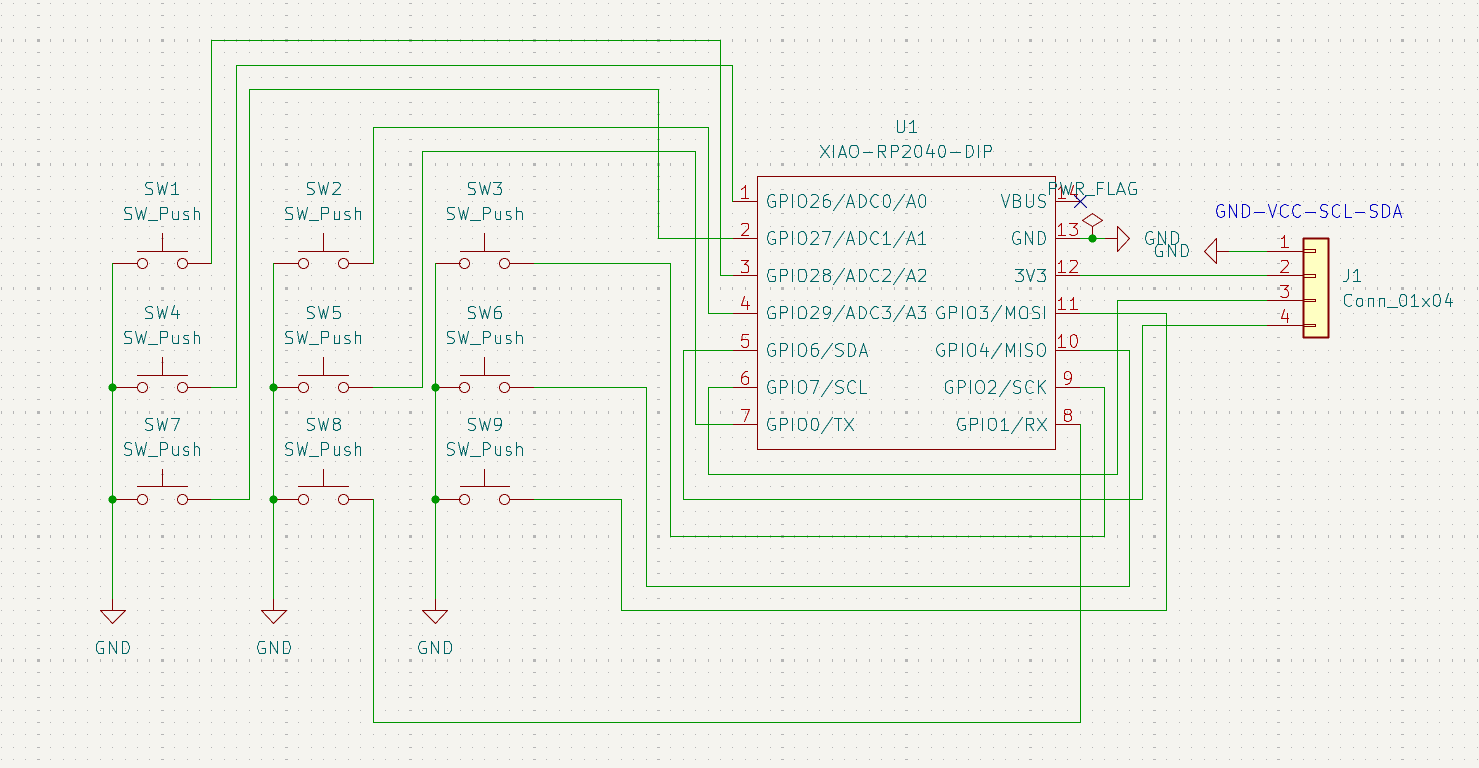

Hackpad 2025, from the project README
From the project README

Main components on the Hackpad 2025

XIAO-RP2040-DIP

Hackpad 2025 bill of materials (BOM)

11 components, 3 distinct parts.

QtyPartRefs
1
XIAO-RP2040-DIP
U1
1
Conn_01x04
J1
9
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +1

Hackpad 2025 design files

The KiCad project lives in the gethin101/hackpad_2025 repository on GitHub; these links point at the commit this page was built from.

Hackpad 2025: common questions

What microcontroller does the Hackpad 2025 use?

The Hackpad 2025 is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the Hackpad 2025 PCB?

The Hackpad 2025 measures 62.4 × 82.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Hackpad 2025?

11 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Hackpad 2025 design files?

From the gethin101/hackpad_2025 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Hackpad 2025 design in my own project?

The repository has no license, so all rights stay with gethin101. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Hackpad 2025 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
