Soil probe oop

GewoonMaarten·soil-sensor·devices/soil-sensor/hardware/v2/soil_probe_oop.kicad_pcb

Soil probe oop PCB layout, top view — open source board by GewoonMaarten
Simulate this board

About the Soil probe oop PCB

Soil probe oop is an open source PCB design by GewoonMaarten, published on GitHub. It is a 2-layer board measuring 29 × 107.9 mm, with 7 components from 6 distinct parts.

Other key parts include the FDC1004. By type, the board carries 2 ICs, 2 capacitors, 2 resistors and 1 connector.

It belongs with the sensors designs in this gallery.

From the project

Schematic and PCB for a capacitive soil moisture sensor 🌱.

Based on the Capacitive-Based Liquid Level Sensing Sensor Reference Design.

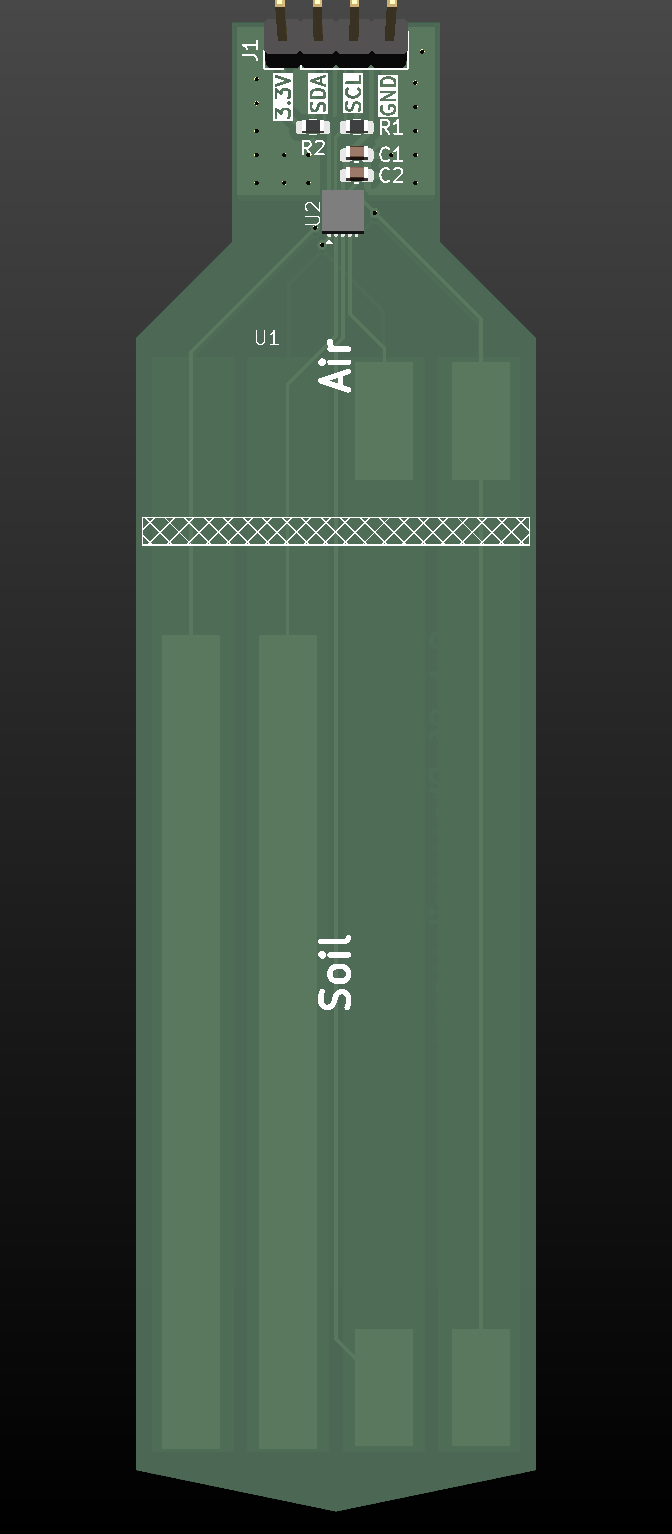

Soil probe oop, from the project README
From the project README

Main components on the Soil probe oop

FDC1004

Soil probe oop bill of materials (BOM)

7 components, 6 distinct parts.

QtyPartRefs
1
~
U1
1
FDC1004
U2
1
Conn_01x04
J1
1
1uF
C1
1
100nF
C2
2
1K
R1, R2

Soil probe oop design files

The KiCad project lives in the GewoonMaarten/soil-sensor repository on GitHub; these links point at the commit this page was built from.

Soil probe oop: common questions

How big is the Soil probe oop PCB?

The Soil probe oop measures 29 × 107.9 mm, has 2 copper layers and is 1.579 mm thick.

How many components are on the Soil probe oop?

7 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Soil probe oop design files?

From the GewoonMaarten/soil-sensor repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Soil probe oop design in my own project?

The repository has no license, so all rights stay with GewoonMaarten. Use it as a reference, and ask the author before reusing the design.
