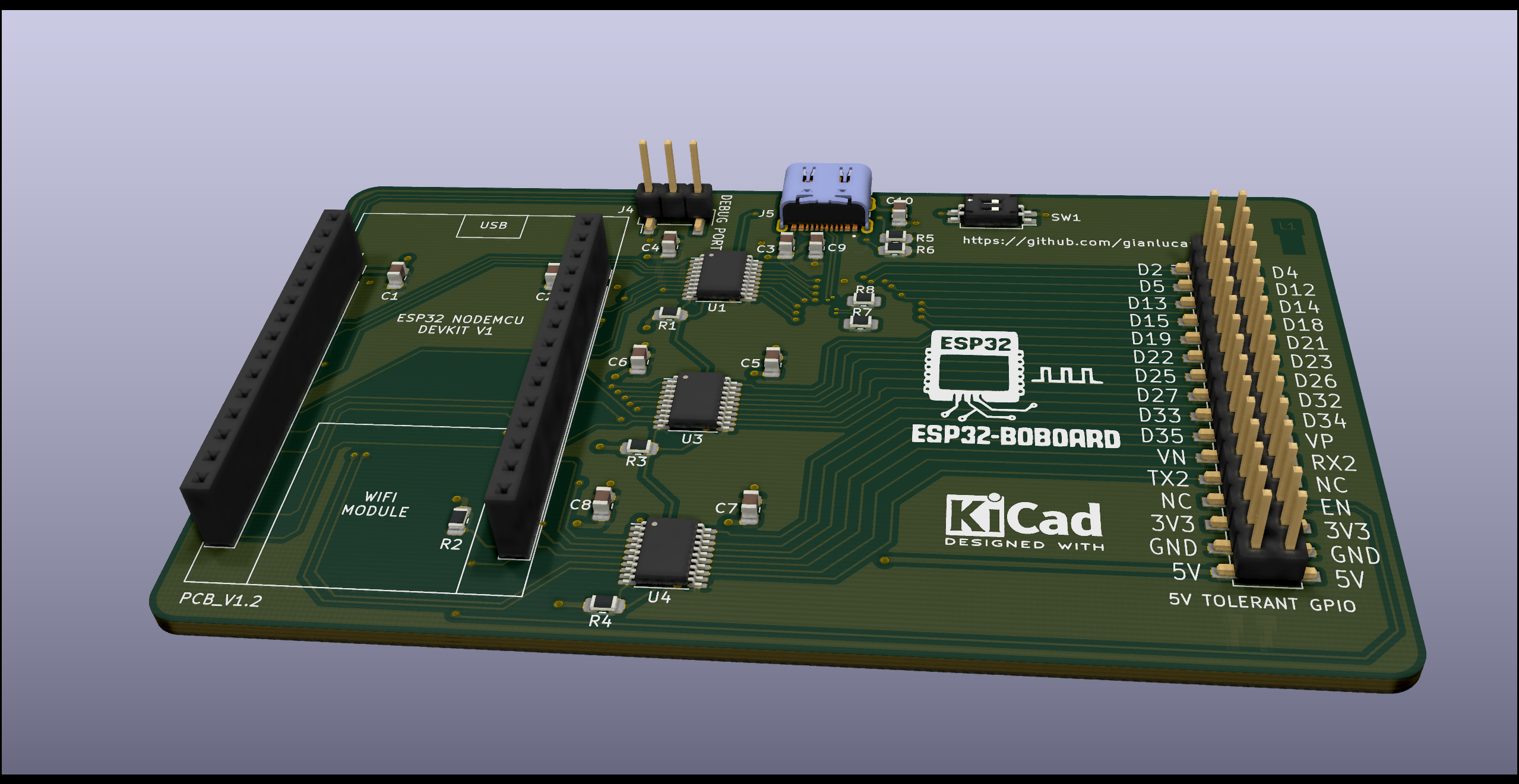

ESP32-BOBOARD-5V
About the ESP32-BOBOARD-5V PCB
ESP32-BOBOARD-5V is an open source ESP32 PCB design by gianlucarenzi, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 100 × 60 mm, with 28 components from 12 distinct parts.
Its main chip is the LOGO, from the ESP32 family. Other key parts include the TXS0108EPW. By type, the board carries 10 capacitors, 8 resistors, 5 connectors, 3 ICs and 1 switch.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
ESP32 NODEMCU 5V TOLERANT BREAKOUT BOARD
ESP32 NodeMCU 5V Tolerant Breakout Board per Monitoraggio Bus 6502
- Panoramica del Progetto - Caratteristiche Principali - Specifiche Tecniche - Visualizzazione 3D - Architettura Hardware - Firmware - Installazione e Setup - Utilizzo - Diagrammi di Flusso - Tempistiche - File del Progetto - Produzione - Licenza - Contributi
ESP32-BOBOARD-5V è una scheda breakout specializzata progettata per interfacciare un modulo ESP32 NodeMCU con sistemi basati su processore 6502, come l'Atari 8-bit. La scheda fornisce:
Main components on the ESP32-BOBOARD-5V
ESP32-BOBOARD-5V bill of materials (BOM)
28 components, 12 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | TXS0108EPW | TSSOP-20_4.4x6.5mm_P0.65mm | U1, U3, U4 |
| 2 | Conn_01x15 | PinSocket_1x15_P2.54mm_Vertical | J1, J2 |
| 1 | CONN_02X16_PIN_SMD_COUNTER_CLOCKWISE CONN_02x16_PIN_SMD_Counter_Clockwise-RetroBitLab | PinHeader_2x16_P2.54mm_Vertical_SMD | J3 |
| 1 | CONN_01X03_MALE Conn_01x03_Male | PinHeader_1x03_P2.54mm_Vertical_SMD_Pin1Left | J4 |
| 1 | DX07S016JA1R1500 | JAE_DX07S016JA1R1500 | J5 |
| 1 | LOGO | ESP32_BOBOARD_5V_21.7mmx21.7mm | GR2 |
| 1 | C319052 SPST_SWITCH_SMD_4P,4.1x5.4mm | SW_DIP_SPSTx02_DSHP02TS-S | SW1 |
| 9 | 100UF 100uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2, C3, C4, C5, C6, C7, C8 +1 |
| 1 | 100NF 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C10 |
| 4 | 10K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2, R3, R4 |
| 2 | 5K1 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R5, R6 |
| 2 | C328378 CREZ08051% | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R7, R8 |
ESP32-BOBOARD-5V design files
The KiCad project lives in the gianlucarenzi/ESP32-BOBOARD-5V repository on GitHub; these links point at the commit this page was built from.
ESP32-BOBOARD-5V: common questions
What microcontroller does the ESP32-BOBOARD-5V use?
The ESP32-BOBOARD-5V is built around the LOGO, from the ESP32 family.
How big is the ESP32-BOBOARD-5V PCB?
The ESP32-BOBOARD-5V measures 100 × 60 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the ESP32-BOBOARD-5V?
28 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ESP32-BOBOARD-5V design files?
From the gianlucarenzi/ESP32-BOBOARD-5V repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the ESP32-BOBOARD-5V design in my own project?
Yes, under the terms of its GPL-3.0 license, which gianlucarenzi chose for the repository.
Can I test firmware for the ESP32-BOBOARD-5V without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
