Adafruit QT Py ESP32-S3

gkuegler·undercabinet-lighting-ctrl·kicad/cablight-project/external part symbols, footprints & step files/Adafruit-QT-Py-ESP32-S3-PCB-main/Adafruit QT Py ESP32-S3.kicad_pcb

Adafruit QT Py ESP32-S3 PCB layout, top view — open source ESP32 board by gkuegler

About the Adafruit QT Py ESP32-S3 PCB

Adafruit QT Py ESP32-S3 is an open source ESP32 PCB design by gkuegler, published on GitHub. It is a 4-layer board measuring 17.8 × 20.7 mm, with 47 components from 28 distinct parts.

Its main chip is the BOOT0, from the ESP32 family. Other key parts include the AP2112K-3.3. By type, the board carries 20 capacitors, 5 resistors, 4 ICs, 4 crystals, 2 transistors and 2 jumpers.

It belongs with the iot & wireless, audio and dev boards & breakouts designs in this gallery.

From the project

PCB files for the Adafruit QT Py ESP32-S3 WiFi Dev Board.

PCB files for the Adafruit QT Py ESP32-S3 WiFi Dev Board.

Format is EagleCAD schematic and board layout * https://www.adafruit.com/product/5426

The ESP32-S3 has arrived in QT Py format - and what a great way to get started with this powerful new chip from Espressif! With dual 240 MHz cores, WiFi and BLE support, and native USB, this QT Py is great for powering your IoT projects.

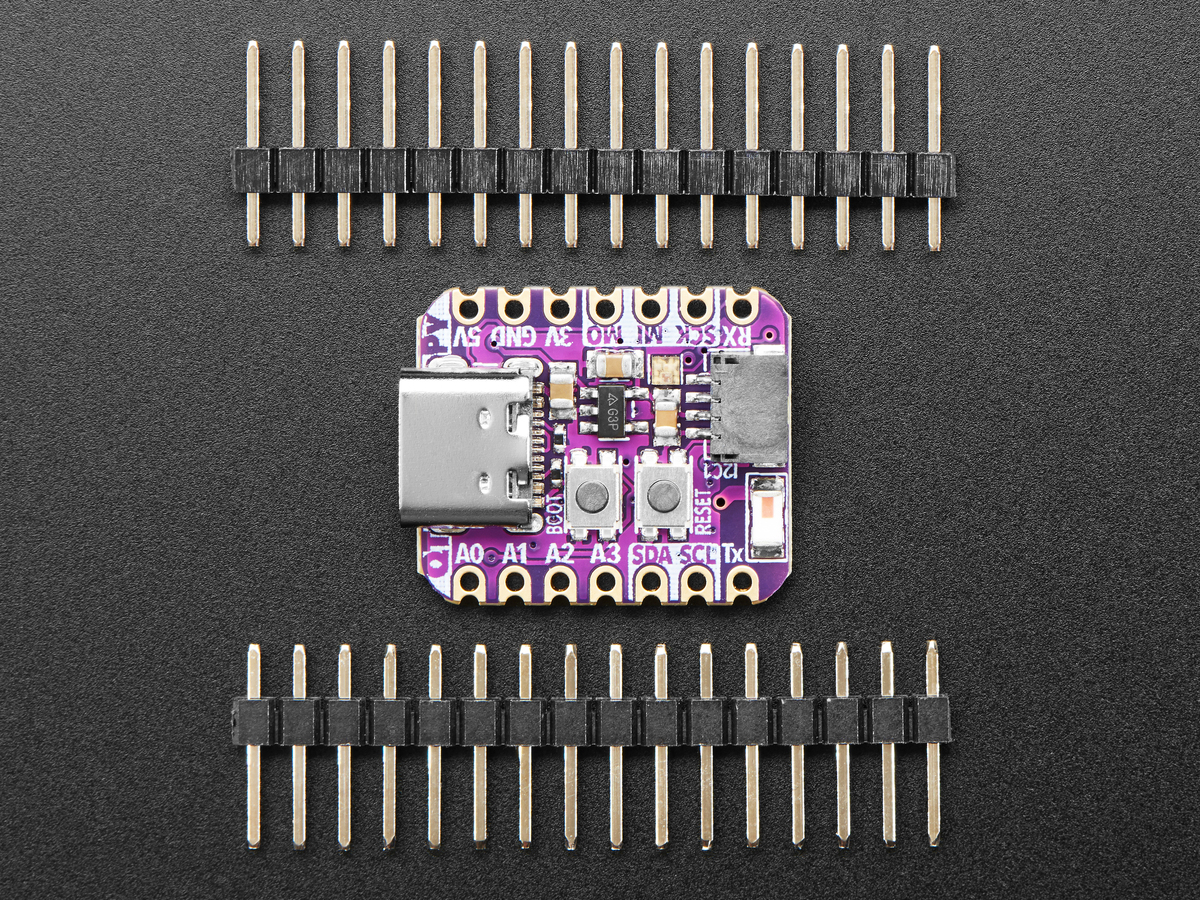

Adafruit QT Py ESP32-S3, from the project README
From the project README

Main components on the Adafruit QT Py ESP32-S3

AP2112K-3.3

Adafruit QT Py ESP32-S3 bill of materials (BOM)

47 components, 28 distinct parts.

QtyPartRefs
1
AP2112K-3.3
U1
1
—
U$7
1
—
U$11
1
—
U$12
1
BOOT0
Q1
1
reset
Q2
1
2.4 GHz Antenna
X1
1
ESP32-S3QFN54
X2
1
USB TYPE C
X6
1
40MHz
Y1
1
STEMMA_I2C_QTSKINNY
CONN1
1
—
GND0
2
—
JP1, JP3
2
TPB1,27
SWC1, SWC2
1
—
VBAT0
1
WS2812B_SK6805_1515
LED1
2
NSR0320
D1, D2
1
2nH
L1
1
0 ohm
L2
3
22uF
C1, C6, C8
Show 8 more
QtyPartRefs
7
1uF
C2, C3, C5, C13, C15, C19, C20
6
0.1uF
C4, C10, C11, C12, C14, C16
2
TBD
C7, C9
2
16pF
C17, C18
1
10K
R1
1
0
R3
2
5.1K
R5, R6
1
1Meg
R17

Adafruit QT Py ESP32-S3 design files

The KiCad project lives in the gkuegler/undercabinet-lighting-ctrl repository on GitHub; these links point at the commit this page was built from.

Adafruit QT Py ESP32-S3: common questions

What microcontroller does the Adafruit QT Py ESP32-S3 use?

The Adafruit QT Py ESP32-S3 is built around the BOOT0, from the ESP32 family.

How big is the Adafruit QT Py ESP32-S3 PCB?

The Adafruit QT Py ESP32-S3 measures 17.8 × 20.7 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Adafruit QT Py ESP32-S3?

47 components, from 28 distinct parts. The full bill of materials is listed on this page.

Where can I download the Adafruit QT Py ESP32-S3 design files?

From the gkuegler/undercabinet-lighting-ctrl repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Adafruit QT Py ESP32-S3 design in my own project?

The repository has no license, so all rights stay with gkuegler. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Adafruit QT Py ESP32-S3 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
