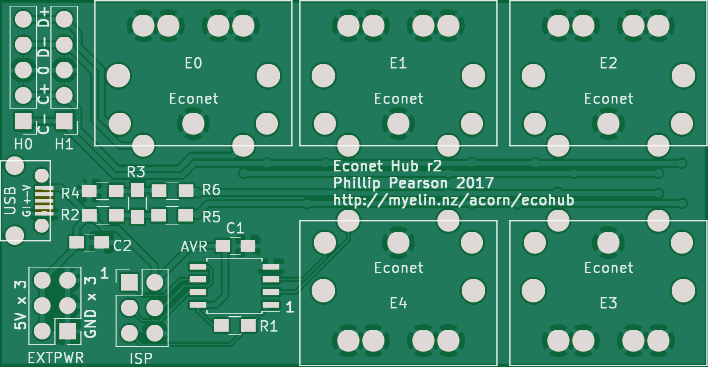

About the Econet hub PCB
Econet hub is an open source PCB design by google, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 70.7 × 36.6 mm, with 20 components from 11 distinct parts.
By type, the board carries 6 resistors and 2 capacitors.
It belongs with the retro computing designs in this gallery.
From the project
Phillip Pearson's retro hardware projects for the Acorn Electron
A simple board that provides an Econet clock and biasing, and a bunch of Econet sockets.
I haven't tested this, but https://stardot.org.uk/forums/viewtopic.php?f=3&t=15049, and it looks like they work well.
Revision 1 had a bug with the ATTINY85 footprint; it was too narrow, so to solder the chip on, I had to turn it into a J-lead package by bending its legs underneath.

Econet hub bill of materials (BOM)
20 components, 11 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 5 | Econet | din_5_econet_pcb_mount | E0, E1, E2, E3, E4 |
| 2 | Econet | Pin_Header_Straight_1x05_Pitch2.54mm | H0, H1 |
| 5 | — | via_single | staple_single1, staple_single2, staple_single3, staple_single4, staple_single5 |
| 1 | C28323 100n | C_0805_HandSoldering | C1 |
| 1 | C28323 10u | C_0805_HandSoldering | C2 |
| 1 | C17414 10k | R_0805_HandSoldering | R1 |
| 1 | C17513 1k | R_0805_HandSoldering | R2 |
| 1 | C17630 220R | R_0805_HandSoldering | R3 |
| 1 | C17673 1k | R_0805_HandSoldering | R4 |
| 1 | C17673 56R | R_0805_HandSoldering | R5 |
| 1 | C17520 56R | R_0805_HandSoldering | R6 |
