TWSUDiySynthKit PCB layout, top view — open source RP2040/RP2350 board by GreeniusGenius

About the TWSUDiySynthKit PCB

TWSUDiySynthKit is an open source RP2040/RP2350 PCB design by GreeniusGenius, published on GitHub. It is a 2-layer board measuring 198.4 × 65 mm, with 40 components from 23 distinct parts.

Its main chip is the SC1633, from the RP2040/RP2350 family. Other key parts include the NE556N. By type, the board carries 14 capacitors, 13 connectors, 11 resistors, 1 IC and 1 module.

It belongs with the dev boards & breakouts and audio designs in this gallery.

From the project

- This product is borne out of an original synthesiser kit built by the now bankrupt Tech Will Save Us company. - The solderless breadboard nature of it frustrated me, and the lack of room to add a microcontroller for MIDI functionality on the breadboard made it unusable for how

- This product is borne out of an original synthesiser kit built by the now bankrupt Tech Will Save Us company. - The solderless breadboard nature of it frustrated me, and the lack of room to add a microcontroller for MIDI functionality on the breadboard made it unusable for how I would wish to use it. - Then I got bored whilst designing it, and decided I'd turn it into a Pi Pico (2(W)) dev board too. - That way I can prototype all of my projects in a single multipurpose board. - It supports a Raspberry Pi standard hat. - It supports a Raspberry Pi Pico bonnet. - The second Pi you see in the…

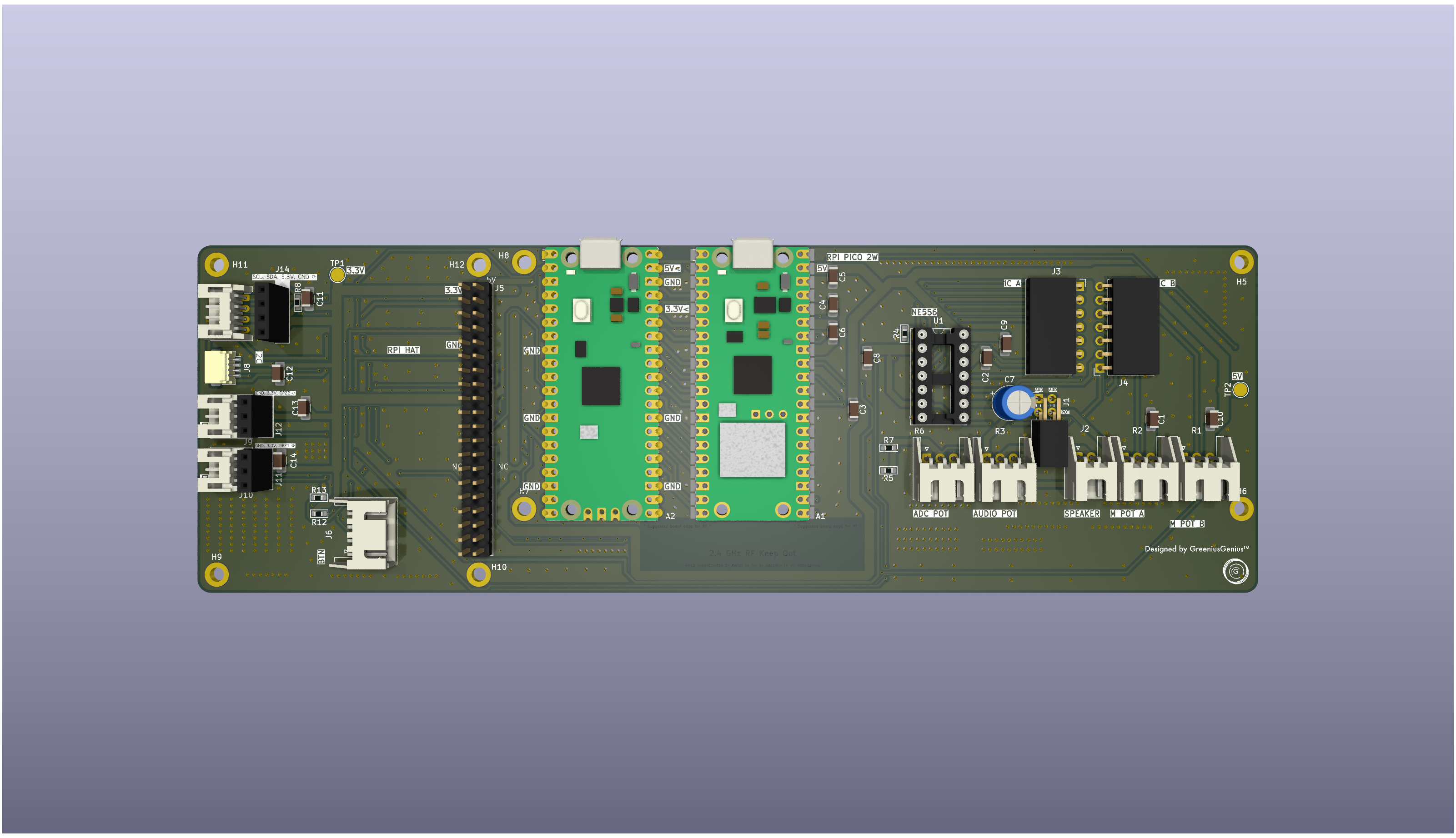

TWSUDiySynthKit, from the project README
From the project README

Main components on the TWSUDiySynthKit

NE556NSC1633

TWSUDiySynthKit bill of materials (BOM)

40 components, 23 distinct parts.

QtyPartRefs
1
NE556N
NE556
Texas Instruments
U1
1
SC1633
RaspberryPi_Pico_W
Raspberry Pi Foundation
A1
1
Conn_02x02_Counter_Clockwise
J1
1
S2B-XH-A(LF)(SN)
Conn_01x02
Japan Solderless Terminals
J2
2
Conn_01x07_Pin
J3, J4
1
Raspberry_Pi_2x20_PTH
J5
1
S4B-XH-A-1(LF)(SN)
Conn_01x04_Socket
Japan Solderless Terminals
J6
1
S4B-PH-K-S(LF)(SN)
Conn_01x04_Socket
Japan Solderless Terminals
J7
1
SM04B-GHMG-TB-(LF)(SN)
Conn_01x04_Socket
Japan Solderless Terminals
J8
2
S3B-PH-K-S(LF)(SN)
Conn_01x03_Socket
Japan Solderless Terminals Commercial
J9, J10
2
Conn_01x03_Socket
J11, J12
1
Conn_01x04_Socket
J14
8
CL31B104KBCNNND
0.1uF
Samsung Electro-Mechanics
C1, C3, C9, C10, C11, C12, C13, C14
2
06035C103KAT2A
10nF_0603_25V
AVX Corporation
C2, C8
3
0603YC104KAT2A
0.1uF_0603_16V
AVX Corporation
C4, C5, C6
1
ECE-A1HKS100B
10uf Electrolytic Capacitor
Panasonic
C7
2
S3B-XH-A-1(LF)(SN)
ECOSWX470KLIN
Japan Solderless Terminals
R1, R2
2
S3B-XH-A-1(LF)(SN)
ECO2K2LIN
Japan Solderless Terminals
R3, R6
2
RC0603FR-071KL
1k_0603
Yageo
R4, R7
1
RC0603FR-072KL
2k_0603
Yageo
R5
Show 3 more
QtyPartRefs
2
RC0603FR-0710KL
10k_0603
Yageo
R8, R9
1
RC0603FR-0768RL
68R_1210
Yageo
R12
1
RC0603FR-071KL
1k_1210
Yageo
R13

TWSUDiySynthKit design files

The KiCad project lives in the GreeniusGenius/TWSUDiySynthKit repository on GitHub; these links point at the commit this page was built from.

TWSUDiySynthKit: common questions

What microcontroller does the TWSUDiySynthKit use?

The TWSUDiySynthKit is built around the SC1633, from the RP2040/RP2350 family.

How big is the TWSUDiySynthKit PCB?

The TWSUDiySynthKit measures 198.4 × 65 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TWSUDiySynthKit?

40 components, from 23 distinct parts. The full bill of materials is listed on this page.

Where can I download the TWSUDiySynthKit design files?

From the GreeniusGenius/TWSUDiySynthKit repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the TWSUDiySynthKit design in my own project?

The repository has no license, so all rights stay with GreeniusGenius. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the TWSUDiySynthKit without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
