BosonFrameGrabber

gregdavill·boson-sd-hardware·hw/bosonFrameGrabber_1_03/bosonFrameGrabber.kicad_pcb

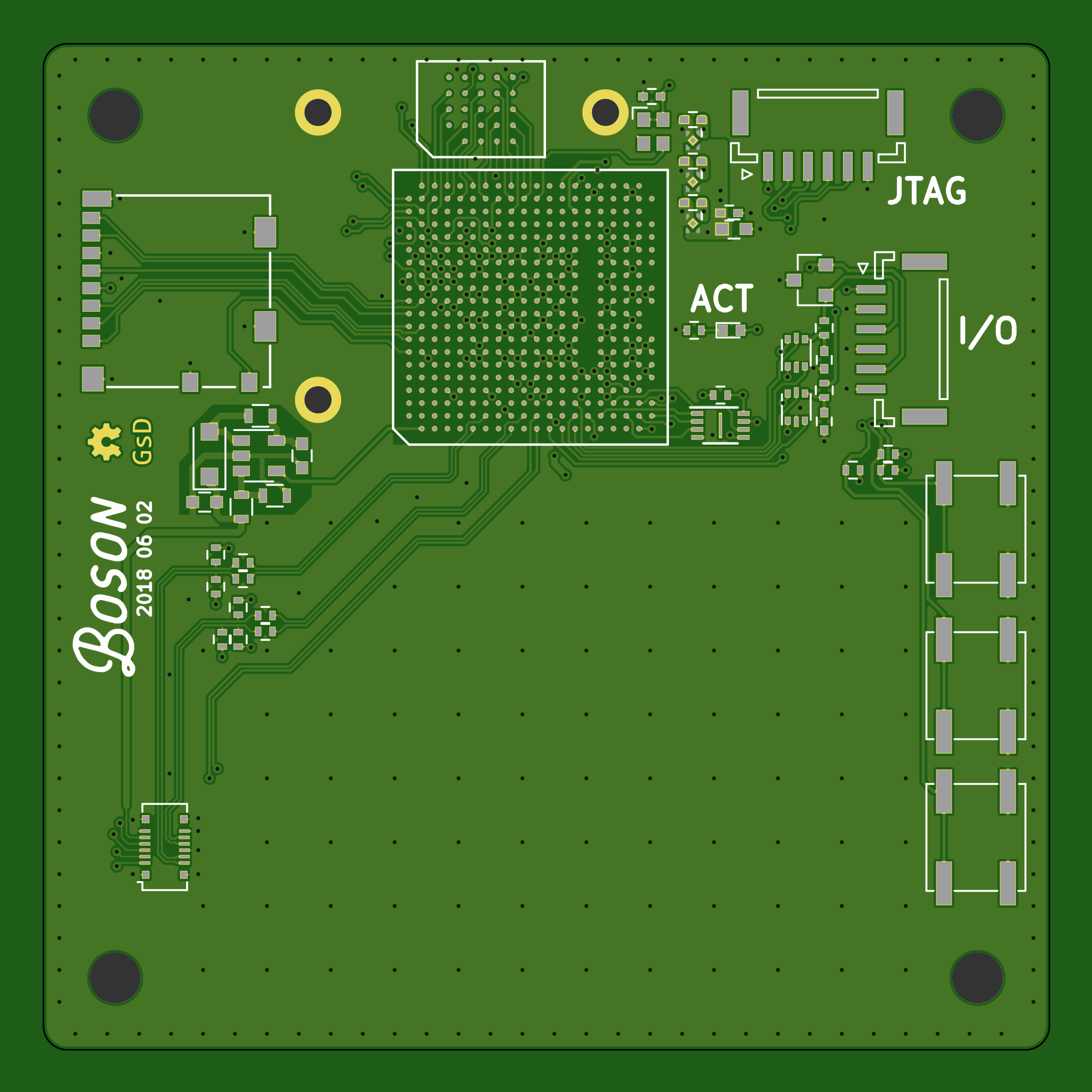

BosonFrameGrabber PCB layout, top view — open source FPGA board by gregdavill

About the BosonFrameGrabber PCB

BosonFrameGrabber is an open source FPGA PCB design by gregdavill, published on GitHub under the MIT license. It is a 4-layer board measuring 63 × 63 mm, with 64 components from 33 distinct parts.

Its main chip is the LFE5UM-25F-6MG285C, from the FPGA family. Other key parts include the TLV70725PDQNT, SN74LVC1T45DRLR, S27KS0641DPBHI020, Boson and AT25SF081-MAHD-T. By type, the board carries 24 capacitors, 18 resistors, 10 ICs, 4 connectors, 3 switches and 3 diodes.

From the project

Simple but Small Frame Grabber

Development BigBoard (Do not use! known errata)

Due to supply issues of the ECP5 in cs285 I developed this PCB to start work on firmware. Despite many errata the board was functional (after mods) and did aid in fw development.

ECP5 8MB/16MB HyperRAM: high density, low pin count. 1MB QSPI Memory (XSON 3x2 package) MicroSD socket MEMs Oscillator JST GH SM06 locking Data/Power connector JTAG on GH SM06 2x 5V tolerant I/Os on connector 1x LED 240x240 IPS LCD. (used on NANO v6, MIPI interface)

BosonFrameGrabber, from the project README
From the project README

Main components on the BosonFrameGrabber

TLV70725PDQNTSN74LVC1T45DRLRLFE5UM-25F-6MG285CS27KS0641DPBHI020BosonAT25SF081-MAHD-TTLV71718PDQNRTLV73311PDQNTAP3012

BosonFrameGrabber bill of materials (BOM)

64 components, 33 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TLV70725PDQNT
TLV733P
U1
2
SN74LVC1T45DRLR
SN74LVC1T45
U2, U7
1
LFE5UM-25F-6MG285C
ECP5U25
U3
1
S27KS0641DPBHI020
S27KS0641
U4
1
Boson
U5
1
AT25SF081-MAHD-T
AT25SF081
U6
1
TLV71718PDQNR
TLV733P
U8
1
TLV73311PDQNT
TLV733P
U9
1
AP3012
U10
1
SIT8008BI-71-18E-24.000000G
ASDMB
X1
2
JST GH Series
J1, J2
1
1040310811
MicroSD
J4
1
SlimStack_12P
J5
3
SW_Push
SW1, SW2, SW3
1
APHHS1005SYCK
LED
D1
1
D_TVS_X2_AAC
D_TVS_x2_AAC
D2
1
D_Schottky_ALT
D3
1
L
L1
2
C0402C101J3GACTU
100pF
C1, C2
3
CGB2A1X5R1E105K033BC
1uF
C3, C4, C8
Show 13 more
QtyPartRefs
14
CL05B104KP5NNNC
100nF
C5, C9, C10, C11, C12, C14, C15, C16 +6
3
C1608X5R1A106K080AC
10uF
C6, C7, C13
1
C
C23
1
1uF
C24
2
RT0402FRE07100RL
100R
R1, R2
1
ERA-2AED103X
R
R3
1
ERA-2AED103X
10k
R4
1
R
R5
1
5.1K
R6
4
220R
R7, R8, R12, R13
4
47R
R9, R10, R14, R15
1
1K
R11
3
R
R16, R17, R18

BosonFrameGrabber design files

The KiCad project lives in the gregdavill/boson-sd-hardware repository on GitHub; these links point at the commit this page was built from.

BosonFrameGrabber: common questions

What microcontroller does the BosonFrameGrabber use?

The BosonFrameGrabber is built around the LFE5UM-25F-6MG285C, from the FPGA family.

How big is the BosonFrameGrabber PCB?

The BosonFrameGrabber measures 63 × 63 mm, has 4 copper layers and is 1.2 mm thick.

How many components are on the BosonFrameGrabber?

64 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the BosonFrameGrabber design files?

From the gregdavill/boson-sd-hardware repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the BosonFrameGrabber design in my own project?

Yes, under the terms of its MIT license, which gregdavill chose for the repository.

Can I test firmware for the BosonFrameGrabber without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
