CrushedICE PCB layout, top view — open source Microchip SAM board by gregdavill

About the CrushedICE PCB

CrushedICE is an open source Microchip SAM PCB design by gregdavill, published on GitHub under the MIT license. It is a 4-layer board measuring 100 × 50 mm, with 68 components from 43 distinct parts.

Its main chip is the ATSAMD51G19A, from the Microchip SAM family. Other key parts include the TLV70725PDQNT, SN74LVC1T45DRLR, S27KS0641DPBHI020, AT25SF081-MAHD-T and TLV71718PDQNR. By type, the board carries 31 capacitors, 13 resistors, 8 ICs, 7 connectors, 6 diodes and 1 crystal.

From the project

Simple but Small Frame Grabber

Project Stage: VERY Early Development !!! Note this design has an incorrect HyperRam footprint !!!

(Initially a project called: CrushedICE)

A FPGA based camera interface board. This PCB was developed before the bosonFrameGrabber, and has a vastly different architecture. It uses an ICE5LP4K, HyperRAM and a QSPI bridge to a SAMD51.

FPGA+RAM will act as a FIFO, connect to SAMD51 via QSPI. To read out a frame when required. SAMD51 has a SDMMC module so it handles the writing to an SD card.

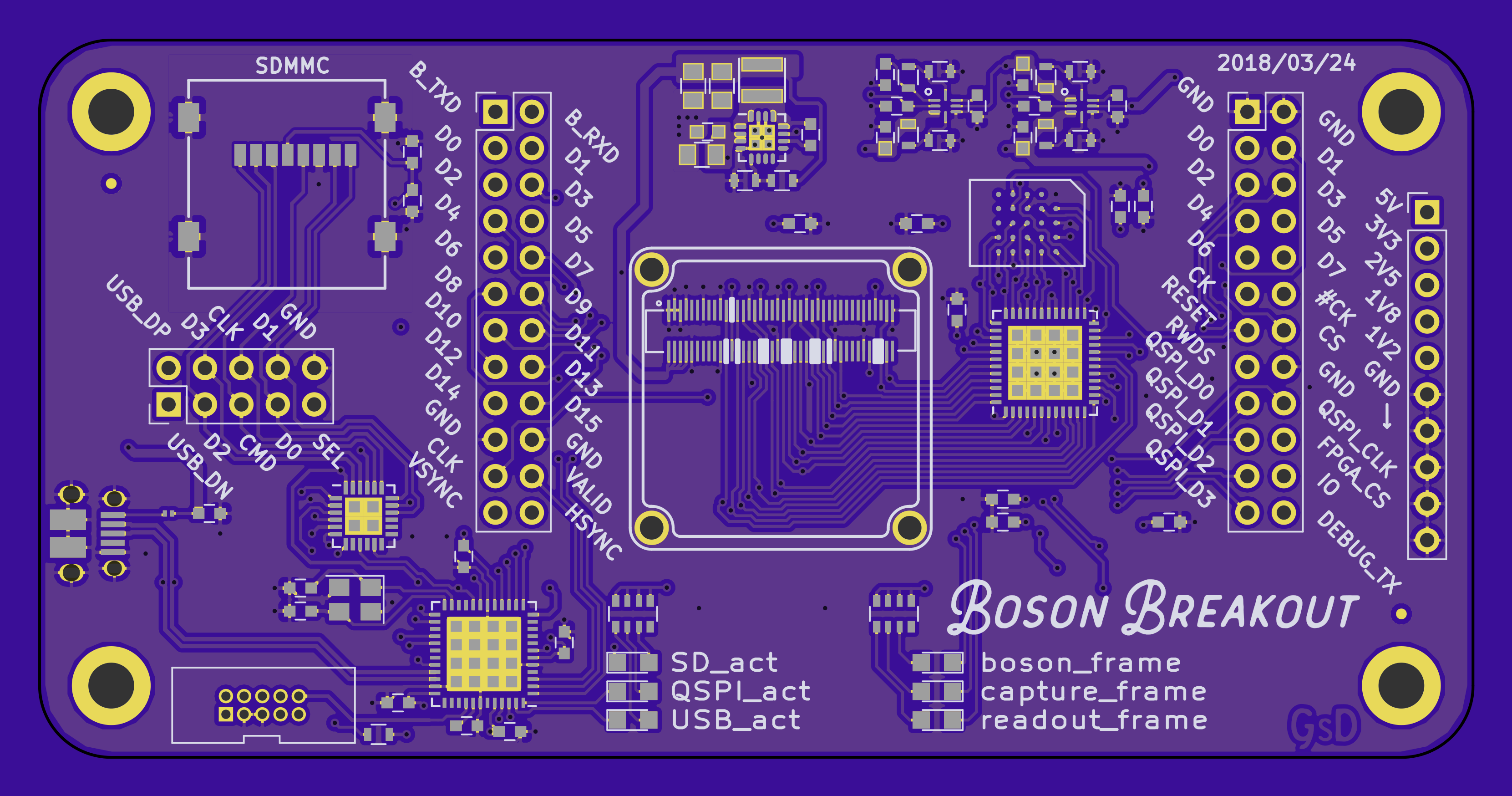

CrushedICE, from the project README
From the project README

Main components on the CrushedICE

TLV70725PDQNTSN74LVC1T45DRLRS27KS0641DPBHI020ATSAMD51G19AAT25SF081-MAHD-TTLV71718PDQNRTXS02612

CrushedICE bill of materials (BOM)

68 components, 43 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TLV70725PDQNT
ICE5LP4K-SG48
U1
1
SN74LVC1T45DRLR
S27KS0641
U2
1
S27KS0641DPBHI020
Boson
U4
1
ATSAMD51G19A
U5
1
AT25SF081-MAHD-T
SC560A
U6
1
SN74LVC1T45DRLR
SC560A
U7
1
TLV71718PDQNR
TS30011
U8
1
TXS02612
U10
1
16MHz
Y1
2
Conn_02x12_Odd_Even
J1, J2
1
MicroSD
J3
1
1040310811
USB_OTG
J4
1
Conn_02x05_Odd_Even
J5
1
cortex SWD
J6
1
Conn_01x10
J7
1
Jumper_NC_Small
JP1
1
APHHS1005SYCK
led green
D1
1
D_TVS_X2_AAC
led green
D2
4
led green
D3, D4, D5, D6
1
4u7
L1
Show 23 more
QtyPartRefs
1
C0402C101J3GACTU
10uF
C1
1
C0402C101J3GACTU
100n
C2
1
CGB2A1X5R1E105K033BC
100n
C3
1
CGB2A1X5R1E105K033BC
22nF
C4
1
CL05B104KP5NNNC
22nF
C5
1
C1608X5R1A106K080AC
22nF
C6
1
C1608X5R1A106K080AC
22uF
C7
1
CGB2A1X5R1E105K033BC
22uF
C8
5
CL05B104KP5NNNC
1uF
C9, C10, C11, C12, C14
1
C1608X5R1A106K080AC
100n
C13
1
CL05B104KP5NNNC
10n
C15
2
CL05B104KP5NNNC
26pF
C16, C17
5
CL05B104KP5NNNC
100n
C18, C19, C20, C21, C22
9
100n
C23, C24, C25, C26, C27, C28, C29, C30 +1
1
RT0402FRE07100RL
2.0K
R2
1
ERA-2AED103X
10K
R3
1
ERA-2AED103X
15K
R4
4
10K
R5, R7, R9, R11
1
17.8K
R6
1
8.0K
R8
1
23K
R10
1
1K
R12
2
R_Pack04
RN1, RN2

CrushedICE design files

The KiCad project lives in the gregdavill/boson-sd-hardware repository on GitHub; these links point at the commit this page was built from.

CrushedICE: common questions

What microcontroller does the CrushedICE use?

The CrushedICE is built around the ATSAMD51G19A, from the Microchip SAM family.

How big is the CrushedICE PCB?

The CrushedICE measures 100 × 50 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the CrushedICE?

68 components, from 43 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the CrushedICE design files?

From the gregdavill/boson-sd-hardware repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the CrushedICE design in my own project?

Yes, under the terms of its MIT license, which gregdavill chose for the repository.
