Electra-100x100mm-2x1-panel
About the Electra-100x100mm-2x1-panel PCB
Electra-100x100mm-2x1-panel is an open source ESP8266 PCB design by Grehasopt, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 100 × 100 mm, with 59 components from 40 distinct parts.
Its main chip is the ESP-12F, from the ESP8266 family. Other key parts include the AMS1117-5.0 and AMS1117-3.3. By type, the board carries 19 resistors, 13 connectors, 10 diodes, 7 capacitors, 3 ICs and 2 transistors.

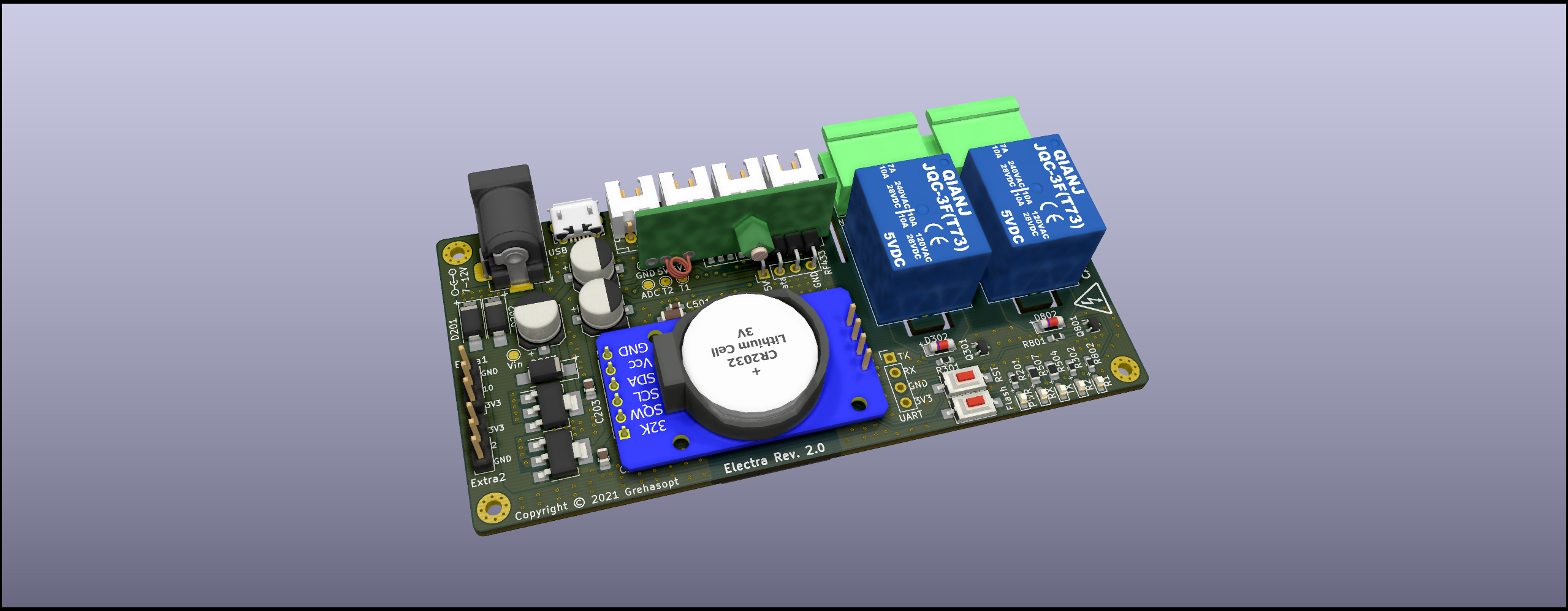

From the project
Remote Relays Board
Main components on the Electra-100x100mm-2x1-panel
Electra-100x100mm-2x1-panel bill of materials (BOM)
59 components, 40 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AMS1117-5.0 | SOT-223-3_TabPin2 | U201 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U202 |
| 1 | ESP-12F | ESP-12E | U501 |
| 2 | Q_NPN_EBC | SOT-323_SC-70 | Q301, Q801 |
| 1 | Extra1 | PinHeader_1x03_P2.54mm_Vertical | J101 |
| 1 | RTC | PinHeader_1x06_P2.54mm_Vertical | J102 |
| 1 | Extra2 | PinHeader_1x03_P2.54mm_Vertical | J103 |
| 1 | UART | PinHeader_1x04_P2.54mm_Vertical | J104 |
| 1 | USB | USB_Micro-B_Molex-105017-0001 | J201 |
| 1 | 7-12V | BarrelJack_Horizontal | J202 |
| 1 | Relay 2/D | TerminalBlock_bornier-3_P5.08mm | J301 |
| 1 | S1/U | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J401 |
| 1 | S2/D | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J402 |
| 1 | A | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J601 |
| 1 | A2 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J602 |
| 1 | RF433 | PinHeader_1x04_P2.54mm_Vertical | J701 |
| 1 | Relay 1/U | TerminalBlock_bornier-3_P5.08mm | J801 |
| 2 | FINDER-36.11 | Relay_SPDT_Finder_36.11 | K301, K801 |
| 1 | Flash | SW_SPST_CK_RS282G05A3 | SW501 |
| 1 | RST | SW_SPST_CK_RS282G05A3 | SW502 |
Show 20 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | VAL** | mouse-bite-3mm-slot | mouse-bite-3mm-slot |
| 3 | 1A | D_SMA_Handsoldering | D201, D202, D203 |
| 1 | PWR | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D204 |
| 1 | R2 | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D301 |
| 2 | 200mA | D_MiniMELF | D302, D802 |
| 1 | TX | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D501 |
| 1 | RX | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D502 |
| 1 | R1 | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D801 |
| 3 | 100uF | CP_Elec_6.3x5.4 | C201, C204, C205 |
| 2 | 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C202, C203 |
| 1 | 0.1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C501 |
| 1 | 47uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C502 |
| 1 | 82 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R201 |
| 4 | 1K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R301, R603, R701, R801 |
| 2 | 68 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R302, R802 |
| 7 | 10K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R401, R402, R501, R502, R503, R505, R506 |
| 2 | 15 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R504, R507 |
| 1 | 3.3K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R601 |
| 1 | 7.5K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R602 |
| 1 | 2K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R702 |
Electra-100x100mm-2x1-panel design files
The KiCad project lives in the Grehasopt/Electra-pcb repository on GitHub; these links point at the commit this page was built from.
Electra-100x100mm-2x1-panel: common questions
What microcontroller does the Electra-100x100mm-2x1-panel use?
The Electra-100x100mm-2x1-panel is built around the ESP-12F, from the ESP8266 family.
How big is the Electra-100x100mm-2x1-panel PCB?
The Electra-100x100mm-2x1-panel measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Electra-100x100mm-2x1-panel?
59 components, from 40 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Electra-100x100mm-2x1-panel design files?
From the Grehasopt/Electra-pcb repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Electra-100x100mm-2x1-panel design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which Grehasopt chose for the repository.
Can I test firmware for the Electra-100x100mm-2x1-panel without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
