Vscp din wireless esp32-flat

grodansparadis·vscp-din-wireless-esp32-flat

Vscp din wireless esp32-flat PCB layout, top view — open source ESP32 board by grodansparadis

About the Vscp din wireless esp32-flat PCB

Vscp din wireless esp32-flat is an open source ESP32 PCB design by grodansparadis, published on GitHub under the MIT license. It is a 2-layer board measuring 42 × 72 mm, with 20 components from 12 distinct parts.

Its main chip is the ESP32-WROOM-32D, from the ESP32 family. Other key parts include the R-78B3.3-2.0. By type, the board carries 8 resistors, 6 capacitors, 2 ICs, 2 connectors and 2 diodes.

It belongs with the iot & wireless designs in this gallery.

From the project

ESP32 based VSCP controller in flat DIN package

Copyright 2021-2025 © Åke Hedman, (Grodans Paradis AB)[https://www.grodansparadis.com]

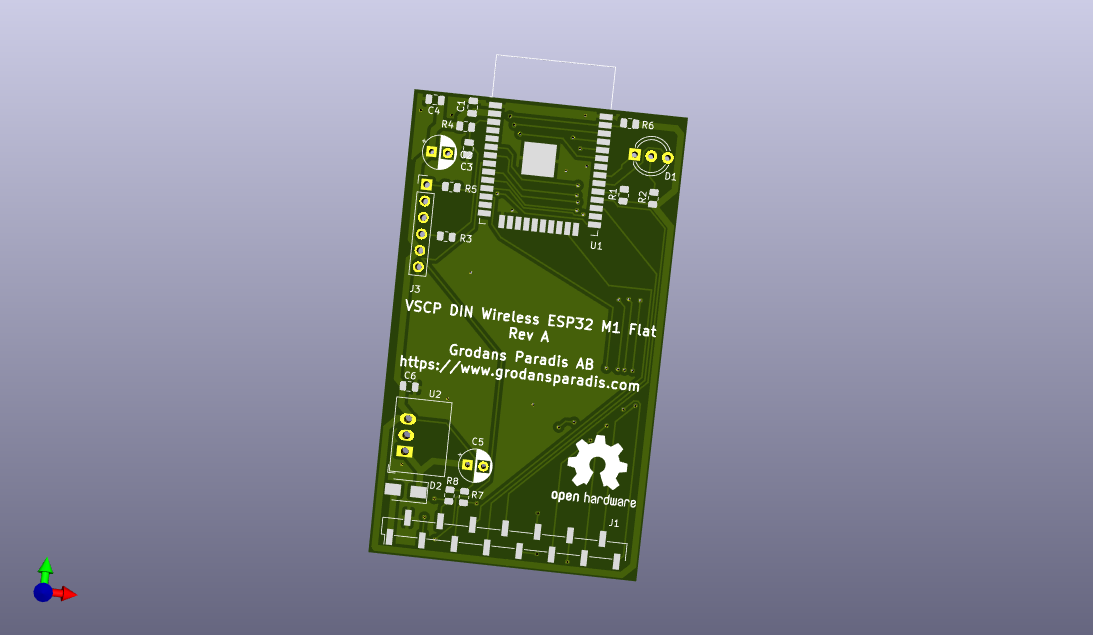

Vscp din wireless esp32-flat, from the project README
From the project README

Main components on the Vscp din wireless esp32-flat

ESP32-WROOM-32DR-78B3.3-2.0

Vscp din wireless esp32-flat bill of materials (BOM)

20 components, 12 distinct parts.

QtyPartRefs
1
ESP32-WROOM-32D
U1
1
R-78B3.3-2.0
U2
1
Screw_Terminal_01x15
J1
1
Conn_01x06
J3
1
LED_Dual_CAC
D1
1
US1D
D2
4
100nF
C1, C3, C4, C6
1
10uF
C2
1
100uF
C5
3
10K
R1, R4, R6
3
470
R2, R3, R5
2
4k7
R7, R8

Vscp din wireless esp32-flat design files

The KiCad project lives in the grodansparadis/vscp-din-wireless-esp32-flat repository on GitHub; these links point at the commit this page was built from.

Vscp din wireless esp32-flat: common questions

What microcontroller does the Vscp din wireless esp32-flat use?

The Vscp din wireless esp32-flat is built around the ESP32-WROOM-32D, from the ESP32 family.

How big is the Vscp din wireless esp32-flat PCB?

The Vscp din wireless esp32-flat measures 42 × 72 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Vscp din wireless esp32-flat?

20 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Vscp din wireless esp32-flat design files?

From the grodansparadis/vscp-din-wireless-esp32-flat repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Vscp din wireless esp32-flat design in my own project?

Yes, under the terms of its MIT license, which grodansparadis chose for the repository.

Can I test firmware for the Vscp din wireless esp32-flat without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
