Artsyfartsy PCB layout, top view — open source Nordic nRF board by GroooveBob

About the Artsyfartsy PCB

Artsyfartsy is an open source Nordic nRF PCB design by GroooveBob, published on GitHub under the MIT license. It is a 2-layer board measuring 103.4 × 58.3 mm, with 18 components from 7 distinct parts.

Its main chip is the SeeeduinoXIAO, from the Nordic nRF family. By type, the board carries 11 switches, 4 diodes, 1 IC and 1 connector.

It belongs with the keyboards designs in this gallery.

From the project

ergo artsey keyboard

Keys and the encoder are working the rest is still a supprise

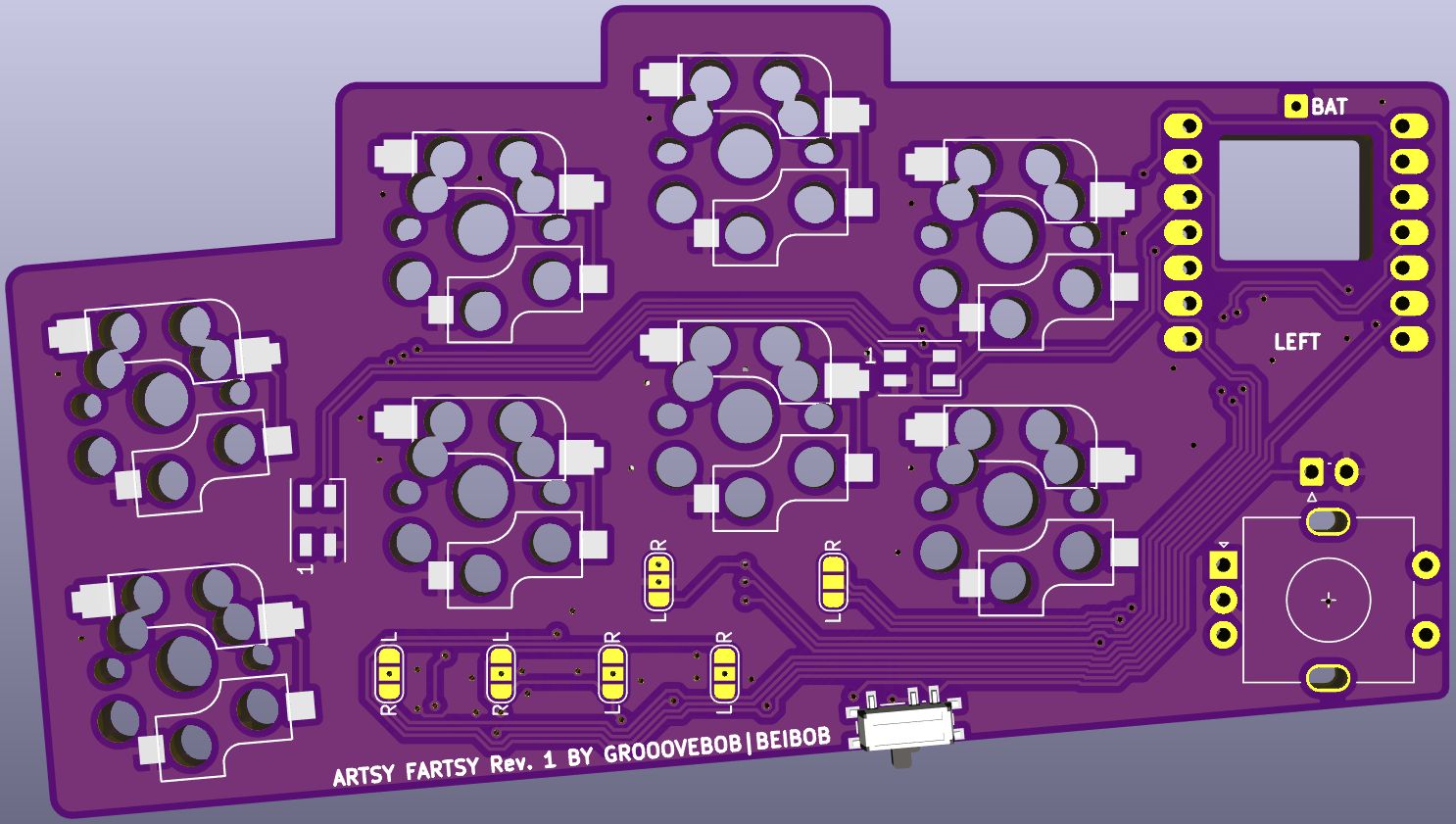

Artsyfartsy, from the project README
From the project README

Main components on the Artsyfartsy

SeeeduinoXIAO

Artsyfartsy bill of materials (BOM)

18 components, 7 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SeeeduinoXIAO
U1
1
CONN_01X02_MALE
Conn_01x02_Male
J1
1
MountingHole_Pad
H1
8
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8
1
RotaryEncoder
SW9
2
SW_Push_SPDT
SW11, SW12
4
SK6812MINI
D1, D2, D3, D4

Artsyfartsy design files

The KiCad project lives in the GroooveBob/artsyfartsy repository on GitHub; these links point at the commit this page was built from.

Artsyfartsy: common questions

What microcontroller does the Artsyfartsy use?

The Artsyfartsy is built around the SeeeduinoXIAO, from the Nordic nRF family.

How big is the Artsyfartsy PCB?

The Artsyfartsy measures 103.4 × 58.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Artsyfartsy?

18 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Artsyfartsy design files?

From the GroooveBob/artsyfartsy repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Artsyfartsy design in my own project?

Yes, under the terms of its MIT license, which GroooveBob chose for the repository.

Can I test firmware for the Artsyfartsy without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
