MAX30102 Optical Sensor Board

Habib-creater·MAX30102_Optical_Sensor_Board·hardware/kicad/max30102_pcb.kicad_pcb

MAX30102 Optical Sensor Board layout, top view — open source board by Habib-creater
Simulate this board

About the MAX30102 Optical Sensor Board

MAX30102 Optical Sensor Board is an open source PCB design by Habib-creater, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 26.3 × 18 mm, with 14 components from 10 distinct parts.

Other key parts include the AP2112K-3.3TRG1, TLV70018DDCR and MAX30102EFD+T. By type, the board carries 6 capacitors, 3 ICs, 3 resistors, 1 connector and 1 diode.

It belongs with the sensors designs in this gallery.

From the project

MAX30102-based optical sensor board designed for embedded hardware development.

The MAX30102 Optical Sensor Board is a compact 2-layer PCB designed around the MAX30102 sensor.

The board provides the MAX30102 with dedicated supply regulation, I²C connectivity, interrupt access, and a 5-pin external interface.

The complete hardware design package is included in this repository, covering the native KiCad project, schematic, PCB layout, BOM, Gerber and drill manufacturing files, pick-and-place data, and board documentation.

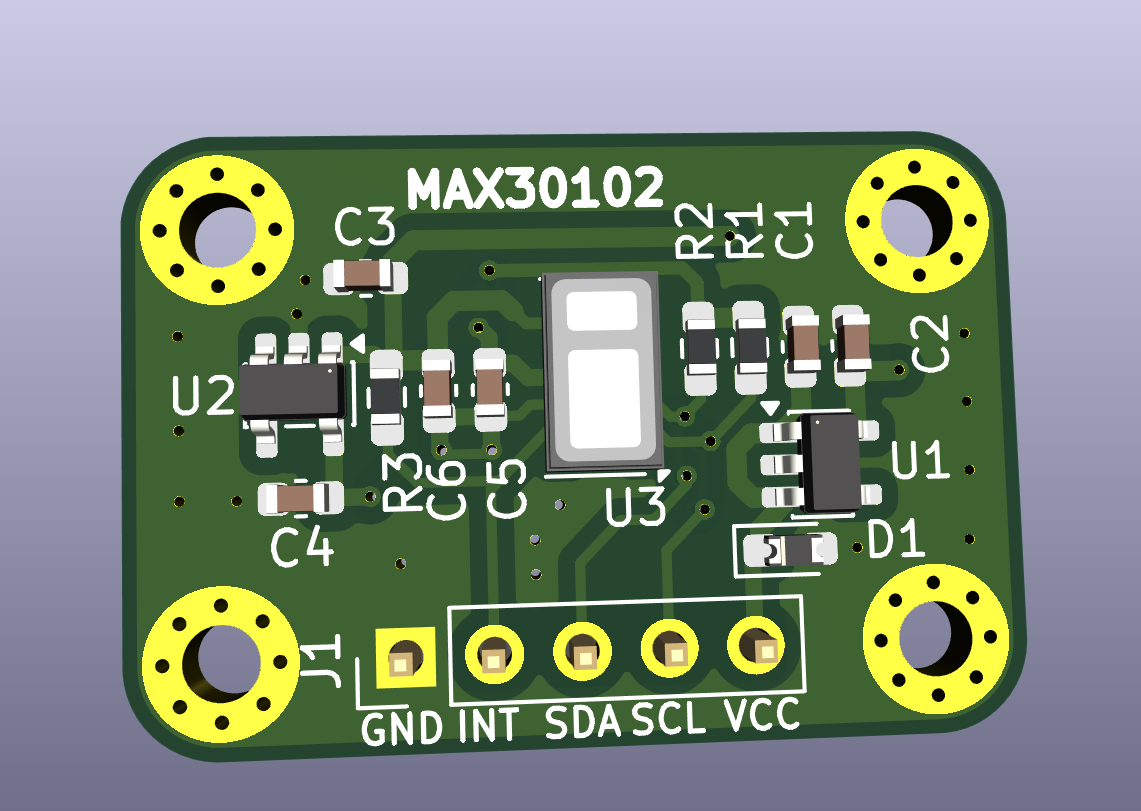

MAX30102 Optical Sensor Board, from the project README
From the project README

Main components on the MAX30102 Optical Sensor Board

AP2112K-3.3TRG1TLV70018DDCRMAX30102EFD+T

MAX30102 Optical Sensor Board bill of materials (BOM)

14 components, 10 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AP2112K-3.3TRG1
AP2112K-3.3
Diodes Incorporated
U1
1
TLV70018DDCR
TLV70018_SOT23-5
Texas Instruments
U2
1
MAX30102EFD+T
MAX30102
Analog Devices Inc./Maxim Integrated
U3
1
TS-105-G-A
Conn_01x05_Pin
Samtec Inc.
J1
1
GG0603052R542P
SMAJ5.0A
KYOCERA AVX
D1
2
CL10X106MO8NRWC
10u
Samsung Electro-Mechanics
C1, C2
1
CGA3E1X7R1C105K080DC
1u
TDK
C3
1
CL10B225KP8NFNC
2.2u
Samsung Electro-Mechanics
C4
2
CL10B104KO8NNNC
0.1u
Samsung Electro-Mechanics
C5, C6
3
RC0603FR-074K7L
4.7K
YAGEO
R1, R2, R3

MAX30102 Optical Sensor Board design files

The KiCad project lives in the Habib-creater/MAX30102_Optical_Sensor_Board repository on GitHub; these links point at the commit this page was built from.

MAX30102 Optical Sensor Board: common questions

How big is the MAX30102 Optical Sensor Board?

The MAX30102 Optical Sensor Board measures 26.3 × 18 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MAX30102 Optical Sensor Board?

14 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MAX30102 Optical Sensor Board design files?

From the Habib-creater/MAX30102_Optical_Sensor_Board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the MAX30102 Optical Sensor Board design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which Habib-creater chose for the repository.
