Power Integrations interface
paltatech·VESC-controller·adaptor boards/power_integrations_2SP0115T2A/pcb_design/Power_Integrations_interface.kicad_pcb
About the Power Integrations interface PCB
Power Integrations interface is an open source PCB design by paltatech, published on GitHub. It is a 2-layer board measuring 160 × 90 mm, with 908 components from 21 distinct parts.
Other key parts include the LM1117IMP-v.v, SN6501DBV, AMC1301 and TPS76350. By type, the board carries 33 capacitors, 20 resistors, 12 connectors, 9 ICs, 4 diodes and 2 transformers.
It belongs with the robotics & motion and sensors designs in this gallery.

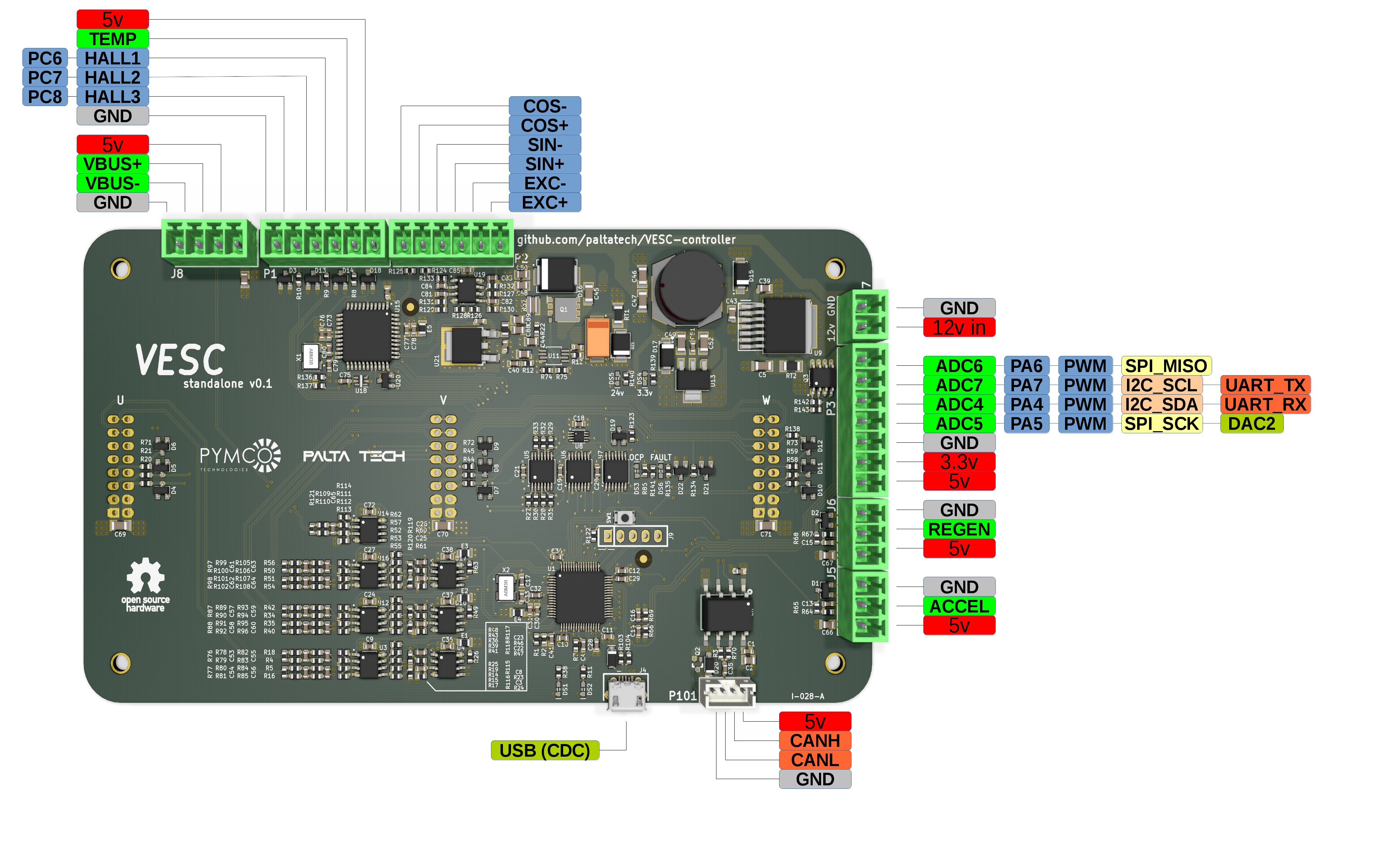

From the project
Compatible with VESC firmware and software tools Embedded security features (overcurrent protection, pwm overlap elimination, etc)
Compatible with VESC firmware and software tools Embedded security features (overcurrent protection, pwm overlap elimination, etc)
Made open source with KiCAD, an open source EDA tool.
An example of system assembly is also included in this repository
First you need to flash the VESC bootloader. To do so, connect a STLinkv2 to connector J9. In a Linux machine open a terminal and clone the bootloader repository:

Main components on the Power Integrations interface
Power Integrations interface bill of materials (BOM)
908 components, 21 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM1117IMP-v.v | SOT-223 | U1 |
| 2 | SN6501DBV | SOT-23-5 | U2, U5 |
| 4 | AMC1301 | SOIC127P1032X265-8 | U3, U6, U9, U12 |
| 2 | TPS76350 | SOT-23-5 | U4, U7 |
| 1 | GATE_DRIVER_CONN_U | CONN-100MIL-M-2x8 | J1 |
| 1 | GATE_DRIVER_CONN_V | CONN-100MIL-M-2x8 | J2 |
| 1 | GATE_DRIVER_CONN_W | CONN-100MIL-M-2x8 | J3 |
| 1 | VBUS | b4b-ph-kl | J4 |
| 1 | CONN-100MIL-F-1x2 | mstba_2,5%2f2-g-5,08 | J5 |
| 1 | Phoenix 1757268 5.08mm | mstba_2,5%2f4-g-5,08 | J6 |
| 3 | current sensor | b4b-ph-kl | J8, J9, J10 |
| 3 | 2SP0115T_conector | CONN-100MIL-F-2x10 | P1, P2, P3 |
| 2 | TRANS-2CT | WURTH-760390014 | T1, T2 |
| 828 | AUTO_VIA | VIA_MATRIX | V1_2, V1_3, V1_4, V1_5, V1_6, V1_7, V1_8, V1_9 +820 |
| 4 | MBR0520 | SOD-123 | D1, D2, D3, D4 |
| 6 | 22uF | CAPC2012X70 | C1, C4, C10, C16, C19, C25 |
| 17 | 100nF | CAPC1608X55 | C2, C3, C5, C6, C7, C9, C11, C13 +9 |
| 6 | 2.2uF | CAPC1608X55 | C8, C14, C17, C23, C32, C41 |
| 4 | 330pF | CAPC1608X55 | C12, C21, C30, C39 |
| 12 | 500k | RESC3216X60 | R1, R3, R6, R8, R11, R13, R16, R18 +4 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 8 | 1k | RESC1608X50 | R4, R5, R9, R10, R14, R15, R19, R20 |
Power Integrations interface design files
The KiCad project lives in the paltatech/VESC-controller repository on GitHub; these links point at the commit this page was built from.
Power Integrations interface: common questions
How big is the Power Integrations interface PCB?
The Power Integrations interface measures 160 × 90 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Power Integrations interface?
908 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Power Integrations interface design files?
From the paltatech/VESC-controller repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Power Integrations interface design in my own project?
The repository has no license, so all rights stay with paltatech. Use it as a reference, and ask the author before reusing the design.
