About the RippleCharger v1.0 PCB

RippleCharger v1.0 is an open source PCB design by HabonRoof, published on GitHub. It is a 2-layer board measuring 190.3 × 195.3 mm, with 118 components from 46 distinct parts.

Other key parts include the L7805, LM358, LAUNCHXL-F280049C, INA282 and LM317_TO-263. By type, the board carries 43 resistors, 19 diodes, 13 capacitors, 9 ICs, 7 connectors and 6 transistors.

It belongs with the power & battery and test & measurement designs in this gallery, and the repository also holds 1 earlier revision of it.

From the project

Sinusoidal Charging for Li-ion Battery

The purpose of this thesis is to develop a sinusoidal charger that can track the optimized frequency of Li-ion batteries. In this study, the optimized AC impedance frequency tracking is firstly carried out for various types of lithium-ion batteries with different aging degrees to achieve the goal of shortening the charging time and increasing the charging efficiency. The digital control core of the charger developed in this thesis uses the F280049C digital signal controller (DSC) produced by Texas Instruments and adopts the Powell algorithm to quickly search for the best sinusoidal charging…

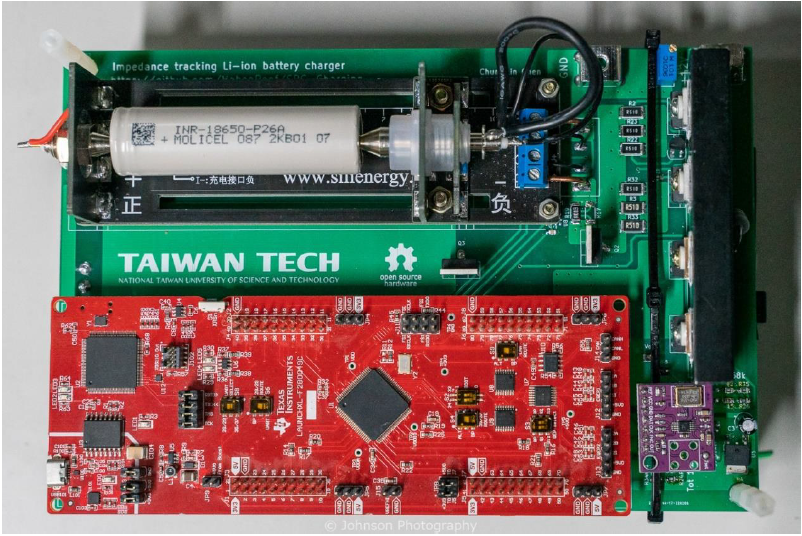

RippleCharger v1.0, from the project README
From the project README

Main components on the RippleCharger v1.0

L7805LM358LAUNCHXL-F280049CINA282LM317_TO-263

RippleCharger v1.0 bill of materials (BOM)

118 components, 46 distinct parts.

QtyPartRefs
1
L7805
U1
5
LM358
U2, U3, U4, U5, U6
1
LAUNCHXL-F280049C
U7
1
INA282
U8
1
LM317_TO-263
U9
5
2N3904
Q1, Q2, Q4, Q5, Q6
1
TIP41C
Q3
1
Screw_Terminal_01x02
J1
1
AD9833
J2
1
UART1
J3
1
UART2
J4
1
bat+
J5
1
bat-
J6
1
Load
J7
1
18650-holder-dual
B1
1
100n
Cs1
1
EISport
E1
1
Heatsink
HS1
1
Mode
JP1
2
20k
RV1, RV3
Show 26 more
QtyPartRefs
3
10k
RV2, RV4, RV5
1
100k
RV6
1
500
RV7
4
RY5W-K
RY1, RY2, RY3, RY4
1
SW_SPDT
SW1
1
ac_wave
TP1
1
asymm
TP2
1
CV
TP3
2
LED
D1, D16
13
1N4148
D2, D3, D4, D5, D7, D8, D9, D10 +5
4
LED
D6, D13, D14, D19
1
Ferrite_Bead_Small
FB1
1
0.33u
C1
2
0.1u
C2, C3
7
100n
C4, C5, C6, C7, C8, C10, C11
3
1u
C9, C12, C13
12
1k
R1, R11, R13, R17, R19, R20, R27, R28 +4
15
10k
R2, R3, R4, R7, R8, R12, R14, R15 +7
4
100
R5, R6, R9, R10
4
5.6k
R23, R26, R38, R42
1
240
R25
2
20k
R29, R31
1
62
R35
1
100m
R36
1
2
R37
2
10
R39, R40
