BMI270-Breakout layout, top view — open source board by HackableElectronics

About the BMI270-Breakout

BMI270-Breakout is an open source PCB design by HackableElectronics, published on GitHub under the LGPL-2.1 license. It is a 2-layer board measuring 16.5 × 20.3 mm, with 13 components from 8 distinct parts.

Other key parts include the BMI270. By type, the board carries 6 resistors, 4 connectors, 2 capacitors and 1 IC.

It belongs with the sensors and dev boards & breakouts designs in this gallery.

From the project

BMI270 IMU breakout board using STEMMA QT / Qwiic

한국어 # TinkeringBase BMI270 IMU breakout \ Sensor breakout using Bosch Sensortec's BMI270 6DoF IMU, supports Sparkfun Qwiic system.

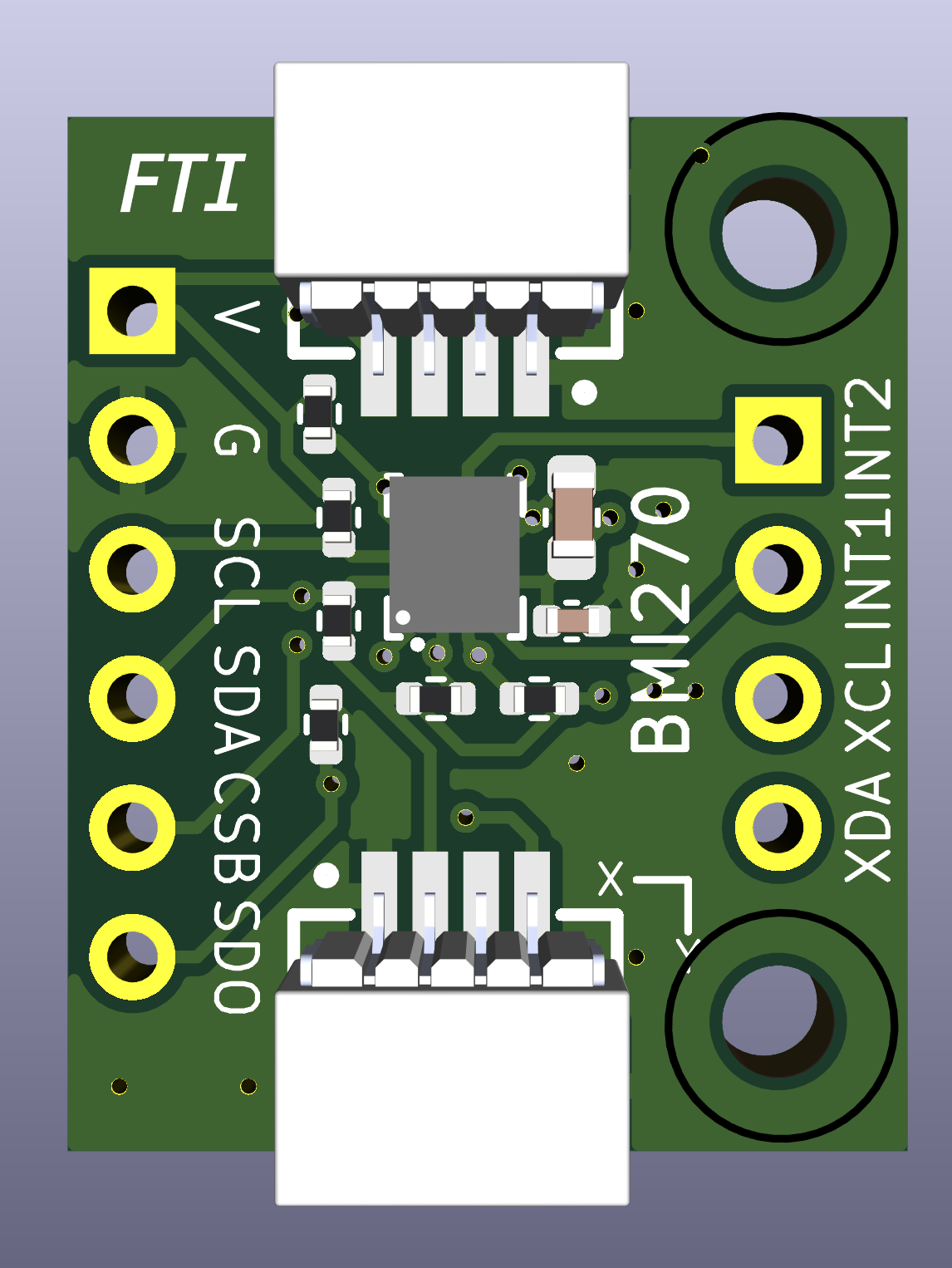

BMI270-Breakout, from the project README
From the project README

Main components on the BMI270-Breakout

BMI270

BMI270-Breakout bill of materials (BOM)

13 components, 8 distinct parts.

QtyPartRefs
1
BMI270
U1
2
AFC10-S04QCA-00
CN1, CN2
1
Conn_01x06_Pin
J1
1
Conn_01x04_Pin
J2
1
100n
C1
1
10u
C2
4
4.7k
R1, R2, R5, R6
2
10k
R3, R4

BMI270-Breakout design files

The KiCad project lives in the HackableElectronics/BMI270-Breakout repository on GitHub; these links point at the commit this page was built from.

BMI270-Breakout: common questions

How big is the BMI270-Breakout?

The BMI270-Breakout measures 16.5 × 20.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the BMI270-Breakout?

13 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the BMI270-Breakout design files?

From the HackableElectronics/BMI270-Breakout repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the BMI270-Breakout design in my own project?

Yes, under the terms of its LGPL-2.1 license, which HackableElectronics chose for the repository.
