About the Usb hid display PCB

Usb hid display is an open source RP2040/RP2350 PCB design by hackboxguy, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 59.3 × 30.5 mm, with 15 components from 9 distinct parts.

Its main chip is the RP2040-Zero, from the RP2040/RP2350 family. Other key parts include the SSD1306. By type, the board carries 5 switches, 5 capacitors, 2 ICs and 2 resistors.

It belongs with the displays & leds designs in this gallery.

From the project

A firmware for the mcu to acts as an usb-composite-device(hid-iput and ttyACMx serial device)

A firmware for Raspberry Pi Pico (RP2040) that turns cheap off-the-shelf components (rotary encoder, push buttons, SSD1306 OLED) into a standalone USB micro-panel for embedded Linux devices.

This firmware creates a USB composite device with two interfaces:

- HID Mouse — The rotary encoder and directional buttons appear as a standard USB mouse to the host. A host-side daemon (such as micropanel) interprets the relative mouse movements as menu navigation: up, down, left, right, and select. - CDC Serial (/dev/ttyACMx) — The host writes binary commands over this serial port to control the…

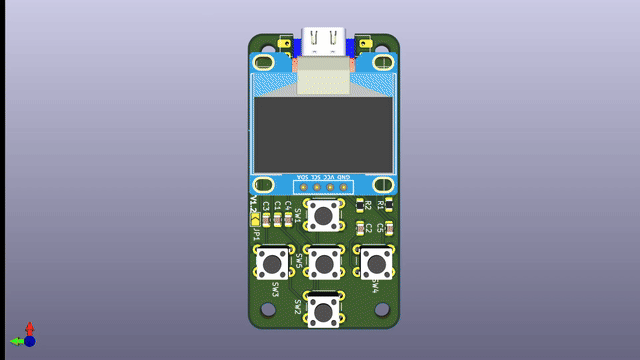

Usb hid display, from the project README — From the project README

Main components on the Usb hid display

SSD1306

Usb hid display bill of materials (BOM)

15 components, 9 distinct parts.

Qty	Part	Footprint	Refs
2	SSD1306	ssd1306-module	U1, U2
1	RP2040-Zero	RP2040-Zero	RZ1
1	UP	SW_PUSH_6mm	SW1
1	DOWN	SW_PUSH_6mm	SW2
1	LEFT	SW_PUSH_6mm	SW3
1	RIGHT	SW_PUSH_6mm	SW4
1	ENTER	SW_PUSH_6mm	SW5
5	0.1uF/50V	C_0805_2012Metric	C1, C2, C3, C4, C5
2	4.7K/1%	R_0805_2012Metric	R1, R2

Usb hid display design files

The KiCad project lives in the hackboxguy/usb-hid-display repository on GitHub; these links point at the commit this page was built from.

Layouthardware/usb-hid-display.kicad_pcb
Schematichardware/usb-hid-display.kicad_sch

Usb hid display: common questions

What microcontroller does the Usb hid display use?

The Usb hid display is built around the RP2040-Zero, from the RP2040/RP2350 family.

How big is the Usb hid display PCB?

The Usb hid display measures 59.3 × 30.5 mm, has 2 copper layers and is 1.6002 mm thick.

How many components are on the Usb hid display?

15 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the Usb hid display design files?

From the hackboxguy/usb-hid-display repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Usb hid display design in my own project?

Yes, under the terms of its GPL-3.0 license, which hackboxguy chose for the repository.
