Ac to dc converter

hammadurrehman2006·kicad_lab·02_ac_to_dc_converter/ac_to_dc_converter.kicad_pcb

Ac to dc converter PCB layout, top view — open source board by hammadurrehman2006

About the Ac to dc converter PCB

Ac to dc converter is an open source PCB design by hammadurrehman2006, published on GitHub. It is a 2-layer board measuring 47.5 × 34 mm, with 10 components from 6 distinct parts.

By type, the board carries 5 diodes, 2 connectors, 2 resistors and 1 capacitor.

From the project

A collection of KiCad PCB designs developed during my Electronic Engineering degree (2024-28). Includes university projects, personal experiments, and custom components—featuring schematics, layouts, Gerber files, and documentation. Open-source hardware for education, collaboration, and real-world manufacturing.

This is Day 1 of my 10-Day PCB Design Challenge, where I design PCB projects starting from simple circuits and gradually moving towards more complex ones.

For today’s design, I created a single-layer PCB for an AC to DC Converter using KiCad.

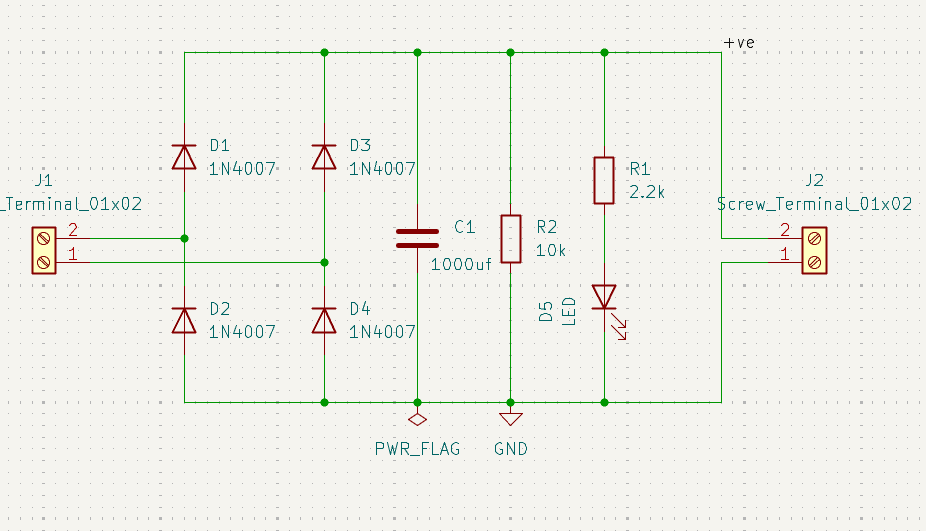

Ac to dc converter, from the project README
From the project README

Ac to dc converter bill of materials (BOM)

10 components, 6 distinct parts.

QtyPartRefs
2
Screw_Terminal_01x02
J1, J2
4
1N4007
D1, D2, D3, D4
1
LED
D5
1
1000uf
C1
1
2.2k
R1
1
10k
R2

Ac to dc converter design files

The KiCad project lives in the hammadurrehman2006/kicad_lab repository on GitHub; these links point at the commit this page was built from.

Ac to dc converter: common questions

How big is the Ac to dc converter PCB?

The Ac to dc converter measures 47.5 × 34 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Ac to dc converter?

10 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Ac to dc converter design files?

From the hammadurrehman2006/kicad_lab repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Ac to dc converter design in my own project?

The repository has no license, so all rights stay with hammadurrehman2006. Use it as a reference, and ask the author before reusing the design.
