About the Servo tester PCB
Servo tester is an open source PCB design by hammadurrehman2006, published on GitHub. It is a 2-layer board measuring 32.7 × 29.6 mm, with 10 components from 10 distinct parts.
Other key parts include the NE555P. By type, the board carries 3 resistors, 2 connectors, 2 diodes, 1 IC and 1 capacitor.
It belongs with the robotics & motion designs in this gallery.
From the project
A collection of KiCad PCB designs developed during my Electronic Engineering degree (2024-28). Includes university projects, personal experiments, and custom components—featuring schematics, layouts, Gerber files, and documentation. Open-source hardware for education, collaboration, and real-world manufacturing.
This is Day 3 of my 10-Day PCB Design Challenge, where I design PCB projects starting from simple circuits and gradually moving towards more complex ones.

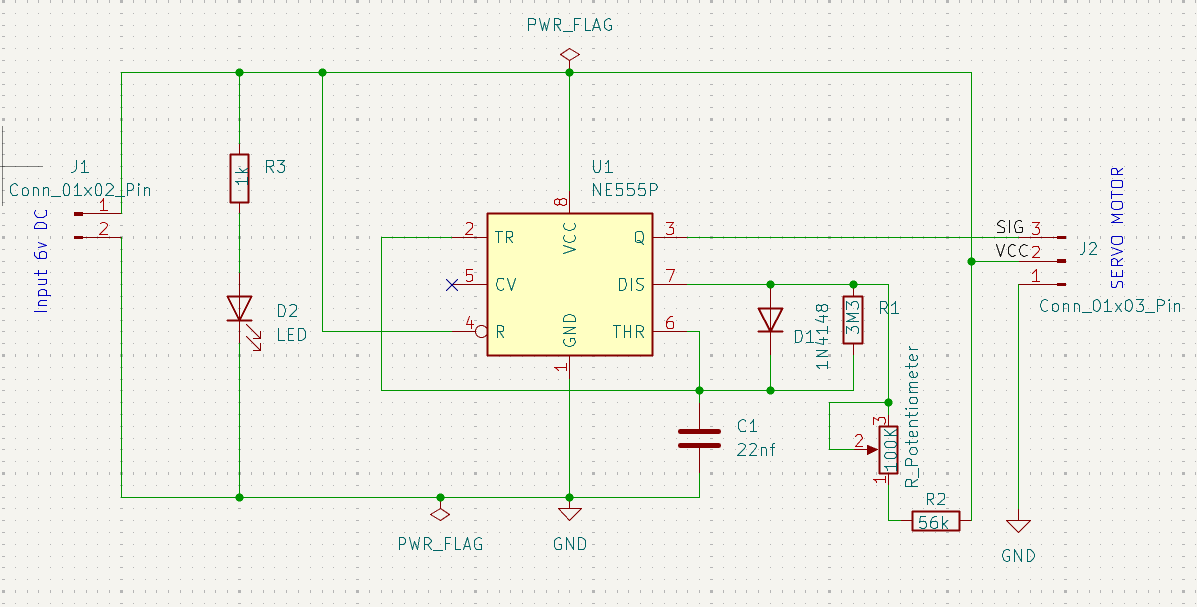

For today’s design, I created a 2-layer Servo Tester PCB using KiCad. This circuit is based on a 555 Timer IC and a potentiometer to generate PWM signals for testing servo motors.

Main components on the Servo tester
Servo tester bill of materials (BOM)
10 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NE555P | DIP-8_W7.62mm | U1 |
| 1 | Conn_01x02_Pin | PinHeader_1x02_P2.54mm_Horizontal | J1 |
| 1 | Conn_01x03_Pin | PinHeader_1x03_P2.54mm_Horizontal | J2 |
| 1 | R_Potentiometer | Potentiometer_Alps_RK163_Single_Horizontal | 100K |
| 1 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1 |
| 1 | LED | LED_D3.0mm | D2 |
| 1 | 22nf | C_Disc_D4.3mm_W1.9mm_P5.00mm | C1 |
| 1 | 3M3 | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R1 |
| 1 | 56k | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R2 |
| 1 | 1k | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R3 |
