Dc boost converter
About the Dc boost converter PCB
Dc boost converter is an open source PCB design by hammadurrehman2006, published on GitHub. It is a 2-layer board measuring 47.6 × 22.5 mm, with 13 components from 9 distinct parts.
By type, the board carries 4 connectors, 4 capacitors, 1 diode, 1 inductor and 1 resistor.
It belongs with the power & battery designs in this gallery.
From the project
A collection of KiCad PCB designs developed during my Electronic Engineering degree (2024-28). Includes university projects, personal experiments, and custom components—featuring schematics, layouts, Gerber files, and documentation. Open-source hardware for education, collaboration, and real-world manufacturing.

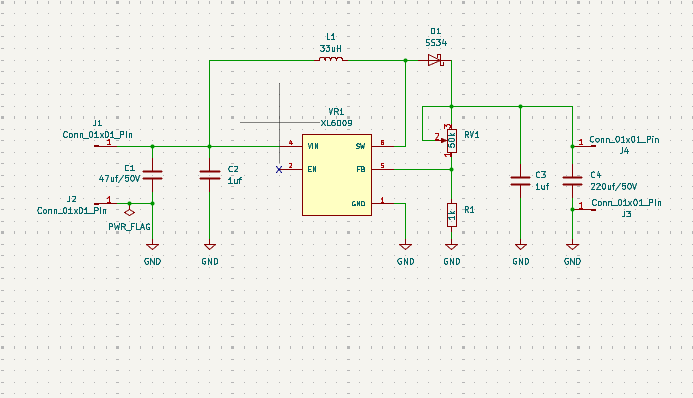

This is Day 6 of my 10-Day PCB Design Challenge. Today, I designed a Boost Converter circuit using the XL6009 regulator IC in KiCad.
A boost converter is a DC-DC step-up regulator that efficiently converts a lower input voltage into a higher output voltage, making it useful in power supply applications where the input source is lower than the required load voltage.
Dc boost converter bill of materials (BOM)
13 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | Conn_01x01_Pin | PinHeader_1x01_P2.54mm_Vertical | J1, J2, J3, J4 |
| 1 | 50k | Potentiometer_Bourns_3296W_Vertical | RV1 |
| 1 | XL6009 | DPAK170P1435X465-6N | VR1 |
| 1 | SS34 | D_SMA | D1 |
| 1 | 33uH | L_12x12mm_H8mm | L1 |
| 1 | 47uf/50V | CP_Radial_D6.3mm_P2.50mm | C1 |
| 2 | 1uf | C_0805_2012Metric | C2, C3 |
| 1 | 220uf/50V | CP_Radial_D6.3mm_P2.50mm | C4 |
| 1 | 1k | R_1206_3216Metric | R1 |
Dc boost converter design files
The KiCad project lives in the hammadurrehman2006/kicad_lab repository on GitHub; these links point at the commit this page was built from.
Dc boost converter: common questions
How big is the Dc boost converter PCB?
The Dc boost converter measures 47.6 × 22.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Dc boost converter?
13 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the Dc boost converter design files?
From the hammadurrehman2006/kicad_lab repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Dc boost converter design in my own project?
The repository has no license, so all rights stay with hammadurrehman2006. Use it as a reference, and ask the author before reusing the design.
