About the Micropad-2x4-v1 PCB

Micropad-2x4-v1 is an open source RP2040/RP2350 PCB design by Hanifz99, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 95 × 66.5 mm, with 21 components from 5 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 11 diodes, 8 switches, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

https://t.me/hanifz99

A compact, customizable keypad with programmable buttons that automate complex commands or shortcuts with a single press.(this project need continue to build)

These are the CAD models designed in Fusion 360.

This macropad uses QMK firmware for mapping the 8 keys. You can customize them for playing music, videos, or other shortcuts.

Here is everything you need to build this macropad:

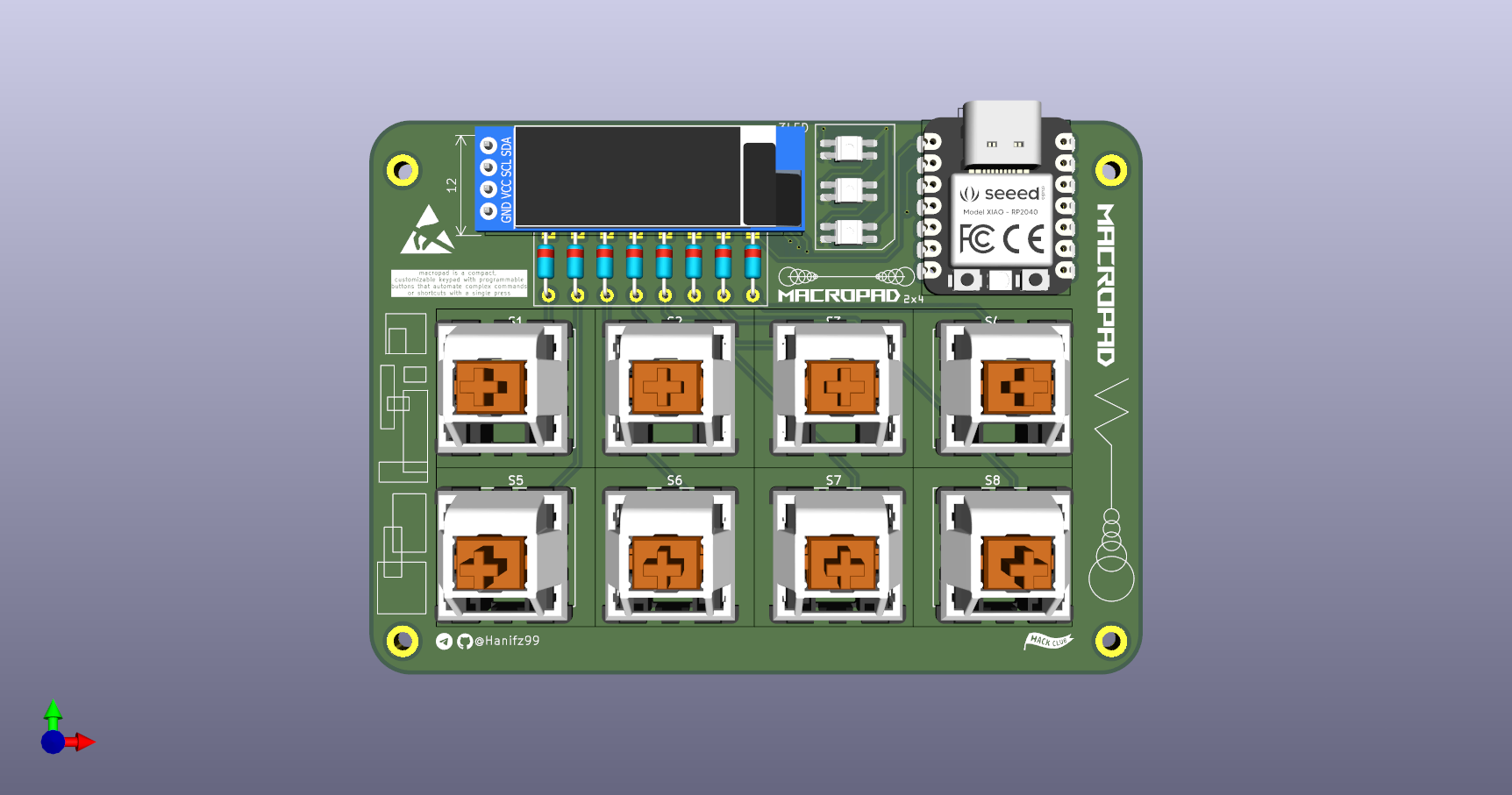

Micropad-2x4-v1, from the project README — From the project README

Main components on the Micropad-2x4-v1

XIAO-RP2040-DIP

Micropad-2x4-v1 bill of materials (BOM)

21 components, 5 distinct parts.

Qty	Part	Footprint	Refs
1	XIAO-RP2040-DIP	Seeed_XIAO_RP2040	U1
1	OLED_128x32	OLED_128x32	J1
8	~	MX_PCB_1.00u	S1, S2, S3, S4, S5, S6, S7, S8
8	~	Diode_DO-35	D1, D2, D3, D4, D5, D6, D7, D8
3	LED_SK6812MINI	LED_SK6812MINI	D9, D10, D11

Micropad-2x4-v1 design files

The KiCad project lives in the Hanifz99/Micropad-2x4-v1 repository on GitHub; these links point at the commit this page was built from.

LayoutPCB/Micropaf_alpha.kicad_pcb
SchematicPCB/Micropaf_alpha.kicad_sch

Micropad-2x4-v1: common questions

What microcontroller does the Micropad-2x4-v1 use?

The Micropad-2x4-v1 is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the Micropad-2x4-v1 PCB?

The Micropad-2x4-v1 measures 95 × 66.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Micropad-2x4-v1?

21 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Micropad-2x4-v1 design files?

From the Hanifz99/Micropad-2x4-v1 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Micropad-2x4-v1 design in my own project?

Yes, under the terms of its GPL-3.0 license, which Hanifz99 chose for the repository.
