About the Esp32-As5600-Sensor-Interface PCB

Esp32-As5600-Sensor-Interface is an open source ESP32 PCB design by harshitha124000, published on GitHub. It is a 2-layer board measuring 53.6 × 66.6 mm, with 26 components from 14 distinct parts.

Its main chip is the ESP32-WROOM-32D, from the ESP32 family. Other key parts include the AMS1117-3.3, LM7805_TO220 and locked. By type, the board carries 9 capacitors, 7 resistors, 4 ICs, 3 connectors and 3 diodes.

It belongs with the iot & wireless and sensors designs in this gallery.

From the project

ESP32 AS5600 sensor interface

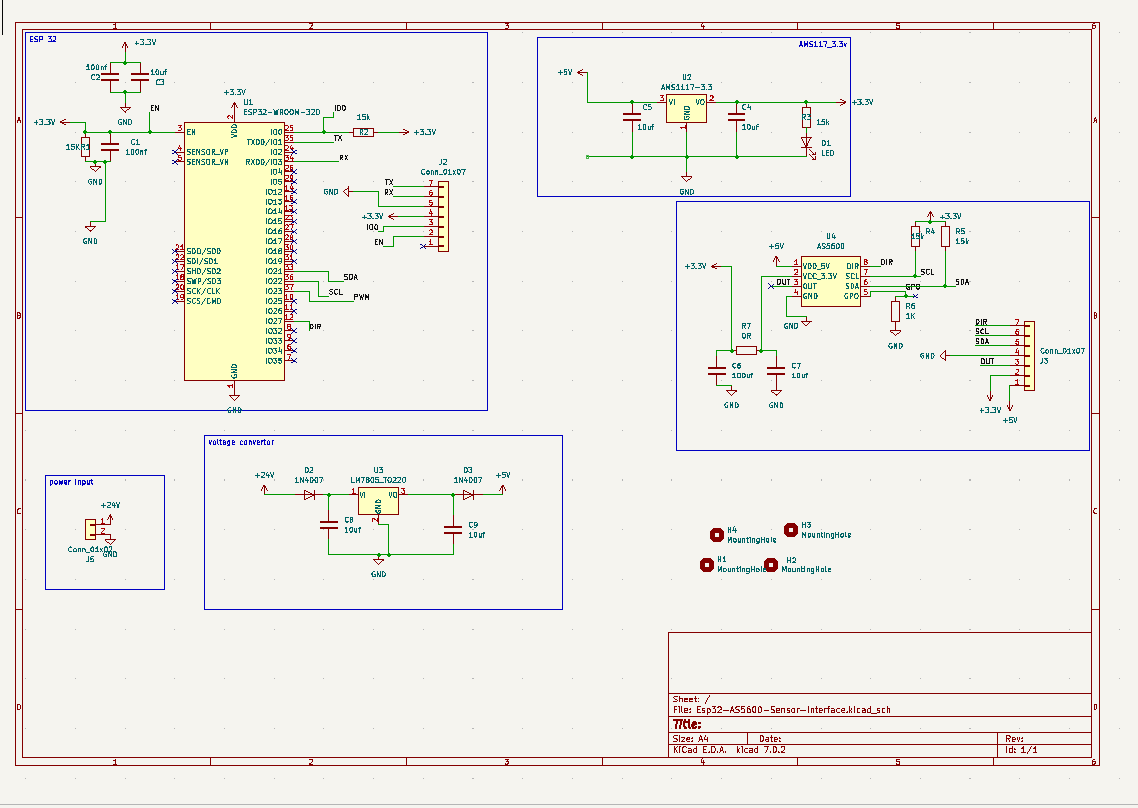

esp32-As5600-sensor schematic The ESP32 is a powerful, low-cost Wi-Fi and Bluetooth microcontroller designed for IoT applications.it is powerd by a 3.3v supply.The assign as follows:DIR,SCL,SDA,and PWM for the AS5600 function AMS117use to populor linear voltage regulator and provide the fixed output volatge from the higher input voltage AS5600, a contactless magnetic rotary position sensor, involves careful attention to power supply, communication lines, and layout considerations. I have use voltage convertor to regulate the power from 24v to 5v.

Esp32-As5600-Sensor-Interface, from the project README
From the project README

Main components on the Esp32-As5600-Sensor-Interface

ESP32-WROOM-32DAMS1117-3.3LM7805_TO220locked

Esp32-As5600-Sensor-Interface bill of materials (BOM)

26 components, 14 distinct parts.

QtyPartRefs
1
ESP32-WROOM-32D
U1
1
AMS1117-3.3
U2
1
LM7805_TO220
U3
1
locked
U4
2
Conn_01x07
J2, J3
1
Conn_01x02
J5
1
LED
D1
2
1N4007
D2, D3
2
100nf
C1, C2
6
10uf
C3, C4, C5, C7, C8, C9
1
100uf
C6
5
15K
R1, R2, R3, R4, R5
1
1K
R6
1
0R
R7

Esp32-As5600-Sensor-Interface design files

The KiCad project lives in the harshitha124000/Esp32-As5600-Sensor-Interface repository on GitHub; these links point at the commit this page was built from.

Esp32-As5600-Sensor-Interface: common questions

What microcontroller does the Esp32-As5600-Sensor-Interface use?

The Esp32-As5600-Sensor-Interface is built around the ESP32-WROOM-32D, from the ESP32 family.

How big is the Esp32-As5600-Sensor-Interface PCB?

The Esp32-As5600-Sensor-Interface measures 53.6 × 66.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32-As5600-Sensor-Interface?

26 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the Esp32-As5600-Sensor-Interface design files?

From the harshitha124000/Esp32-As5600-Sensor-Interface repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Esp32-As5600-Sensor-Interface design in my own project?

The repository has no license, so all rights stay with harshitha124000. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Esp32-As5600-Sensor-Interface without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
