About the Remram PCB

Remram is an open source STM32 PCB design by hasenbanck, published on GitHub. It is a 4-layer board measuring 140 × 104 mm, with 259 components from 59 distinct parts.

Its main chip is the STM32F765VIT6, from the STM32 family. Other key parts include the AP7365-33WG-7, TPS54308, SN74LVC2G17DCKR, ADUM4160 and TMC2130-TA. By type, the board carries 78 capacitors, 67 diodes, 65 resistors, 24 connectors, 10 ICs and 5 transistors.

It belongs with the robotics & motion designs in this gallery.

From the project

32bit STM32F7 based 3D printing controller using TMC2130 stepper driver

32bit STM32F765VI 216 MHz 512 KBytes RAM 2 MBytes flash 4x TMC2130 stepper driver stealthChop spreadCycle coolStep stallGuard 24V main power rail heatbed output (15A) heater output (5A) stepper driver and logic (5A) 5V secondary power rail (3A) FAN1 and FAN2 2x 3.3V tertiary power rail (2x 0.5A) MCU power (IO) SD card power Robust connectors Quality, high powered MOSFET * 4 layer board with single side component placement

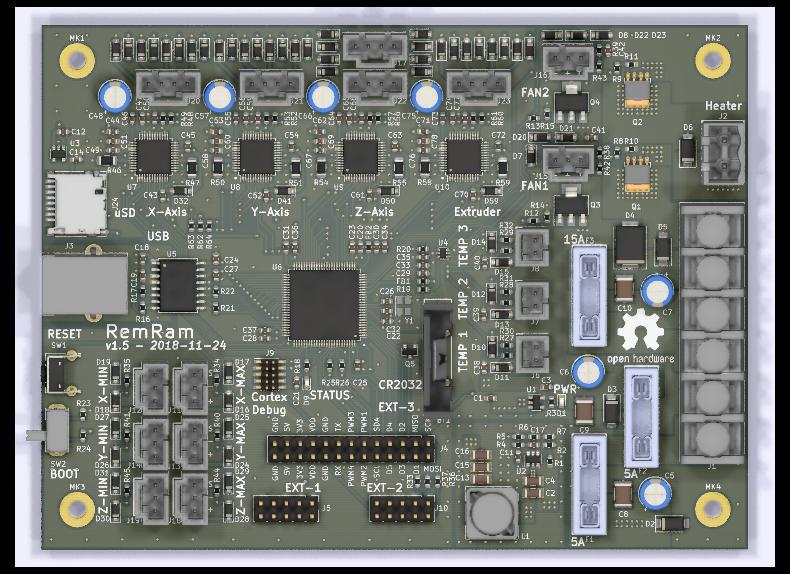

Remram, from the project README
From the project README

Main components on the Remram

AP7365-33WG-7TPS54308SN74LVC2G17DCKRADUM4160STM32F765VIT6TMC2130-TA

Remram bill of materials (BOM)

259 components, 59 distinct parts.

QtyPartRefs
2
AP7365-33WG-7
U1, U3
1
TPS54308
U2
1
SN74LVC2G17DCKR
U4
1
ADUM4160
U5
1
STM32F765VIT6
U6
4
TMC2130-TA
U7, U8, U9, U10
2
PSMN1R2-30YLC,115
Q1, Q2
2
BUK9840-55
Q3, Q4
1
IRLML6401
Q5
1
TSX-3225 24.0000MF15X-AC3
Y1
1
4DB-P108-06
J1
1
039531-1002
J2
1
67068-8000
J3
1
Conn_02x13_Odd_Even
J4
2
Conn_02x05
J5, J10
3
70543-0001
J6, J7, J8
1
20021121-00010C4LF
J9
8
70543-0002
J11, J12, J13, J14, J15, J16, J18, J19
5
70543-0003
J17, J20, J21, J22, J23
1
Hirose DM3D
J24
Show 39 more
QtyPartRefs
1
S8401-46
BT1
3
3557-2
F1, F2, F3
1
PTS645VL39-2
SW1
1
OS102011MA1QN1
SW2
1
LTST-C194KGKT
D1
2
SMAJ28A
D2, D3
1
S3A-13-F
D4
2
SK310A-LTP
D5, D6
24
BAT54GWJ
D7, D8, D10, D11, D12, D13, D14, D15 +16
1
LTST-C194KSKT
D9
36
S310FA
D32, D33, D34, D35, D36, D37, D38, D39 +28
2
MPZ1608S221A
FB1, FB2
1
18uH
L1
8
10uF
C1, C3, C12, C14, C50, C59, C68, C77
1
10uF
C2
1
100nF
C4
7
100uF
C5, C6, C7, C48, C57, C66, C75
3
100nF
C8, C9, C10
39
100nF
C11, C18, C19, C21, C22, C23, C24, C25 +31
3
22uF
C13, C15, C16
1
75pF
C17
1
4.7uF
C20
2
8pF
C26, C32
2
1uF
C29, C30
2
2.2uF
C36, C37
4
22nF
C46, C55, C64, C73
4
470nF
C47, C56, C65, C74
1
511k
R1
1
105k
R2
10
1k
R3, R18, R19, R20, R34, R35, R40, R41 +2
1
2k
R4
1
49.9
R5
5
100k
R6, R10, R11, R14, R15
1
13.3k
R7
11
100
R8, R9, R12, R13, R16, R17, R21, R22 +3
13
47k
R23, R24, R48, R49, R52, R53, R56, R57 +5
2
10k
R25, R26
11
4.7k
R27, R28, R29, R30, R31, R32, R38, R39 +3
8
0.12
R46, R47, R50, R51, R54, R55, R58, R59

Remram design files

The KiCad project lives in the hasenbanck/remram repository on GitHub; these links point at the commit this page was built from.

Remram: common questions

What microcontroller does the Remram use?

The Remram is built around the STM32F765VIT6, from the STM32 family.

How big is the Remram PCB?

The Remram measures 140 × 104 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Remram?

259 components, from 59 distinct parts. The full bill of materials is listed on this page.

Where can I download the Remram design files?

From the hasenbanck/remram repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Remram design in my own project?

The repository has no license, so all rights stay with hasenbanck. Use it as a reference, and ask the author before reusing the design.
