WLED ESP32 Controller

Hasenpups·WLED_ESP32_Controller·KiCad/WLED_ESP32_Controller.kicad_pcb

WLED ESP32 Controller PCB layout, top view — open source ESP32 board by Hasenpups
Simulate this board

About the WLED ESP32 Controller PCB

WLED ESP32 Controller is an open source ESP32 PCB design by Hasenpups, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 62.2 × 30.5 mm, with 22 components from 14 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the AMS1117-3.3 and SN74AHCT125D. By type, the board carries 6 resistors, 4 jumpers, 4 capacitors, 3 ICs, 3 connectors and 2 switches.

From the project

Shield: [![CC BY-NC-SA 4.0][cc-by-nc-sa-shield]][cc-by-nc-sa]

Shield: [![CC BY-NC-SA 4.0][cc-by-nc-sa-shield]][cc-by-nc-sa]

This work is licensed under a [Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License][cc-by-nc-sa].

[cc-by-nc-sa]: http://creativecommons.org/licenses/by-nc-sa/4.0/ [cc-by-nc-sa-image]: https://licensebuttons.net/l/by-nc-sa/4.0/88x31.png [cc-by-nc-sa-shield]: https://img.shields.io/badge/License-CC%20BY--NC--SA%204.0-lightgrey.svg

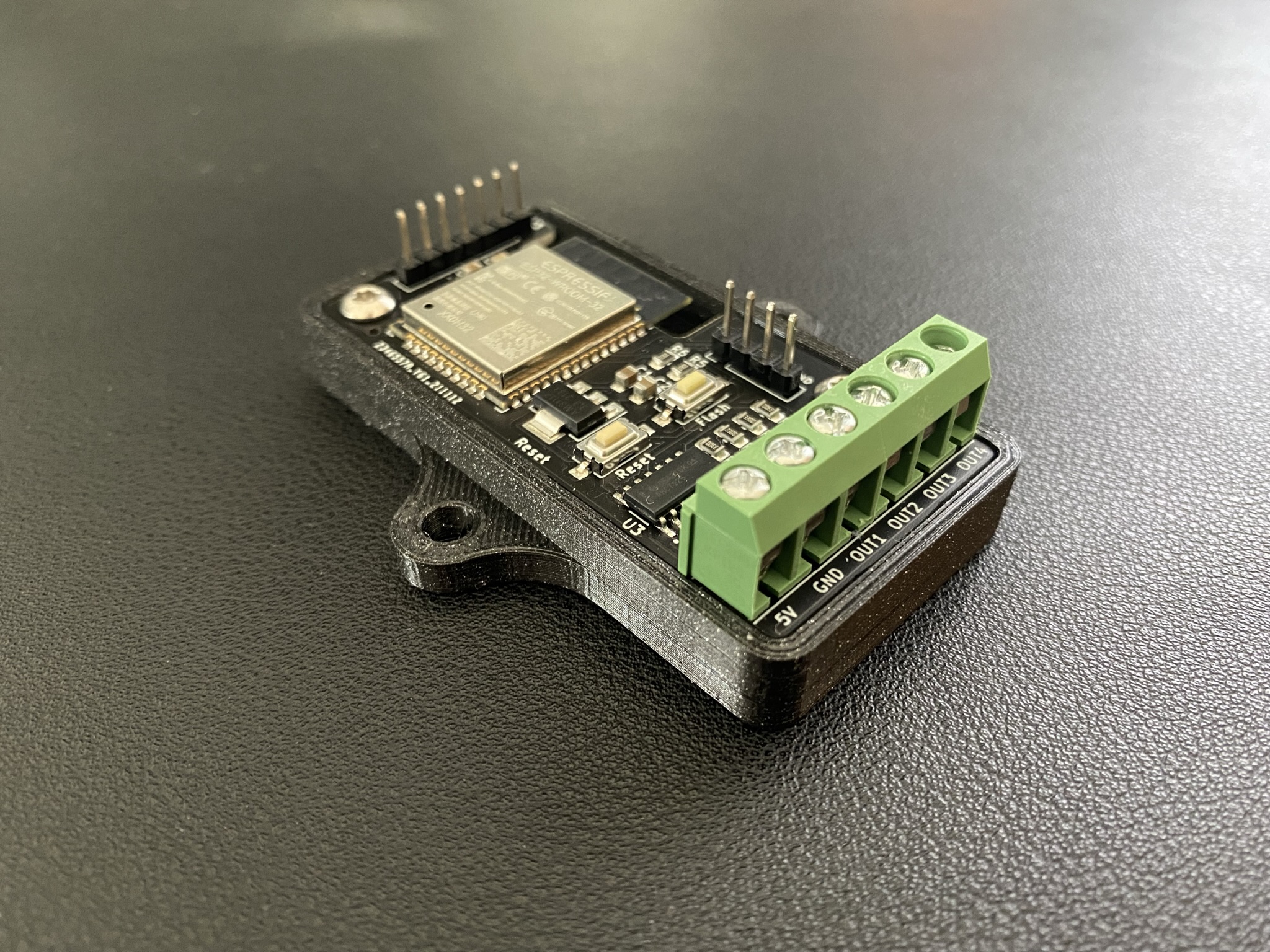

WLED ESP32 Controller, from the project README
From the project README

Main components on the WLED ESP32 Controller

AMS1117-3.3ESP32-WROOM-32SN74AHCT125D

WLED ESP32 Controller bill of materials (BOM)

22 components, 14 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AMS1117-3.3
U1
1
ESP32-WROOM-32
U2
1
SN74AHCT125D
U3
1
Conn_01x06_Female
J1
1
Conn_01x04_Female
J2
1
Conn_01x07_Female
J3
4
SolderJumper_2_Open
JP1, JP2, JP3, JP4
1
C354943
Reset
SW1
1
C354943
Flash
SW2
2
C15850
10µ
C1, C3
1
C16780
47µ
C2
1
100N
100n
C4
4
330
R1, R2, R3, R4
2
10K
R5, R6

WLED ESP32 Controller design files

The KiCad project lives in the Hasenpups/WLED_ESP32_Controller repository on GitHub; these links point at the commit this page was built from.

WLED ESP32 Controller: common questions

What microcontroller does the WLED ESP32 Controller use?

The WLED ESP32 Controller is built around the ESP32-WROOM-32, from the ESP32 family.

How big is the WLED ESP32 Controller PCB?

The WLED ESP32 Controller measures 62.2 × 30.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the WLED ESP32 Controller?

22 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the WLED ESP32 Controller design files?

From the Hasenpups/WLED_ESP32_Controller repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the WLED ESP32 Controller design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the WLED ESP32 Controller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
