About the Commiepad-V2 PCB

Commiepad-V2 is an open source RP2040/RP2350 PCB design by Hasnat4763, published on GitHub under the MIT license. It is a 2-layer board measuring 85.6 × 64.4 mm, with 28 components from 6 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 17 diodes, 9 switches, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

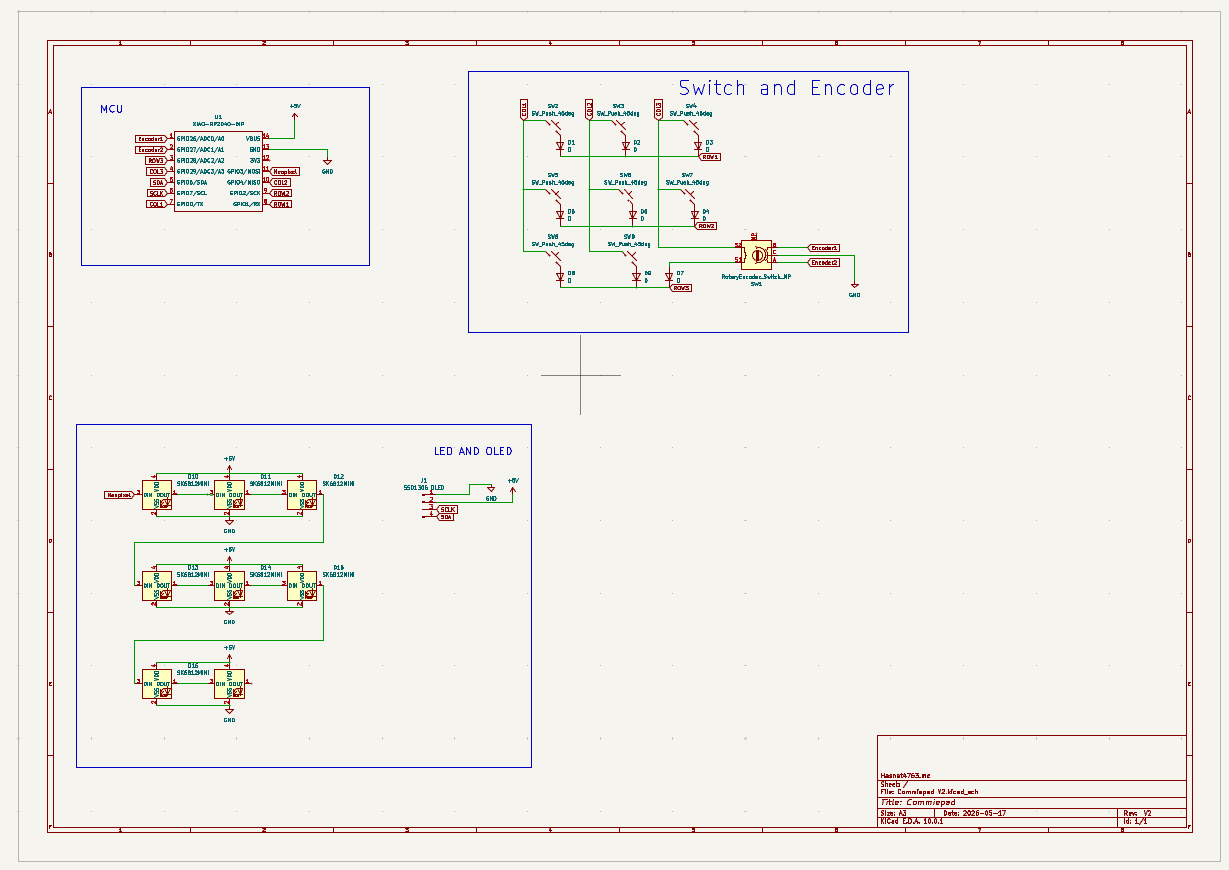

A fully custom designed macro pad. It is a sequel to my 1st macropad design Commiepad. The 1st one was not working fully as I had made some mistakes in the PCB by not using a matrix and combining OLED SDA with neopixel data line. So I fixed that mistake in this one. It can be used for running macros which can help people like programmers and designers to run commands they need to run a lot just by clicking one key instead of multiple.

Main components on the Commiepad-V2

XIAO-RP2040-DIP

Commiepad-V2 bill of materials (BOM)

28 components, 6 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	XIAO-RP2040-DIP	XIAO-RP2040-DIP	U1
1	SSD1306 OLED	SSD1306-0.91-OLED-4pin-128x32	J1
1	RotaryEncoder_Switch_MP	RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm	SW1
8	SW_PUSH_45DEG SW_Push_45deg	SW_Cherry_MX_1.00u_PCB	SW2, SW3, SW4, SW5, SW6, SW7, SW8, SW9
9	D	D_DO-41_SOD81_P7.62mm_Horizontal	D1, D2, D3, D4, D5, D6, D7, D8 +1
8	SK6812MINI	SK6812-MINI-E	D10, D11, D12, D13, D14, D15, D16, D17

Commiepad-V2 design files

The KiCad project lives in the Hasnat4763/Commiepad-V2 repository on GitHub; these links point at the commit this page was built from.

Commiepad-V2: common questions

What microcontroller does the Commiepad-V2 use?

The Commiepad-V2 is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the Commiepad-V2 PCB?

The Commiepad-V2 measures 85.6 × 64.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Commiepad-V2?

28 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Commiepad-V2 design files?

From the Hasnat4763/Commiepad-V2 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Commiepad-V2 design in my own project?

Yes, under the terms of its MIT license, which Hasnat4763 chose for the repository.

Can I test firmware for the Commiepad-V2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
