ISA 8bitNetwork 8019 PCB layout, top view — open source board by hkzlab

About the ISA 8bitNetwork 8019 PCB

ISA 8bitNetwork 8019 is an open source PCB design by hkzlab, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 104.1 × 71.9 mm, with 55 components from 25 distinct parts.

Other key parts include the RTL8019AS, AT93C46DN and SST39SF040. By type, the board carries 21 resistors, 16 capacitors, 10 connectors, 3 ICs, 2 jumpers and 1 crystal.

It belongs with the retro computing designs in this gallery.

From the project

8bit ISA NE2000-compatible network card based on the RTL8019AS chip

This is an 8bit reimplementation and repackaging of Manawyrm's ISA8019, a NE2000-compatible card for the ISA bus.

Differences from the original version include: - 8bit only design (significantly more compact than the 16bit version) - Most of the components are now THT (except EEPROM, Network IC and transformer)

I take NO responsibility for what happens if you decide to build and use this card. Your computer might crash, catch fire or be destroyed in other nasty ways. Also, as this card is mostly based on the work of others, You're encourauged to take what you deem fit from this, and use it…

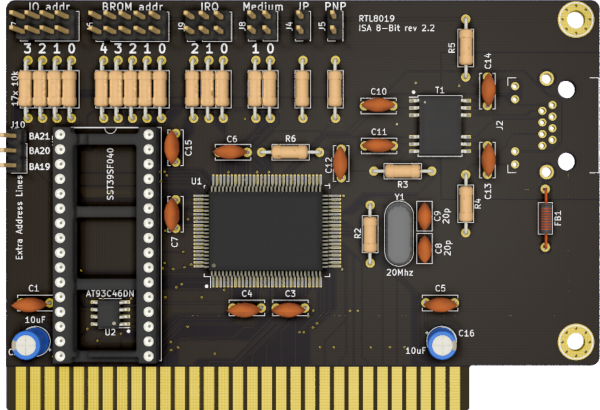

ISA 8bitNetwork 8019, from the project README
From the project README

Main components on the ISA 8bitNetwork 8019

RTL8019ASAT93C46DNSST39SF040

ISA 8bitNetwork 8019 bill of materials (BOM)

55 components, 25 distinct parts.

QtyPartRefs
1
RTL8019AS
U1
1
AT93C46DN
U2
1
SST39SF040
U3
1
20Mhz
Y1
1
Bus_ISA_8bit
J1
1
8P8C_Shielded
J2
1
Jumper mode
J4
1
PNP force
J5
1
BROM size and base address
J6
1
I/O base address
J7
1
Medium type
J8
1
IRQ Select
J9
1
Extra Address Lines
J10
1
EPROM/SRAM Selection
J11
2
IRQ6_Jumper
JP1, JP2
1
13F-39MNL
T1
1
Filter
FB1
8
100n
C1, C3, C4, C5, C6, C7, C12, C15
2
10uF
C2, C16
2
20p
C8, C9
Show 5 more
QtyPartRefs
4
1nF
C10, C11, C13, C14
1
1M
R2
1
200
R3
2
1k
R4, R5
17
10k
R6, R7, R8, R9, R10, R11, R12, R13 +9

ISA 8bitNetwork 8019 design files

The KiCad project lives in the hkzlab/ISA_8bitNetwork_8019 repository on GitHub; these links point at the commit this page was built from.

ISA 8bitNetwork 8019: common questions

How big is the ISA 8bitNetwork 8019 PCB?

The ISA 8bitNetwork 8019 measures 104.1 × 71.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ISA 8bitNetwork 8019?

55 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the ISA 8bitNetwork 8019 design files?

From the hkzlab/ISA_8bitNetwork_8019 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ISA 8bitNetwork 8019 design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
