About the Supercar larson scanner PCB
Supercar larson scanner is an open source PCB design by hkzlab, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 63.5 × 43.6 mm, with 41 components from 19 distinct parts.
Other key parts include the 74HC283, 74HC574, 74HC154, 74HC86 and NE555D. By type, the board carries 17 diodes, 10 capacitors, 6 ICs, 5 resistors, 1 battery holder and 1 switch.
From the project

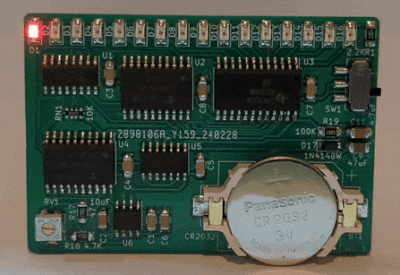

A simple SMD Larson Scanner board made out of 74' logic
"Supercar" is the (stupid) italian name for the Knight Rider) TV series. In that series, the iconic car KITT sports a red light going back and forth under the hood. That effect is called "Larson scanner".
This board implements a "Larson scanner" with regulable speed using a 555 timer and a few 74' CMOS logic ICs (two latches, a full adder, a demux and a 4x 2-in xor gate). It's powered by a CR2032 coin cell battery.
Main components on the Supercar larson scanner
Supercar larson scanner bill of materials (BOM)
41 components, 19 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74HC283 | SOIC-16_3.9x9.9mm_P1.27mm | U1 |
| 2 | 74HC574 | SOIC-20W_7.5x12.8mm_P1.27mm | U2, U4 |
| 1 | 74HC154 | SOIC-24W_7.5x15.4mm_P1.27mm | U3 |
| 1 | 74HC86 | SOIC-14_3.9x8.7mm_P1.27mm | U5 |
| 1 | NE555D | SOIC-8_3.9x4.9mm_P1.27mm | U6 |
| 1 | CR2032 | BatteryHolder_Keystone_1060_1x2032 | BT1 |
| 1 | 47K | Potentiometer_Bourns_3314G_Vertical | RV1 |
| 1 | Power | SW_SPDT_CK-JS102011SAQN | SW1 |
| 16 | LED | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D1, D2, D3, D4, D5, D6, D7, D8 +8 |
| 1 | 1N4148W | D_SOD-123 | D17 |
| 7 | 100nF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1, C3, C4, C5, C6, C7, C8 |
| 1 | 10uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C2 |
| 1 | 47uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C9 |
| 1 | 4.7uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C11 |
| 1 | 2.2K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R1 |
| 1 | 47 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R17 |
| 1 | 4.7K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R18 |
| 1 | 100K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R19 |
| 1 | 10K | R_Array_Convex_4x0612 | RN1 |
