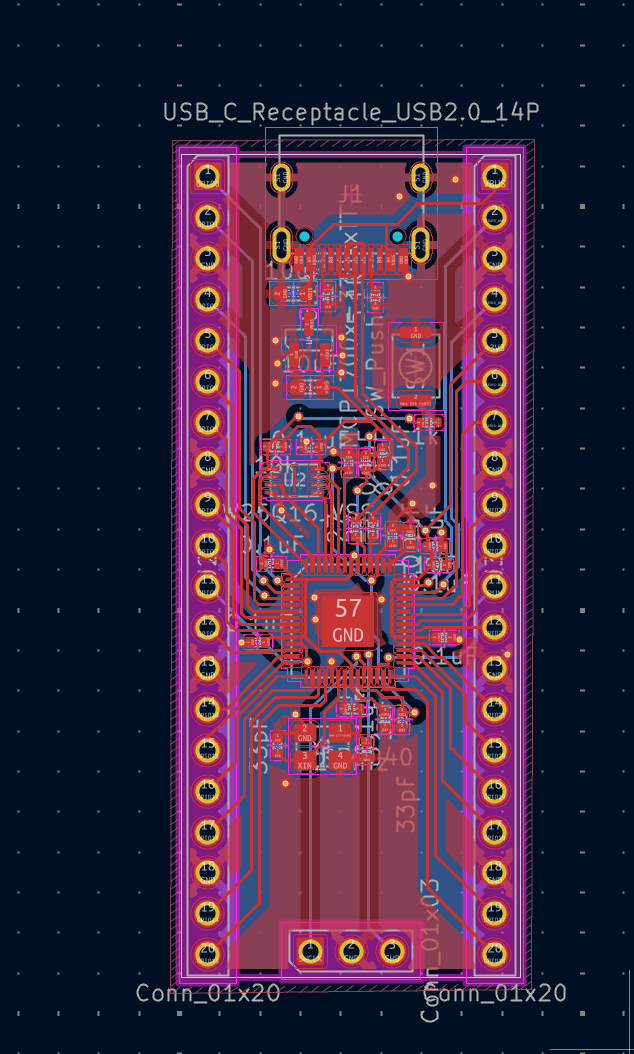

Devboard PCB layout, top view — open source RP2040/RP2350 board by Hobonker

About the Devboard PCB

Devboard is an open source RP2040/RP2350 PCB design by Hobonker, published on GitHub. It is a 2-layer board measuring 21 × 51 mm, with 33 components from 17 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the W25Q16JVSS and MCP1700x-330xxTT. By type, the board carries 17 capacitors, 7 resistors, 4 connectors, 3 ICs, 1 crystal and 1 switch.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

custom devboard

Devboard, from the project README
From the project README

Main components on the Devboard

RP2040W25Q16JVSSMCP1700x-330xxTT

Devboard bill of materials (BOM)

33 components, 17 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2040
U1
1
W25Q16JVSS
U2
1
MCP1700x-330xxTT
U4
1
12 MHz
Y1
1
USB_C_Receptacle_USB2.0_14P
J1
2
Conn_01x20
J2, J3
1
Conn_01x03
J4
1
SW_Push
SW1
2
1uF
C1, C10
10
0.1uF
C2, C3, C4, C5, C6, C7, C8, C9 +2
2
10uF
C13, C14
2
33pF
C15, C16
1
0.1 uF
C17
2
5.1K
R1, R2
2
27
R3, R4
2
1k
R5, R6
1
10k
R7

Devboard design files

The KiCad project lives in the Hobonker/devboard repository on GitHub; these links point at the commit this page was built from.

Devboard: common questions

What microcontroller does the Devboard use?

The Devboard is built around the RP2040, from the RP2040/RP2350 family.

How big is the Devboard PCB?

The Devboard measures 21 × 51 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Devboard?

33 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Devboard design files?

From the Hobonker/devboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Devboard design in my own project?

The repository has no license, so all rights stay with Hobonker. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Devboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
