Nyx PCB layout, top view — open source RP2040/RP2350 board by HorrorTroll
Simulate this board

About the Nyx PCB

Nyx is an open source RP2040/RP2350 PCB design by HorrorTroll, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 304.3 × 108.3 mm, with 107 components from 20 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the ZD25Q80BNIGR and IS31FL3729-QF. By type, the board carries 69 diodes, 21 capacitors, 5 resistors, 3 ICs, 3 LEDs and 1 crystal.

It belongs with the displays & leds designs in this gallery.

From the project

65% layout PCB with compatible many UDB position

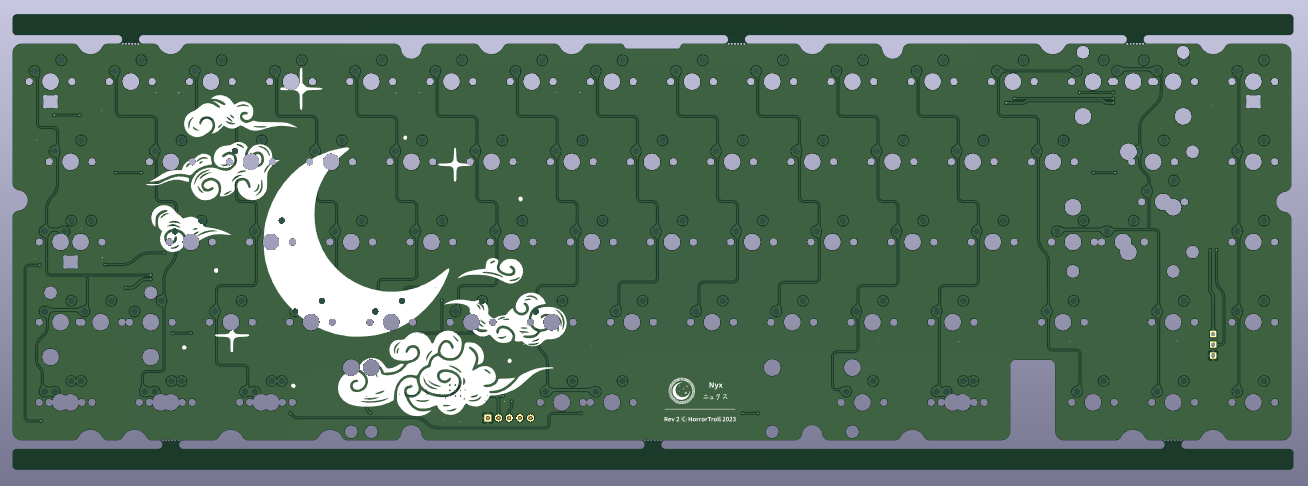

Nyx, from the project README
From the project README

Main components on the Nyx

ZD25Q80BNIGRIS31FL3729-QFRP2040

Nyx bill of materials (BOM)

107 components, 20 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ZD25Q80BNIGR
U1
1
IS31FL3729-QF
74LVC1G17
U2
1
RP2040
U3
1
12MHZ
12Mhz
Y1
1
C240847
USB DTB
J1
1
SRV05-4
ESD1
1
500MA
500mA
F1
1
XC6206P332MR
RG1
1
BOOT
SW1
3
MHT151RGBCT
SK6812MINI-E
LED1, LED2, LED3
67
1N4148W
D1, D2, D3, D4, D5, D6, D7, D8 +59
2
1N4148W
D68, D69
2
22P
22p
C1, C13
12
100N
100n
C2, C4, C5, C6, C7, C8, C9, C10 +4
1
10U
10u
C3
4
1u
C14, C15, C17, C18
2
100n
C19, C21
2
1k
R1, R2
1
10K
10k
R3
2
27R
R4, R5

Nyx design files

The KiCad project lives in the HorrorTroll/Nyx repository on GitHub; these links point at the commit this page was built from.

Nyx: common questions

What microcontroller does the Nyx use?

The Nyx is built around the RP2040, from the RP2040/RP2350 family.

How big is the Nyx PCB?

The Nyx measures 304.3 × 108.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Nyx?

107 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Nyx design files?

From the HorrorTroll/Nyx repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Nyx design in my own project?

Yes, under the terms of its GPL-2.0 license, which HorrorTroll chose for the repository.

Can I test firmware for the Nyx without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
