About the Autonomous-Garden-Rover PCB

Autonomous-Garden-Rover is an open source ESP32 PCB design by houseofthe051010, published on GitHub under the MIT license. It is a 4-layer board measuring 108 × 168 mm, with 217 components from 105 distinct parts.

Its main chip is the ESP32-P4NRW32X QFN104, from the ESP32 family. Other key parts include the W25Q128JVSIQ, ESP32-C6-MINI-1-H4 PCB ANTENNA, TLV62569 P4 CORE DCDC, A4988SETTR-T AXIS1 and A4988SETTR-T AXIS2. By type, the board carries 92 capacitors, 47 resistors, 19 ICs, 14 connectors, 11 transistors and 6 diodes.

It belongs with the robotics & motion and sensors designs in this gallery.

From the project

An autonomous garden management system for my garden that waters plants and cuts grass

This is an open source outdoor garden robot that can mow grass and water plants for under $400. It features a powerful 3000 watt C6374 motor for mowing grass with electronic height control, and a large Nema17 turret system for watering at target places that supports a normal garden hose. The rover currently uses a 9 axis IMU + wheel encoders for autonomous function. The brain of this rover is a powerful ESP32-P4, which gives this rover the capability to listen and respond to commands using its built in microphone and speaker.

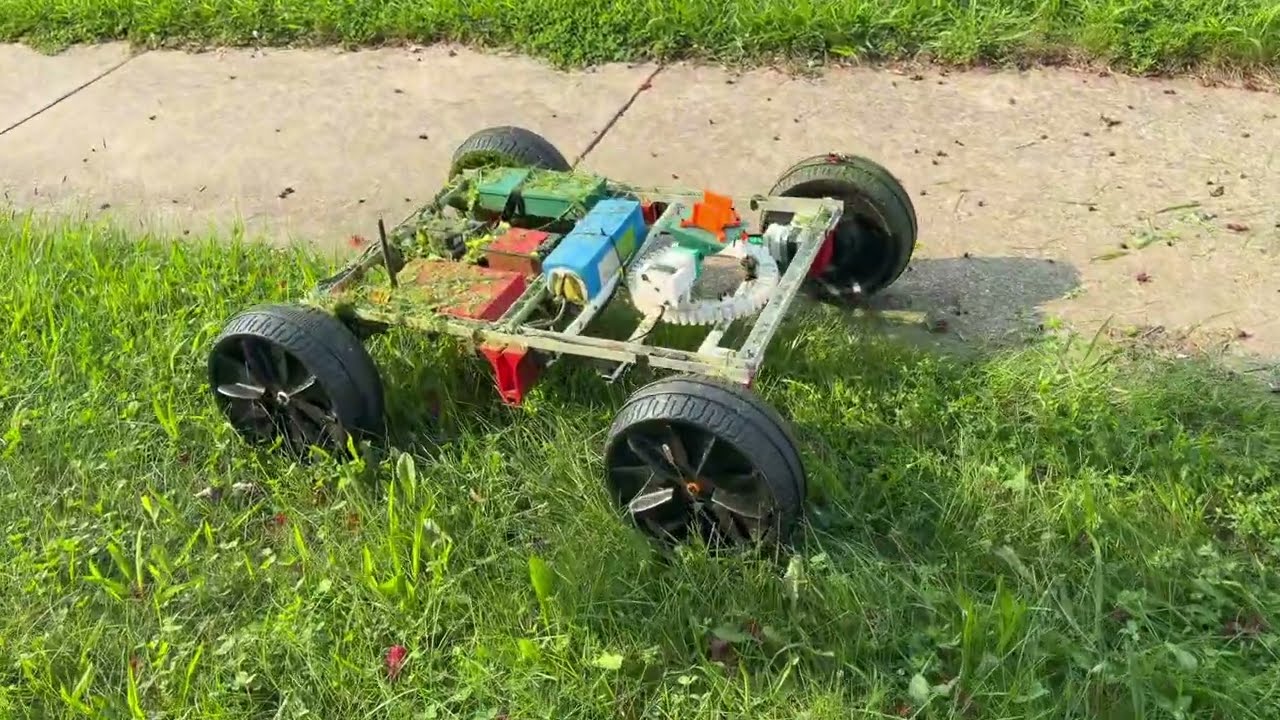

Autonomous-Garden-Rover, from the project README
From the project README

Main components on the Autonomous-Garden-Rover

Autonomous-Garden-Rover bill of materials (BOM)

217 components, 105 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-P4NRW32X QFN104
U10
1
W25Q128JVSIQ
U11
1
ESP32-C6-MINI-1-H4 PCB ANTENNA
U12
1
TLV62569 P4 CORE DCDC
U13
1
A4988SETTR-T AXIS1
U21
1
A4988SETTR-T AXIS2
U22
1
A4988SETTR-T AXIS3
U23
1
A4988SETTR-T AXIS4
U24
1
BTN7960B LEFT HALF-A
U30
1
BTN7960B LEFT HALF-B
U31
1
BTN7960B RIGHT HALF-A
U32
1
BTN7960B RIGHT HALF-B
U33
1
LM5146 42V->24V
U40
1
LM5146 24V->8V
U41
1
MP2315 8V->5V 3A
U42
1
MP2315 5V->3V3 3A
U43
1
AP2112 3V3 SENSOR LDO
U44
1
STM32F405RGT6
U50
1
DRV8301DCAR
U51
1
80V REVERSE-POLARITY FET
Q1
Show 85 more
QtyPartRefs
2
NVMFS6B14NLT1G 100V BUCK
Q40, Q41
8
NTMFS5C628NLT1G 60V MOSFET
Q42, Q43, Q50, Q51, Q52, Q53, Q54, Q55
1
40MHz
Y1
1
8MHz STM32
Y50
1
10S BATTERY
J1
1
USB-C PROGRAM/DEBUG
J2
1
BNO080 BREAKOUT
J3
1
OPEN GPIO
J4
1
USB-C OTG HIGH SPEED
J5
1
STEPPER 1: A+ A- B+ B-
J11
1
STEPPER 2: A+ A- B+ B-
J12
1
STEPPER 3: A+ A- B+ B-
J13
1
STEPPER 4: A+ A- B+ B-
J14
1
LEFT MOTOR
J30
1
RIGHT MOTOR
J32
1
BLDC U V W
J50
1
STM32 SWD
J51
1
ODESC AUX 3V3 GND IO1 IO2 IO3
J52
3
1nF CURRENT SENSE
CCS51, CCS52, CCS53
1
15A INPUT FUSE
F1
3
20R CURRENT SENSE
RCS51, RCS52, RCS53
6
2.2R GATE
RG51, RG52, RG53, RG54, RG55, RG56
6
100k GATE PD
RPD51, RPD52, RPD53, RPD54, RPD55, RPD56
3
0.5mR 3W
RSH50, RSH51, RSH52
1
SMCJ48A TVS
D1
1
USB FS ESD ARRAY
D10
1
USB HS LOW-C ESD
D11
3
60V BOOTSTRAP
D51, D52, D53
1
2.2uH P4 CORE
L13
1
10uH 24V
L40
1
6.8uH 8V
L41
1
4.7uH 5V
L42
4
100uF 35V BULK
C1B, C2B, C3B, C4B
4
100nF VDD
C1C, C2C, C3C, C4C
5
1uF VREG
C1D, C2D, C3D, C4D, C326
4
100nF CP1-CP2
C1E, C2E, C3E, C4E
4
100nF VCP
C1F, C2F, C3F, C4F
2
2.2uF 100V INPUT
C40, C41
2
22uF 35V 24VOUT
C42, C43
2
47uF 16V 8VOUT
C44, C45
1
22uF 10V 5VOUT
C46
1
22uF 6V3 3V3OUT
C47
20
100nF P4 DECOUPLING
C100, C101, C102, C103, C104, C105, C106, C107 +12
1
10uF VDD_LDO
C120
1
10uF VDD_DCDCC
C121
1
4.7uF USBPHY
C122
1
1uF FLASHIO
C123
1
10nF USBPHY
C124
1
10uF VDD_BAT
C125
1
1uF CHIP_PU
C126
2
100nF VCC
C200, C208
2
100nF BST
C201, C209
2
1uF SS
C202, C210
2
1nF COMP
C203, C211
2
100pF COMP
C204, C212
2
470nF BTN SUPPLY
C300, C320
2
220uF 16V DRIVE BULK
C301, C321
2
1nF IS FILTER
C302, C303
2
100nF
C304, C305
2
2.2uF VCAP
C306, C307
1
4.7uF VDDA
C308
1
100nF VDDA
C309
2
18pF XTAL
C310, C311
1
100nF NRST
C312
1
2.2uF AVDD
C322
2
10uF PVDD
C323, C327
1
10nF CP1
C324
1
100nF CP2
C325
3
100nF BOOTSTRAP
C331, C332, C333
3
120uF 50V BLDC BUS
C340, C341, C342
8
0.10R SENSE
R1A, R1B, R2A, R2B, R3A, R3B, R4A, R4B
4
100k ENABLE PD
R1C, R2C, R3C, R4C
4
100k STEP PD
R1D, R2D, R3D, R4D
4
10k IN PD
R30A, R30C, R32A, R32C
4
10k INH PD
R30B, R30D, R32B, R32D
4
1k IS FILTER
R30E, R30F, R32E, R32F
1
10k CHIP_PU
R100
1
10k BOOT
R101
6
0R FLASH TUNING
R102, R103, R104, R105, R106, R107
4
22R USB SERIES
R110, R111, R112, R113
2
10k FB
R205, R213
1
287k FB24
R206
2
10R GATE
R207, R215
1
90.9k FB8
R214
1
10k NRST
R300

Autonomous-Garden-Rover design files

The KiCad project lives in the houseofthe051010/Autonomous-Garden-Rover repository on GitHub; these links point at the commit this page was built from.

Autonomous-Garden-Rover: common questions

What microcontroller does the Autonomous-Garden-Rover use?

The Autonomous-Garden-Rover is built around the ESP32-P4NRW32X QFN104, from the ESP32 family.

How big is the Autonomous-Garden-Rover PCB?

The Autonomous-Garden-Rover measures 108 × 168 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Autonomous-Garden-Rover?

217 components, from 105 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Autonomous-Garden-Rover design files?

From the houseofthe051010/Autonomous-Garden-Rover repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Autonomous-Garden-Rover design in my own project?

Yes, under the terms of its MIT license, which houseofthe051010 chose for the repository.

Can I test firmware for the Autonomous-Garden-Rover without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
