Ehymnboard

iBelieve·ehymnboard·hardware/eHymnBoard.kicad_pcb

Ehymnboard PCB layout, top view — open source RP2040/RP2350 board by iBelieve
Simulate this board

About the Ehymnboard PCB

Ehymnboard is an open source RP2040/RP2350 PCB design by iBelieve, published on GitHub. It is a 2-layer board measuring 44 × 54 mm, with 4 components from 2 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. By type, the board carries 3 connectors and 1 IC.

It belongs with the displays & leds designs in this gallery.

From the project

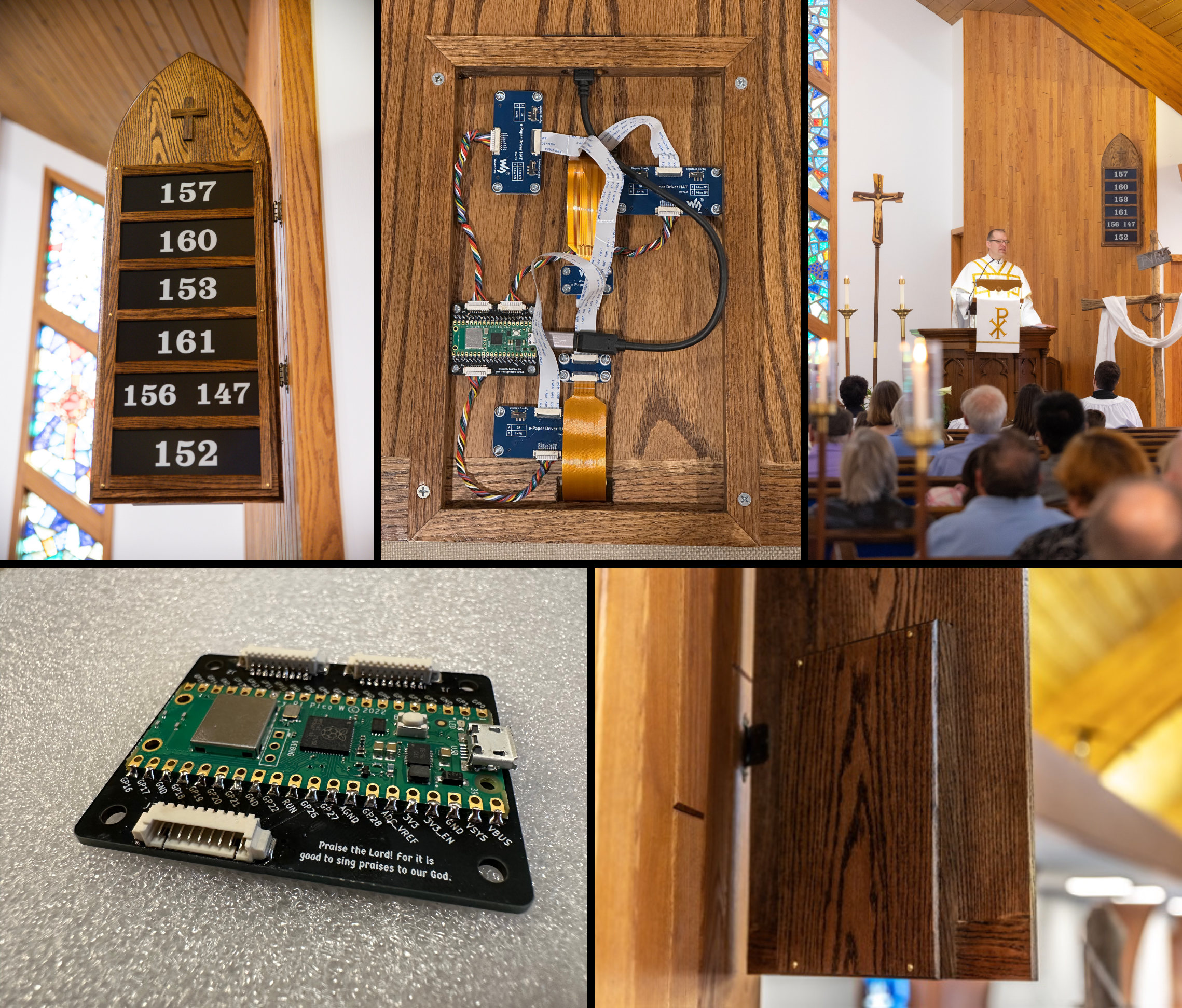

e-ink hymn board for churches

A digital hymn board using e-ink screens. Designed and built by Michael Spencer and Christopher Spencer. First used in the Divine Service on Easter Sunday, A+D 2025.

This was a really interesting opportunity to explore how we might leverage modern technology in an anti-technology, anti-screens way. Hymn boards are a beautiful contrast to the modern trend of putting big distracting glowing screens in the front of the sanctuary by directing the congregation to a hymnal, a physical book with a collection of beloved time-tested hymns, a book that belongs not just in the sanctuary but in the home…

Ehymnboard, from the project README
From the project README

Main components on the Ehymnboard

Pico

Ehymnboard bill of materials (BOM)

4 components, 2 distinct parts.

QtyPartRefs
1
Pico
U1
3
PicoBlade
J1, J2, J3

Ehymnboard design files

The KiCad project lives in the iBelieve/ehymnboard repository on GitHub; these links point at the commit this page was built from.

Ehymnboard: common questions

What microcontroller does the Ehymnboard use?

The Ehymnboard is built around the Pico, from the RP2040/RP2350 family.

How big is the Ehymnboard PCB?

The Ehymnboard measures 44 × 54 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Ehymnboard?

4 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Ehymnboard design files?

From the iBelieve/ehymnboard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Ehymnboard design in my own project?

The repository has no license, so all rights stay with iBelieve. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Ehymnboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
