Iceskate PCB layout, top view — open source STM32 board by icerink

About the Iceskate PCB

Iceskate is an open source STM32 PCB design by icerink, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 23.6 × 57.7 mm, with 37 components from 20 distinct parts.

Its main chip is the STM32F070F6P6, from the STM32 family. Other key parts include the ICE40UP5K-SG48, LD1117S33TR_SOT223 and LD1117S12TR_SOT223. By type, the board carries 19 capacitors, 4 ICs, 4 resistors, 3 connectors, 2 jumpers and 2 diodes.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

A low cost FPGA development board for absolute newbies

A low cost FPGA development board for absolute newbies.

The icerink ecosystem tries to exploit this by building a complete browser centric FPGA workflow. Edit, synthesize and upload FPGA designs from within your browser.

Doing this lowers the boarding hurdle by not requiring the installation of toolchains. Just plug in the board and begin to play :).

The main source of inspiration for this board was the upduino by Gnarly Grey. We tried to build a similarly minimal and cheap board. The main Hardware feature, our board employs additionally, is the Microcontroller that is capable of speaking…

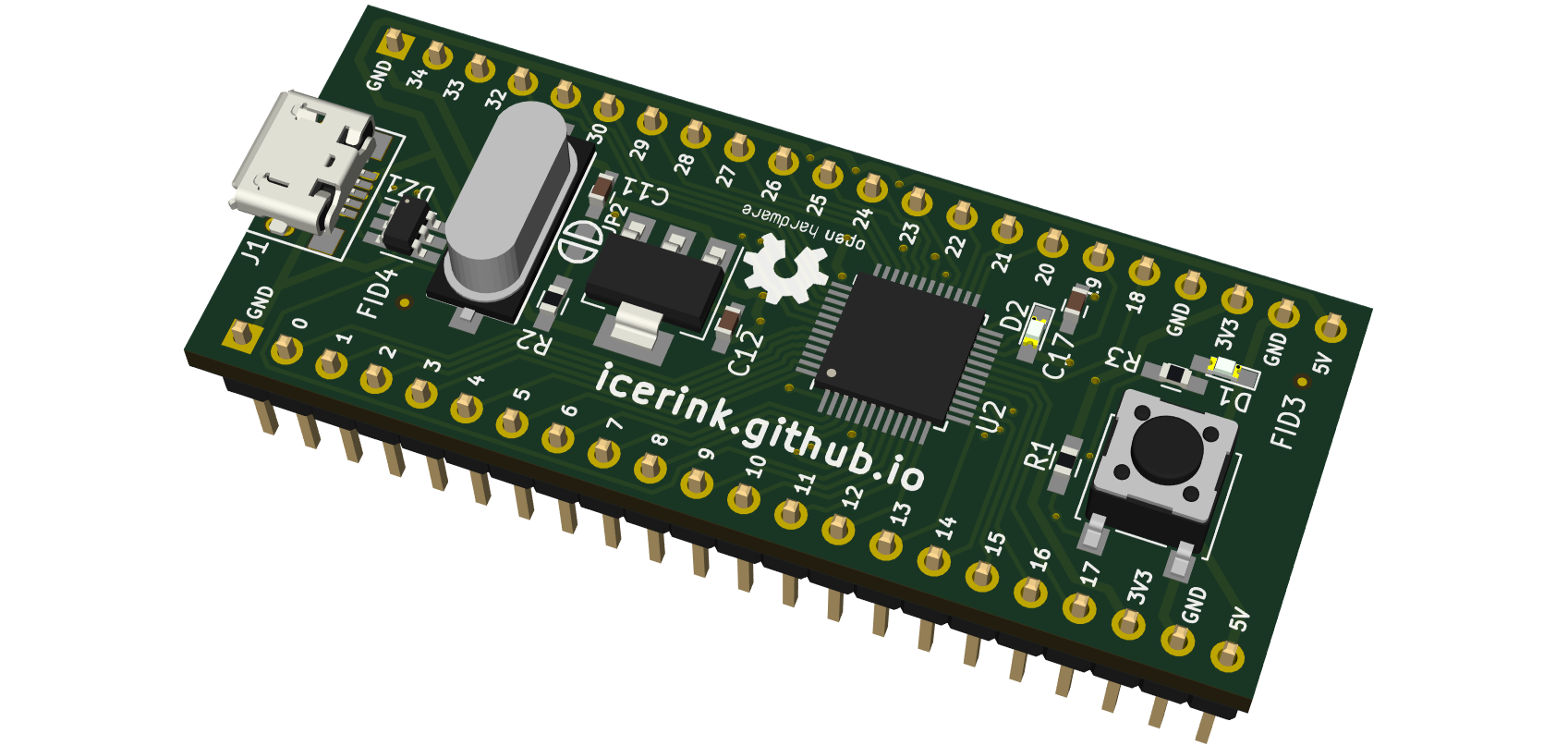

Iceskate, from the project README
From the project README

Main components on the Iceskate

STM32F070F6P6ICE40UP5K-SG48LD1117S33TR_SOT223LD1117S12TR_SOT223

Iceskate bill of materials (BOM)

37 components, 20 distinct parts.

QtyPartRefs
1
STM32F070F6P6
U1
1
ICE40UP5K-SG48
U2
1
LD1117S33TR_SOT223
U3
1
LD1117S12TR_SOT223
U4
1
8MHz
Y1
1
USB_OTG
J1
2
Conn_01x22
J3, J4
1
USBLC6-2SC6
DZ1
1
Jumper_NC_Dual
JP1
1
Jumper
JP2
1
SW_Push
SW1
1
LED
D1
1
D
D2
2
C
C1, C2
10
1µ
C3, C6, C7, C10, C11, C12, C13, C14 +2
5
0.1µ
C4, C5, C8, C9, C15
2
22p
C18, C19
2
10k
R1, R2
1
100
R3
1
10
R4

Iceskate design files

The KiCad project lives in the icerink/iceskate repository on GitHub; these links point at the commit this page was built from.

Iceskate: common questions

What microcontroller does the Iceskate use?

The Iceskate is built around the STM32F070F6P6, from the STM32 family.

How big is the Iceskate PCB?

The Iceskate measures 23.6 × 57.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Iceskate?

37 components, from 20 distinct parts. The full bill of materials is listed on this page.

Where can I download the Iceskate design files?

From the icerink/iceskate repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Iceskate design in my own project?

Yes, under the terms of its CERN-OHL-1.2 license, which icerink chose for the repository.

Can I test firmware for the Iceskate without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
