AM32 AI8051U PCB layout, top view — open source board by Icey7122

About the AM32 AI8051U PCB

AM32 AI8051U is an open source PCB design by Icey7122, published on GitHub. It is a 2-layer board measuring 68.5 × 84.2 mm, with 110 components from 36 distinct parts.

Other key parts include the STC8051U-32KX, EG2181, TPS5450, RT9048 and MT3608. By type, the board carries 34 resistors, 32 capacitors, 19 diodes, 9 ICs, 6 transistors and 6 connectors.

It belongs with the usb & debug tools designs in this gallery.

From the project

Using PWMA to output 3 sets of complementary PWM for driving MOSFEET, Using PWMB for capturing external throttle signals, Using ADC to sample voltage and current, for low voltage protection and over current protection(But I'm not done yet). Using internal OPA and BEMF to estimate

Using PWMA to output 3 sets of complementary PWM for driving MOSFEET, Using PWMB for capturing external throttle signals, Using ADC to sample voltage and current, for low voltage protection and over current protection(But I'm not done yet). Using internal OPA and BEMF to estimate rotor position. TMR0 and TMR1 is used to calculate commutation time and motor timing.TMR2 is used for the serial port. TMR3 and TMR11 are used for the delay function (in fact, only one is needed). TMR4 is used to complete some periodic tasks.

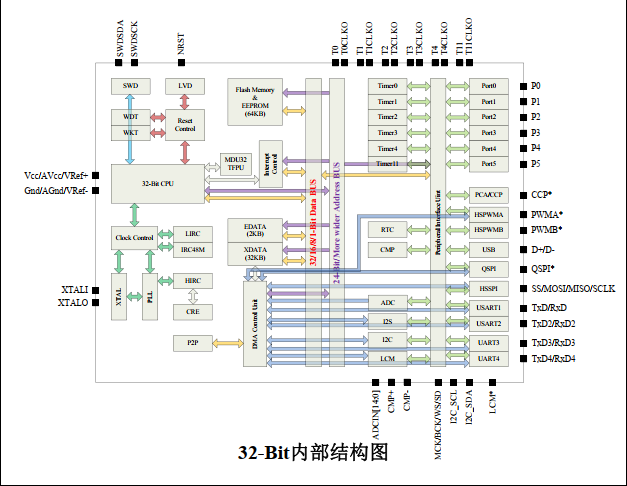

AM32 AI8051U, from the project README
From the project README

Main components on the AM32 AI8051U

STC8051U-32KXEG2181TPS5450RT9048MT3608INA199XXDCKCH330N

AM32 AI8051U bill of materials (BOM)

110 components, 36 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STC8051U-32KX
STC8051U-32Kx
U1
3
EG2181
U2, U3, U4
1
TPS5450
U5
1
RT9048
U6
1
MT3608
U7
1
INA199XXDCK
INA199xxDCK
U8
1
CH330N
U9
6
TPH1R005PL
Q1, Q2, Q3, Q4, Q5, Q6
2
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1, J6
4
CONN_01X03_PIN
Conn_01x03_Pin
J2, J3, J4, J5
2
SW_Push
SW1, SW2
11
SS54
D1, D4, D5, D6, D9, D10, D11, D14 +3
6
1N5819
D2, D3, D7, D8, D12, D13
2
LED
D18, D19
2
10UH
10uH
L1, L2
7
0.1UF
0.1uF
C1, C19, C20, C28, C29, C30, C31
3
10UF
10uF
C2, C24, C26
1
1UF
1uF
C3
3
C
C4, C9, C14
3
C
C5, C10, C15
Show 16 more
QtyPartRefs
9
C
C6, C7, C8, C11, C12, C13, C16, C17 +1
2
4.7UF
4.7uF
C21, C27
1
330UF
330uF
C22
1
0.01UF
0.01uF
C23
1
100NF
100nF
C25
1
C_Polarized
C32
1
0R
R1
6
1K
R2, R3, R4, R27, R28, R29
11
10K
R5, R6, R7, R8, R9, R10, R17, R20 +3
6
10R
R11, R12, R13, R14, R15, R16
1
2.6K
R18
1
1.11K
R19
1
6.38K
R21
1
100K
R22
5
5.1K
R23, R24, R26, R31, R32
1
R_2512
R25

AM32 AI8051U design files

The KiCad project lives in the Icey7122/AM32_AI8051U repository on GitHub; these links point at the commit this page was built from.

AM32 AI8051U: common questions

How big is the AM32 AI8051U PCB?

The AM32 AI8051U measures 68.5 × 84.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AM32 AI8051U?

110 components, from 36 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the AM32 AI8051U design files?

From the Icey7122/AM32_AI8051U repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the AM32 AI8051U design in my own project?

The repository has no license, so all rights stay with Icey7122. Use it as a reference, and ask the author before reusing the design.
