STM32 ESP32 IoT AirHumidifier firmware hardware PCB layout, top view — open source ESP32 board by igokraj

About the STM32 ESP32 IoT AirHumidifier firmware hardware PCB

STM32 ESP32 IoT AirHumidifier firmware hardware is an open source ESP32 PCB design by igokraj, published on GitHub under the MIT license. It is a 2-layer board measuring 48 × 62 mm, with 43 components from 27 distinct parts.

Its main chip is the C2913201, from the ESP32 family. Other key parts include the C6186 and C69336. By type, the board carries 16 capacitors, 12 resistors, 5 connectors, 3 ICs, 2 LEDs and 2 diodes.

It belongs with the iot & wireless and sensors designs in this gallery.

From the project

IoT Air humidifier controller built around two microcontrollers: an STM32F446RE and an ESP32-S3

Projekt zakładał stworzenie sterownika nawilżacza powietrza opartego na dwóch mikrokontrolerach STM32F446RE oraz ESP32-S3. STM32 odpowiada za sterowanie wentylatorem sygnałem PWM, obsługę czujników oraz maszynę stanów, na której opiera się działanie systemu. ESP32 służy wyłącznie do połączenia urządzenia z Wi-Fi, a następnie chmurą AWS IoT Core (Amazon) poprzez protokół MQTT.

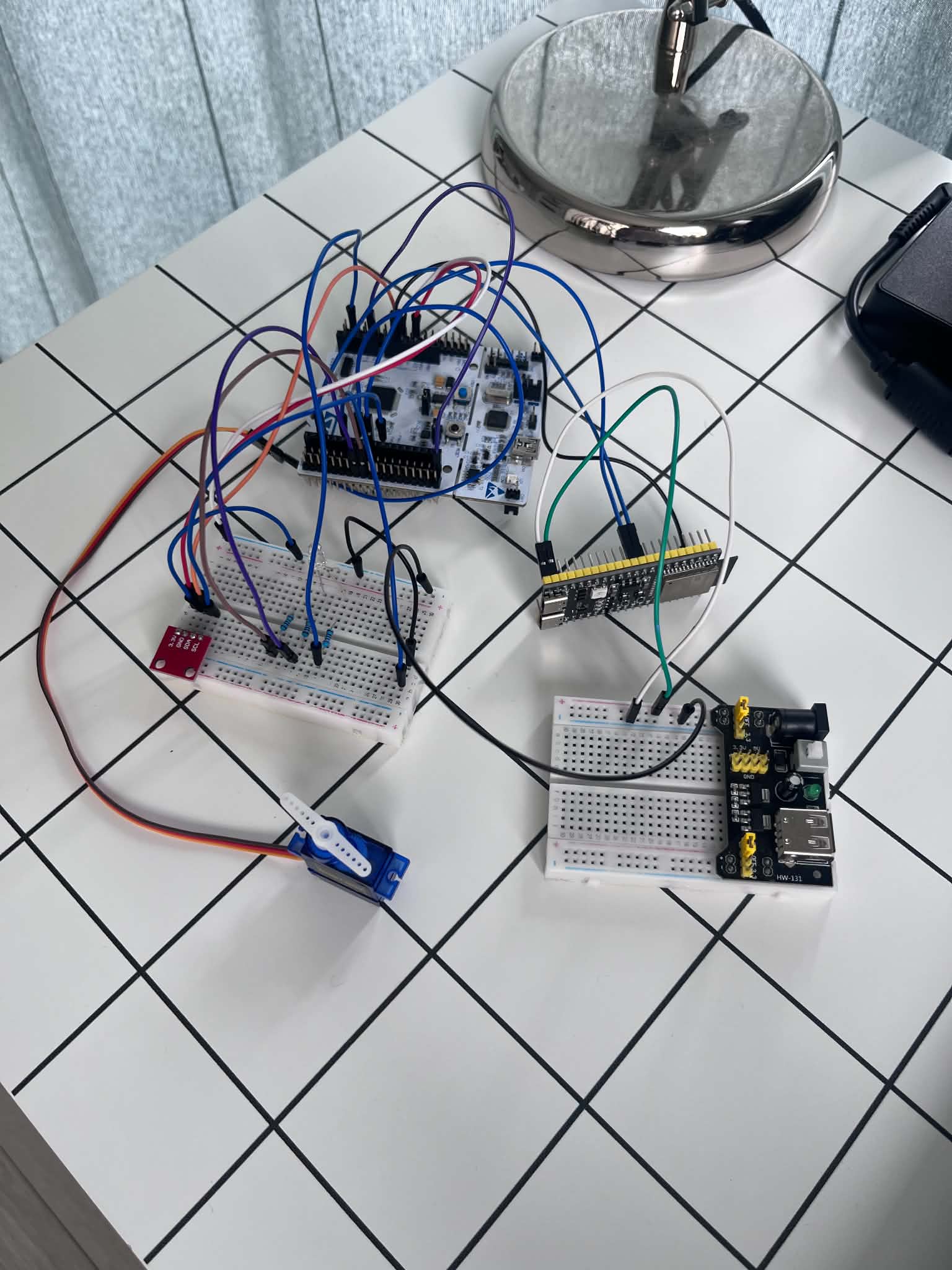

STM32 ESP32 IoT AirHumidifier firmware hardware, from the project README
From the project README

Main components on the STM32 ESP32 IoT AirHumidifier firmware hardware

C6186C69336C2913201

STM32 ESP32 IoT AirHumidifier firmware hardware bill of materials (BOM)

43 components, 27 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C6186
AMS1117-3.3_SOT223
U1
1
C69336
STM32F446RETx
U2
1
C2913201
ESP32-S3-WROOM-1
U3
1
Barrel_Jack
J1
2
Conn_01x04_Pin
J2, J5
1
Screw_Terminal_01x02
J3
1
Conn_02x03_Odd_Even
J4
1
C49318453
1812L150/24
F1
1
Conn_01x04_Pin
STLink1
1
LED
LED1
1
LED_ARGB
RGB1
1
C64982
B340_SMA
D1
1
C83846
SMBJ15A
D2
1
C141723
BEAD(FCM1608KF-601T03)
L1
1
C2158829
10uF
C1
1
C7171
10uF
C2
9
C49678
100nF
C3, C4, C5, C6, C7, C10, C11, C12 +1
1
C11369
4.7uF
C8
1
C7174
1uF
C9
1
C45783
22uF
C13
Show 7 more
QtyPartRefs
1
C28323
1uF
C15
1
C1779
4.7uF
C16
1
C17520
2.2k
R1
4
C17630
330
R2, R10, R11, R12
4
C17414
10k
R3, R5, R8, R9
1
C17513
1k
R4
2
C17673
4.7k
R6, R7

STM32 ESP32 IoT AirHumidifier firmware hardware design files

The KiCad project lives in the igokraj/STM32_ESP32_IoT_AirHumidifier_firmware_hardware repository on GitHub; these links point at the commit this page was built from.

STM32 ESP32 IoT AirHumidifier firmware hardware: common questions

What microcontroller does the STM32 ESP32 IoT AirHumidifier firmware hardware use?

The STM32 ESP32 IoT AirHumidifier firmware hardware is built around the C2913201, from the ESP32 family.

How big is the STM32 ESP32 IoT AirHumidifier firmware hardware PCB?

The STM32 ESP32 IoT AirHumidifier firmware hardware measures 48 × 62 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the STM32 ESP32 IoT AirHumidifier firmware hardware?

43 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the STM32 ESP32 IoT AirHumidifier firmware hardware design files?

From the igokraj/STM32_ESP32_IoT_AirHumidifier_firmware_hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the STM32 ESP32 IoT AirHumidifier firmware hardware design in my own project?

Yes, under the terms of its MIT license, which igokraj chose for the repository.

Can I test firmware for the STM32 ESP32 IoT AirHumidifier firmware hardware without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
