U passive mlt

ijnekenamay·Passive_modules·u_passive_mlt/u_passive_mlt.kicad_pcb

U passive mlt PCB layout, top view — open source board by ijnekenamay
Simulate this board

About the U passive mlt PCB

U passive mlt is an open source PCB design by ijnekenamay, published on GitHub. It is a 2-layer board measuring 44.8 × 39.3 mm, with 3 components from 3 distinct parts.

It belongs with the audio designs in this gallery.

From the project

This is a passive outboard device for modular synths and can be used a "bare"PCB.

- This is a simple circuit mainly for mixing GATE/TRIGGER. - It is 8in and 1out. - P&P file and BOM are included so that you can use SMT assembly with JLCPCB etc. - I use a 3.5mm stereo jack called PJ311. Unnecessary pins for stereo are floated. If you need a large quantity, you can purchase it from Aliexpress under the part number PJ342. - It has actually been manufactured and is working well.

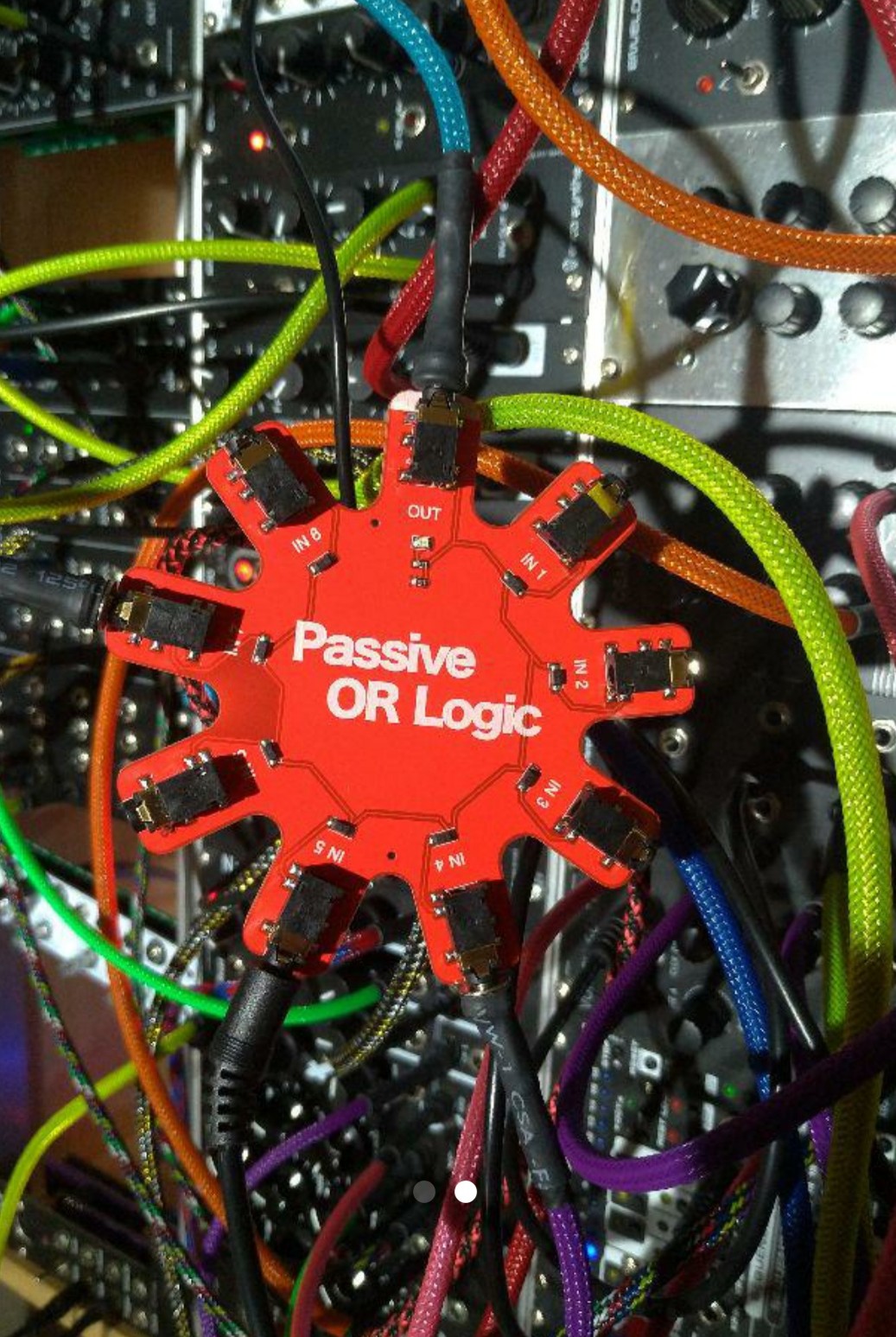

U passive mlt, from the project README
From the project README

U passive mlt bill of materials (BOM)

3 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
1
J1
1
2
J2
1
3
J3

U passive mlt design files

The KiCad project lives in the ijnekenamay/Passive_modules repository on GitHub; these links point at the commit this page was built from.

U passive mlt: common questions

How big is the U passive mlt PCB?

The U passive mlt measures 44.8 × 39.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the U passive mlt?

3 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the U passive mlt design files?

From the ijnekenamay/Passive_modules repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the U passive mlt design in my own project?

The repository has no license, so all rights stay with ijnekenamay. Use it as a reference, and ask the author before reusing the design.
