GP2040-Converter

InfraredAces·GP2040-CE-projects·GP2040 Keyboard Converter/Waveshare Zero-PCB/kicad/GP2040-Converter.kicad_pcb

GP2040-Converter PCB layout, top view — open source RP2040/RP2350 board by InfraredAces

About the GP2040-Converter PCB

GP2040-Converter is an open source RP2040/RP2350 PCB design by InfraredAces, published on GitHub. It is a 2-layer board measuring 68 × 30.4 mm, with 8 components from 4 distinct parts.

Its main chip is the RP2040-Zero, from the RP2040/RP2350 family. By type, the board carries 6 switches and 1 connector.

From the project

Various GP2040-CE Hardware Projects and Accessories

The following text must be included in any distribution of derivatives of this board. All links must also be included.

Changes from the original design: - list any changes you make here

The GP2040-CE Keyboard Converter is designed to be a USB Host Device for the use of a keyboard with the GP2040-CE project. The end result is a device that allows you to play on a keyboard, but have it registered as a GP2040-CE controller, whether that is XInput, DInput, PS4, or Switch.

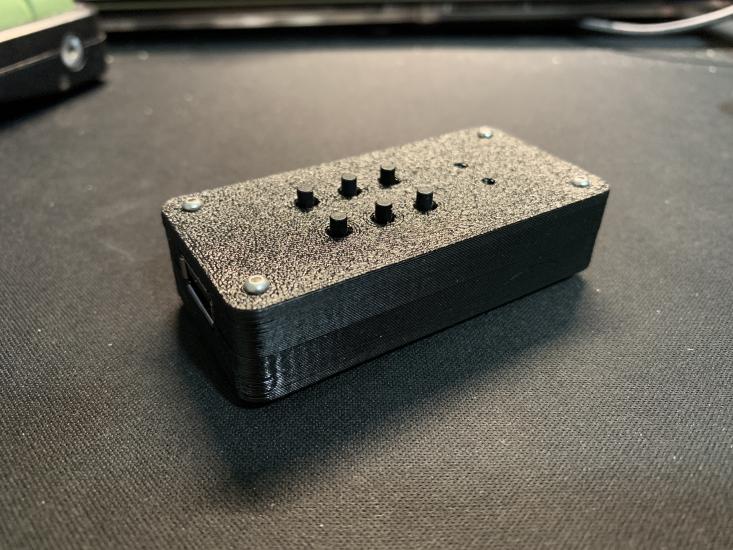

GP2040-Converter, from the project README
From the project README

GP2040-Converter bill of materials (BOM)

8 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
CONN_01X05
USB_A
J1
1
RP2040-Zero
RZ1
3
C329185
SW_Push_Open
SW1, SW2, SW3
3
SW_Push_Open
SW4, SW5, SW6

GP2040-Converter design files

The KiCad project lives in the InfraredAces/GP2040-CE-projects repository on GitHub; these links point at the commit this page was built from.

GP2040-Converter: common questions

What microcontroller does the GP2040-Converter use?

The GP2040-Converter is built around the RP2040-Zero, from the RP2040/RP2350 family.

How big is the GP2040-Converter PCB?

The GP2040-Converter measures 68 × 30.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the GP2040-Converter?

8 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the GP2040-Converter design files?

From the InfraredAces/GP2040-CE-projects repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the GP2040-Converter design in my own project?

The repository has no license, so all rights stay with InfraredAces. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the GP2040-Converter without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
