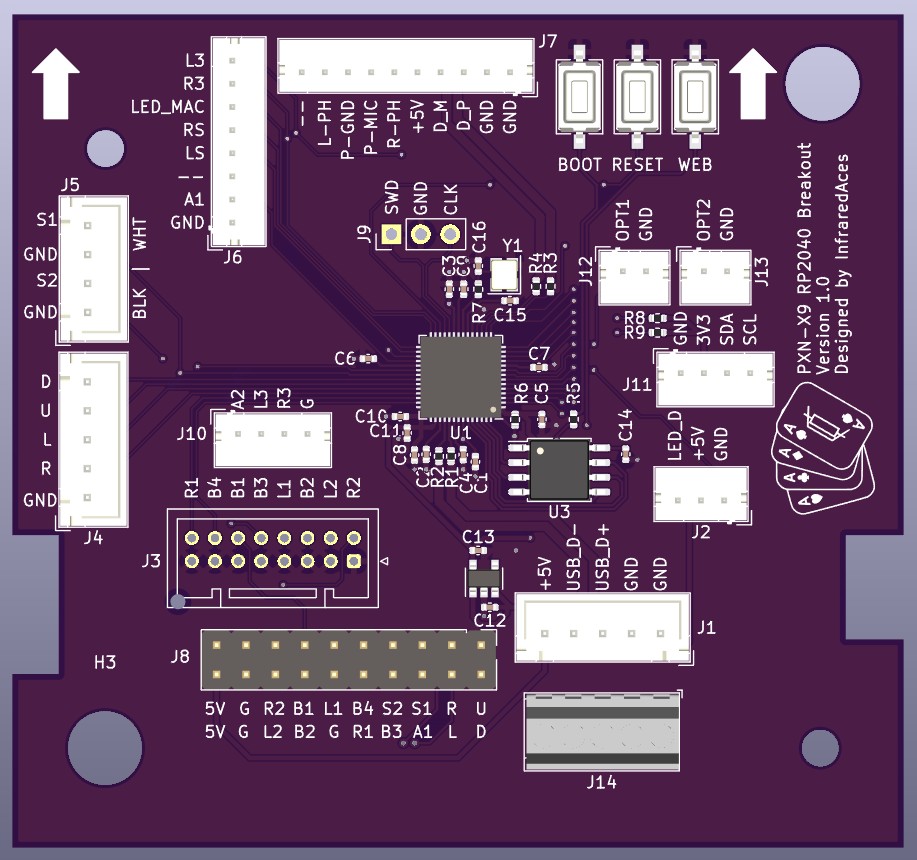

PXN-X9-GP2040-CE PCB layout, top view — open source RP2040/RP2350 board by InfraredAces

About the PXN-X9-GP2040-CE PCB

PXN-X9-GP2040-CE is an open source RP2040/RP2350 PCB design by InfraredAces, published on GitHub. It is a 2-layer board measuring 77 × 72 mm, with 45 components from 23 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the TLV73333PDBV and W25Q128JVS. By type, the board carries 16 capacitors, 13 connectors, 9 resistors, 3 ICs, 3 switches and 1 crystal.

It belongs with the displays & leds designs in this gallery.

From the project

Various GP2040-CE Hardware Projects and Accessories

The following text must be included in any distribution of derivatives of this board. All links must also be included.

These boards are meant to act as drop in replacements of the boards found in a PXN-X9 Arcade Stick. They use the stock cables in the controller with additional pins and headers depending on desired features.

- OLED Display - Optional Pin 1 (GPIO Pin) - Optional Pin 2 (GPIO Pin) - 2 Additional GPIO Pins through Microphone Port

PXN-X9-GP2040-CE, from the project README
From the project README

Main components on the PXN-X9-GP2040-CE

RP2040TLV73333PDBVW25Q128JVS

PXN-X9-GP2040-CE bill of materials (BOM)

45 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2040
U1
1
TLV73333PDBV
U2
1
W25Q128JVS
U3
1
CRYSTAL_GND24
Crystal_GND24
Y1
2
CONN_01X05
Conn_01x05
J1, J4
1
CONN_01X03
Conn_01x03
J2
1
CONN_02X08_COUNTER_CLOCKWISE
Conn_02x08_Counter_Clockwise
J3
1
CONN_01X04
Conn_01x04
J5
1
CONN_01X08
Conn_01x08
J6
1
CONN_01X10
Conn_01x10
J7
1
CONN_02X10_ODD_EVEN
Conn_02x10_Odd_Even
J8
2
CONN_01X04
Conn_01x04
J10, J11
2
CONN_01X02
Conn_01x02
J12, J13
1
SCREW_TERMINAL_01X05
Screw_Terminal_01x05
J14
3
C329185
SW_Push_Open
SW1, SW2, SW3
10
100N
100n
C1, C3, C4, C5, C6, C7, C9, C10 +2
4
1u
C2, C8, C12, C13
2
15P
15p
C15, C16
2
27
R1, R2
2
22
R3, R4
Show 3 more
QtyPartRefs
2
1k
R5, R7
1
10K
10k
R6
2
4.7K
R8, R9

PXN-X9-GP2040-CE design files

The KiCad project lives in the InfraredAces/GP2040-CE-projects repository on GitHub; these links point at the commit this page was built from.

PXN-X9-GP2040-CE: common questions

What microcontroller does the PXN-X9-GP2040-CE use?

The PXN-X9-GP2040-CE is built around the RP2040, from the RP2040/RP2350 family.

How big is the PXN-X9-GP2040-CE PCB?

The PXN-X9-GP2040-CE measures 77 × 72 mm, has 2 copper layers and is 1.69 mm thick.

How many components are on the PXN-X9-GP2040-CE?

45 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PXN-X9-GP2040-CE design files?

From the InfraredAces/GP2040-CE-projects repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the PXN-X9-GP2040-CE design in my own project?

The repository has no license, so all rights stay with InfraredAces. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the PXN-X9-GP2040-CE without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
