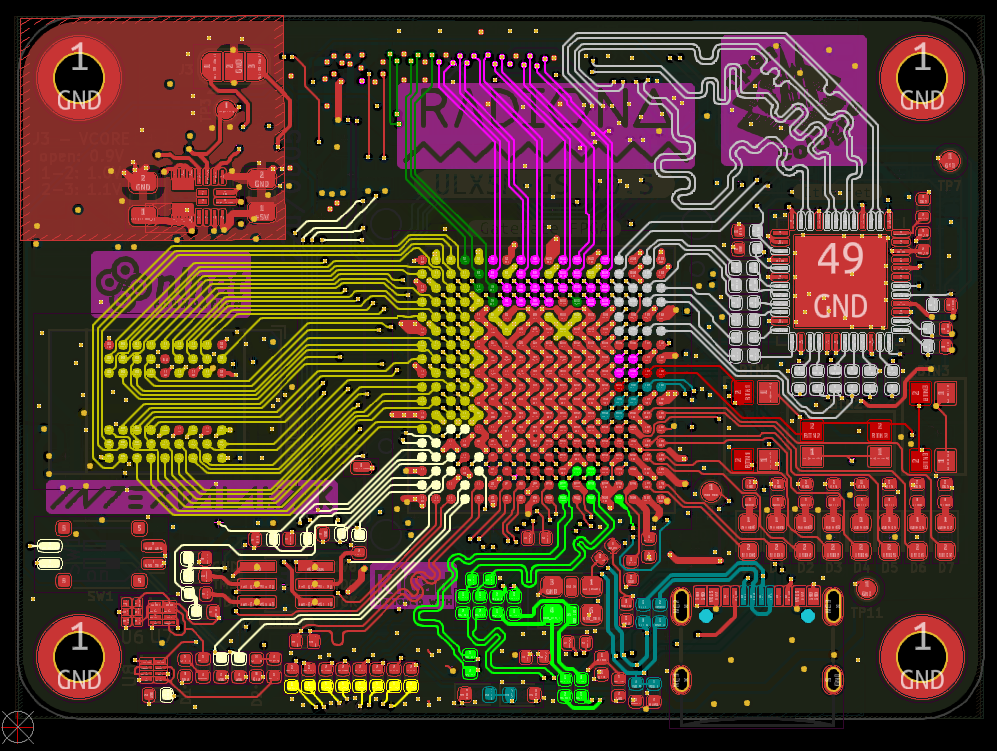

Ulx5m gs
About the Ulx5m gs PCB
Ulx5m gs is an open source PCB design by intergalaktik, published on GitHub under the Custom license license. It is a 6-layer board measuring 55 × 40 mm, with 272 components from 54 distinct parts.
Other key parts include the TLV62569DBVR, MPM3833CGRH-Z, CCGM1A1-BGA324, 74LVC1G04GM,115 and 74LVC2G00HK3-7. By type, the board carries 120 capacitors, 108 resistors, 16 diodes, 11 ICs, 6 inductors and 3 connectors.
It belongs with the usb & debug tools designs in this gallery.
From the project
ULX5M with GateMate with SDRAM
While testing LVDS I wanted to check if we can have VGA over GPIO and it looks OK
Power regulators MPM3833C 0.9V..1.1V Vcore, 3A TI62569 1.2V, 1.8V, 2.5V, 3.3V V_io, 2A
GateMate compatibility to A1 - A2 is not tested ext. clock: 100 MHz lvds (can be used for both serdes and pll) ext. clock: 25MHz programmer interface usb-c connector * select between flash and jtag config (DIP switch)
Main components on the Ulx5m gs
Ulx5m gs bill of materials (BOM)
272 components, 54 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | TLV62569DBVR TLV62569DBV | SOT-23-5 | U1, U2, U5 |
| 1 | MPM3833CGRH-Z | MPM3833CGRH-Z | U3 |
| 1 | CCGM1A1-BGA324 GateMate-CCGM1A1 | BGA-324_15.0x15.0mm_Layout18x18_P0.8mm_Ball0.45mm_Pad0.4mm_NSMD | U4 |
| 1 | 74LVC1G04GM,115 | PESD3V3L5UF115 | U6 |
| 2 | 74LVC2G00HK3-7 | 74LVC2G00HK37 | U7, U8 |
| 1 | AT25QL321-MBUE-T | SON80P400X300X60-10N | U9 |
| 1 | IS42VM16320E-75BLI | IS42S16320D-6BLI | U10 |
| 1 | KSZ9031RNXCA | QFN-48-1EP_7x7mm_P0.5mm_EP5.15x5.15mm | U14 |
| 2 | BSS138 | SOT-523 | Q1, Q2 |
| 1 | 511FCA100M000BAG | Oscillator_SMD_SiTime_PQFD-6L_3.2x2.5mm | X2 |
| 1 | ASE2-25.000MHZ-L-C-T | Crystal_SMD_TXC_7M-4Pin_3.2x2.5mm | Y1 |
| 2 | DF40C-100DP-0.4V_51 DF40C-100DP-0.4V_51_ | HRS_DF40C-100DP-0.4V_51_ | J1, J2 |
| 1 | USB4215-03-A USB_C_Receptacle | USB-C_16 | J5 |
| 3 | EVP-AA302K SW_Push | Switch_EVPAA | BTN1, BTN2, BTN3 |
| 1 | CVS-02TB | SW_DIP_SPSTx02_Slide_Copal_CVS-02xB_W5.9mm_P1mm | SW1 |
| 1 | SM0402GC green | D_0402_1005Metric | D1 |
| 1 | SM0402RC red | D_0402_1005Metric | D2 |
| 2 | BZT52C3V6T-7 3.6V | D_SOD-523 | D3, D4 |
| 4 | 1N914BWT 1N914 | D_SOD-523 | D5, D6, D7, D8 |
| 8 | LTST-C190KRKT LED | LED_0603_1608Metric | D9, D10, D11, D12, D13, D14, D15, D16 |
Show 34 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | BLM18PG121SN1D | L_0603_1608Metric | FB1, FB2, FB3 |
| 3 | DFE322512F-2R2M=P2 | L_1008_2520Metric | L1, L2, L3 |
| 2 | CL21A226KPCLRNC 22u/0805 | C_0805_2012Metric | C1, C10 |
| 4 | CC0402MRX5R6BB475 4u7 | C_0402_1005Metric | C2, C3, C11, C115 |
| 14 | CL05B103KB5NNNC 10n | C_0402_1005Metric | C4, C15, C18, C23, C28, C32, C35, C38 +6 |
| 7 | CL05A106MQ5NUNC 10u | C_0402_1005Metric | C6, C7, C24, C104, C105, C109, C114 |
| 3 | CL05A105KA5NQNC 1u | C_0402_1005Metric | C8, C9, C29 |
| 17 | CL05A225MQ5NSNC 2u2 | C_0402_1005Metric | C13, C16, C21, C26, C36, C44, C51, C54 +9 |
| 45 | GRM155R60J104KA01D 100n | C_0402_1005Metric | C14, C17, C22, C27, C31, C34, C37, C40 +37 |
| 14 | CL05B224KO5NNNC 220n | C_0402_1005Metric | C33, C59, C60, C61, C62, C63, C64, C65 +6 |
| 9 | CL05A226MQ5N6J8 22u | C_0402_1005Metric | C39, C43, C50, C53, C58, C77, C98, C124 +1 |
| 1 | CL05A225MQ5NSNC 2.2uF | C_0402_1005Metric | C85 |
| 4 | GRM155R60J223KA01D 22nF | C_0402_1005Metric | C99, C101, C140, C141 |
| 3 | RC0402FR-07100KL 100k | R_0402_1005Metric | R1, R4, R5 |
| 1 | AC0402FR-0751KL 51k | R_0402_1005Metric | R2 |
| 3 | RC0402FR-07200KL 200k | R_0402_1005Metric | R3, R17, R18 |
| 1 | CRCW040222K0FKED 22k | R_0402_1005Metric | R6 |
| 5 | AC0402FR-070RL 0R | R_0402_1005Metric | R7, R8, R116, R141, R142 |
| 4 | AC0402FR-070RL 0R/0603 | R_0603_1608Metric | R10, R11, R13, R21 |
| 1 | RC0402FR-0740K2L 40.2k | R_0402_1005Metric | R12 |
| 1 | AC0402FR-07120KL 120k | R_0402_1005Metric | R14 |
| 1 | AC0402FR-0720KL 20k | R_0402_1005Metric | R15 |
| 1 | RC0402FR-0760K4L 60k | R_0402_1005Metric | R16 |
| 3 | AC0603FR-071RL 1R | R_0603_1608Metric | R23, R105, R106 |
| 10 | RC0402FR-0710KL 10k | R_0402_1005Metric | R24, R25, R27, R29, R30, R111, R128, R134 +2 |
| 7 | RC0402FR-07200RL 200R | R_0402_1005Metric | R31, R32, R109, R147, R148, R149, R150 |
| 17 | RC0402JR-104K7L 4k7 | R_0402_1005Metric | R33, R34, R35, R36, R38, R39, R66, R67 +9 |
| 19 | AC0402FR-0727RL 27R | R_0402_1005Metric | R37, R40, R41, R42, R43, R44, R45, R89 +11 |
| 5 | AC0402FR-071KL 1k | R_0402_1005Metric | R46, R48, R144, R145, R146 |
| 3 | AC0402FR-0712K1L 12k1 | R_0402_1005Metric | R47, R55, R103 |
| 9 | AC0402JR-07150RL 150R | R_0402_1005Metric | R50, R51, R54, R129, R130, R131, R132, R135 +1 |
| 9 | AC0402FR-07300RL 300R | R_0402_1005Metric | R59, R63, R64, R65, R86, R87, R88, R95 +1 |
| 2 | AC0402FR-7W5K1L 5k1 | R_0402_1005Metric | R61, R62 |
| 3 | AF0402FR-074R7L 4R7 | R_0402_1005Metric | R121, R122, R123 |
Ulx5m gs design files
The KiCad project lives in the intergalaktik/ulx5m-gs repository on GitHub; these links point at the commit this page was built from.
- Layouthardware/ulx5m-gs.kicad_pcb
- Schematichardware/ulx5m-gs.kicad_sch
Ulx5m gs: common questions
How big is the Ulx5m gs PCB?
The Ulx5m gs measures 55 × 40 mm, has 6 copper layers and is 1.6 mm thick.
How many components are on the Ulx5m gs?
272 components, from 54 distinct parts. The full bill of materials is listed on this page.
Where can I download the Ulx5m gs design files?
From the intergalaktik/ulx5m-gs repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Ulx5m gs design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
