VM-sensor-PT1000 PCB layout, top view — open source board by iotmakervn

About the VM-sensor-PT1000 PCB

VM-sensor-PT1000 is an open source PCB design by iotmakervn, published on GitHub. It is a 2-layer board measuring 36 × 50.5 mm, with 27 components from 22 distinct parts.

Other key parts include the LM2595S-3.3 and MCP601T. By type, the board carries 9 resistors, 7 connectors, 6 capacitors, 2 ICs, 2 diodes and 1 inductor.

It belongs with the sensors designs in this gallery.

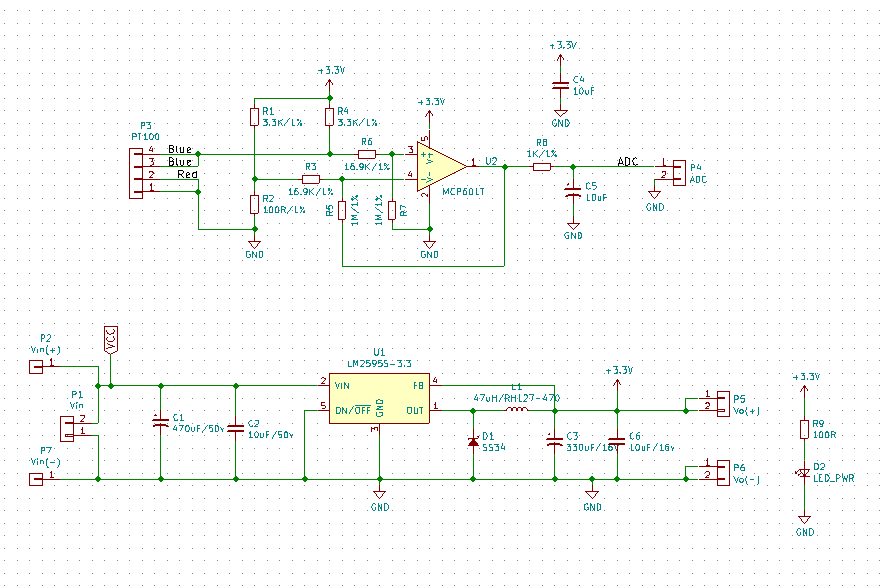

VM-sensor-PT1000, from the project README
From the project README

Main components on the VM-sensor-PT1000

LM2595S-3.3MCP601T

VM-sensor-PT1000 bill of materials (BOM)

27 components, 22 distinct parts.

QtyPartRefs
1
LM2595S-3.3
U1
1
MCP601T
U2
1
Vi
P1
1
Vin(+)
P2
1
PT100
P3
1
ADC
P4
1
Vo(+)
P5
1
Vo(-)
P6
1
Vin(-)
P7
1
SS34
D1
1
LED_Small
D2
1
47uH/RH127-470
L1
1
470uF/50v
C1
2
10uF/16v
C2, C6
1
330uF/16V
C3
2
10uF
C4, C5
2
3.3K/1%
R1, R4
1
100R/1%
R2
2
16.9K/1%
R3, R6
2
1M/1%
R5, R7
Show 2 more
QtyPartRefs
1
1K/1%
R8
1
100R
R9

VM-sensor-PT1000 design files

The KiCad project lives in the iotmakervn/VM-sensor-PT1000 repository on GitHub; these links point at the commit this page was built from.

VM-sensor-PT1000: common questions

How big is the VM-sensor-PT1000 PCB?

The VM-sensor-PT1000 measures 36 × 50.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the VM-sensor-PT1000?

27 components, from 22 distinct parts. The full bill of materials is listed on this page.

Where can I download the VM-sensor-PT1000 design files?

From the iotmakervn/VM-sensor-PT1000 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the VM-sensor-PT1000 design in my own project?

The repository has no license, so all rights stay with iotmakervn. Use it as a reference, and ask the author before reusing the design.
