IzeePad PCB layout, top view — open source RP2040/RP2350 board by IsaacM2020

About the IzeePad PCB

IzeePad is an open source RP2040/RP2350 PCB design by IsaacM2020, published on GitHub. It is a 2-layer board measuring 62.1 × 62 mm, with 8 components from 4 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 6 switches, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

My custom made macropad!

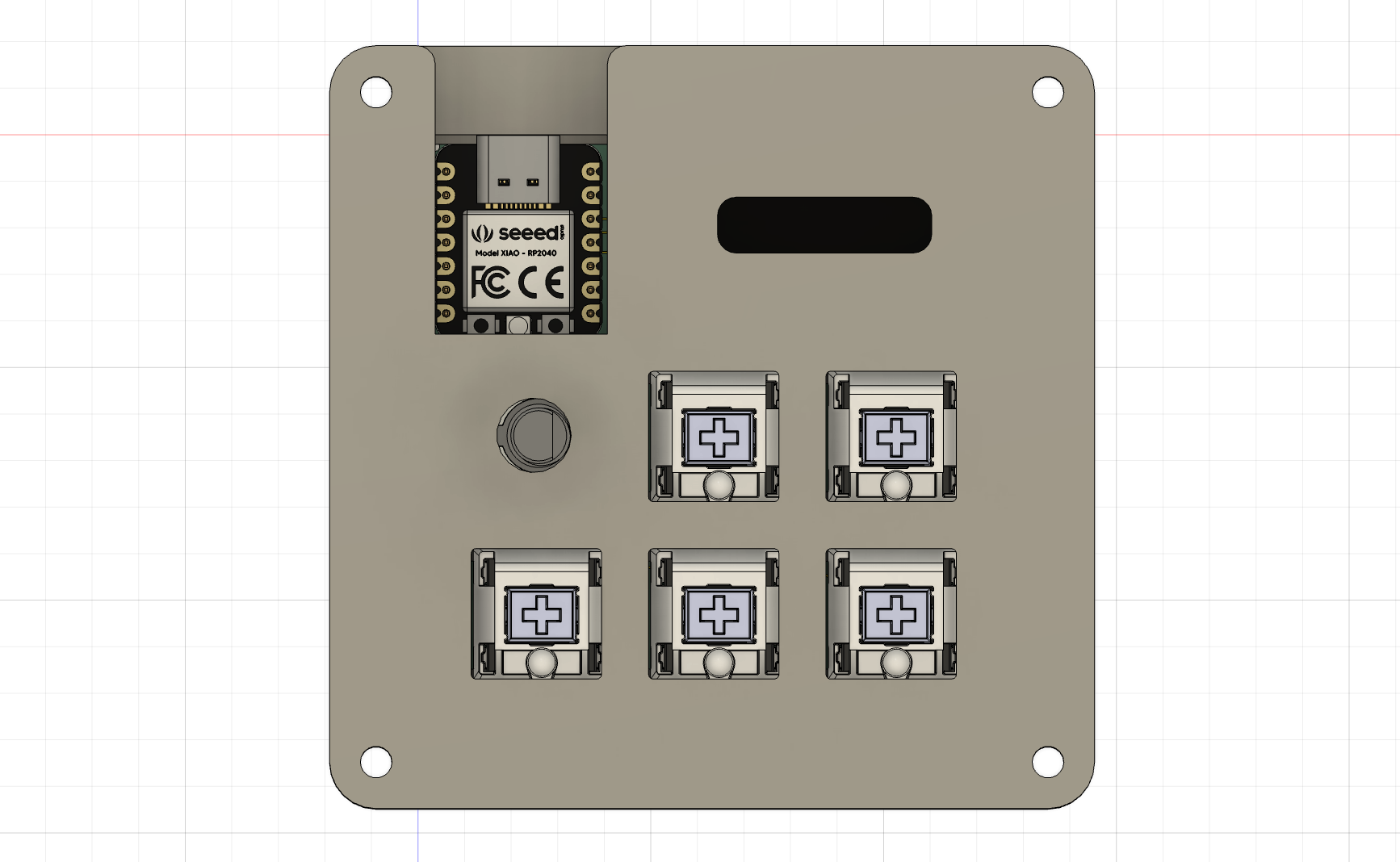

IzeePad is a custom 5-key macropad built as a fun exploration into the world of mechanical keyboards and custom electronics. I spend a lot of time at my desk, and I thought it would be a rewarding challenge to build a tool that makes my creative workflow just a little bit more personal.

Before this, I had never used Fusion 360 or KiCad, and diving head-first into this build has completely leveled up my skills in 3D modeling and electronics design.

IzeePad, from the project README
From the project README

Main components on the IzeePad

XIAO-RP2040-DIP

IzeePad bill of materials (BOM)

8 components, 4 distinct parts.

QtyPartRefs
1
XIAO-RP2040-DIP
U1
1
Conn_01x04_Pin
J1
5
SW_Push
SW1, SW2, SW3, SW4, SW5
1
RotaryEncoder_Switch
SW6

IzeePad design files

The KiCad project lives in the IsaacM2020/IzeePad repository on GitHub; these links point at the commit this page was built from.

IzeePad: common questions

What microcontroller does the IzeePad use?

The IzeePad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the IzeePad PCB?

The IzeePad measures 62.1 × 62 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the IzeePad?

8 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the IzeePad design files?

From the IsaacM2020/IzeePad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the IzeePad design in my own project?

The repository has no license, so all rights stay with IsaacM2020. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the IzeePad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
