RaspDeck PCB layout, top view — open source RP2040/RP2350 board by itsmgxb24

About the RaspDeck PCB

RaspDeck is an open source RP2040/RP2350 PCB design by itsmgxb24, published on GitHub. It is a 2-layer board measuring 86.8 × 64.3 mm, with 11 components from 3 distinct parts.

Its main chip is the RP2040-ZERO, from the RP2040/RP2350 family. By type, the board carries 9 switches and 1 IC.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

DIY macropad using the raspberry pi 2040 zero

RaspDeckV3 is a custom programmable macropad built around the Raspberry Pi RP2040.

The board features: - 9 programmable keys - 1 potentiometer - Optional support for: - 8x8 LED matrix display - SSD1306 OLED display

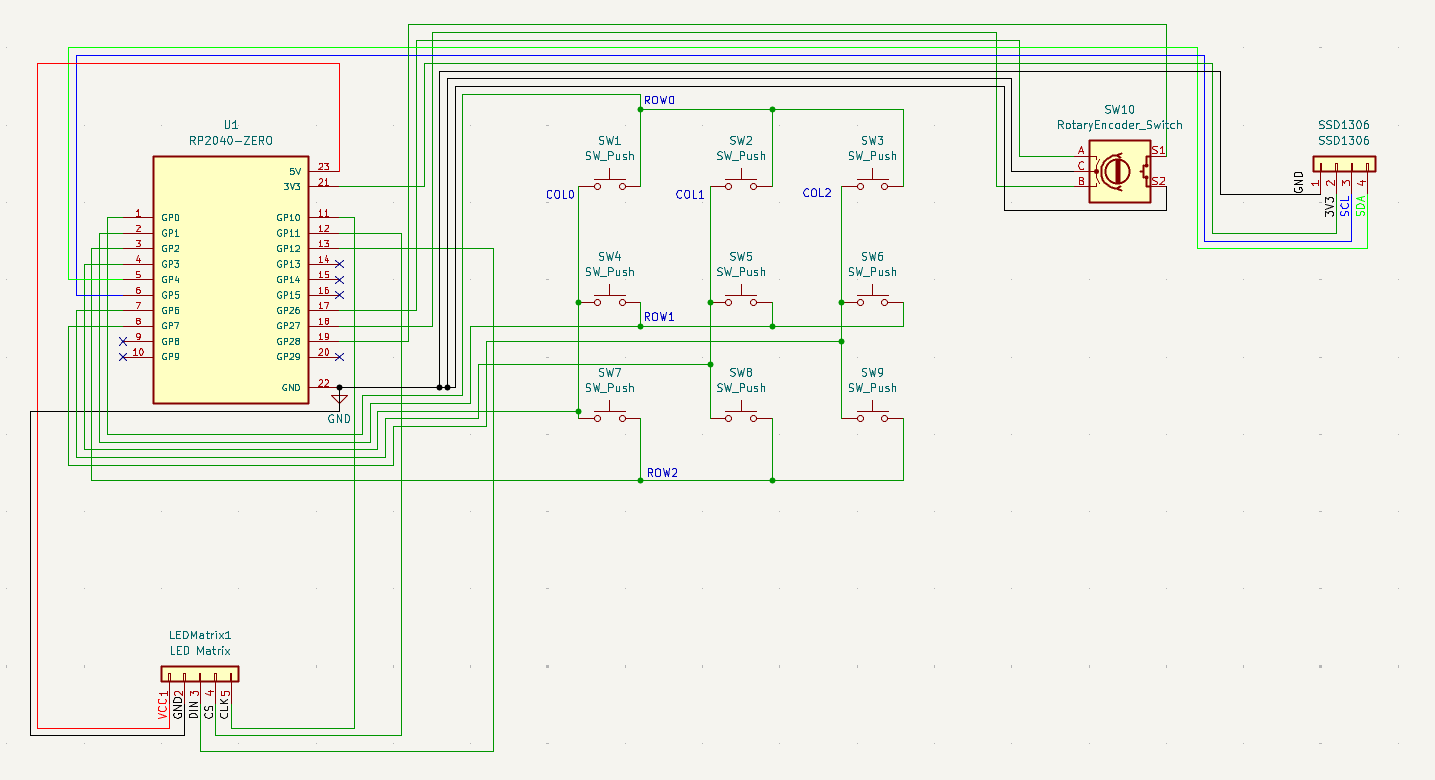

This repository contains the PCB design files and schematic for the project.

- Powered by the Raspberry Pi RP2040 - Fully programmable macro keys - Rotary potentiometer input - Compact PCB design - Optional display support - Designed in KiCad

RaspDeck, from the project README
From the project README

Main components on the RaspDeck

RP2040-ZERO

RaspDeck bill of materials (BOM)

11 components, 3 distinct parts.

QtyPartRefs
1
RP2040-ZERO
U1
1
SSD1306
SSD1306
9
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +1

RaspDeck design files

The KiCad project lives in the itsmgxb24/RaspDeck repository on GitHub; these links point at the commit this page was built from.

RaspDeck: common questions

What microcontroller does the RaspDeck use?

The RaspDeck is built around the RP2040-ZERO, from the RP2040/RP2350 family.

How big is the RaspDeck PCB?

The RaspDeck measures 86.8 × 64.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RaspDeck?

11 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the RaspDeck design files?

From the itsmgxb24/RaspDeck repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the RaspDeck design in my own project?

The repository has no license, so all rights stay with itsmgxb24. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the RaspDeck without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
