FM-Radio-Using-ESP-12E-and-RDA5807M PCB layout, top view — open source ESP8266 board by ItzzInfinity

About the FM-Radio-Using-ESP-12E-and-RDA5807M PCB

FM-Radio-Using-ESP-12E-and-RDA5807M is an open source ESP8266 PCB design by ItzzInfinity, published on GitHub under the MIT license. It is a 2-layer board measuring 47.5 × 28.3 mm, with 9 components from 6 distinct parts.

Its main chip is the ESP-12E, from the ESP8266 family. Other key parts include the RDA5807M. By type, the board carries 4 capacitors and 1 IC.

It belongs with the power & battery, audio and rf & radio designs in this gallery.

From the project

An FM radio receiver built using an ESP12E, interfaced with the RDA5807M module. Powered by a Li-Ion battery with a TP4056 charging module, amplified by a PAM8403, and output through a 10-watt speaker. Features station switching via a button.

A small FM receiver built around the RDA5807M, driven over I2C by either an ESP32-C3 SuperMini or an ESP-12E — the carrier board has a footprint for both and the firmware picks its pin map from whichever core you compile for.

Audio leaves the board on a 2-pin header to a PAM8403 amplifier and a speaker; a telescopic antenna solders to a plated mounting hole. Beyond the original button-cycles-presets behaviour, the current firmware brings up Wi-Fi and serves a web UI at http://radio.local for presets, volume, seek and manual tuning, supports OTA reflashing, and optionally drives an…

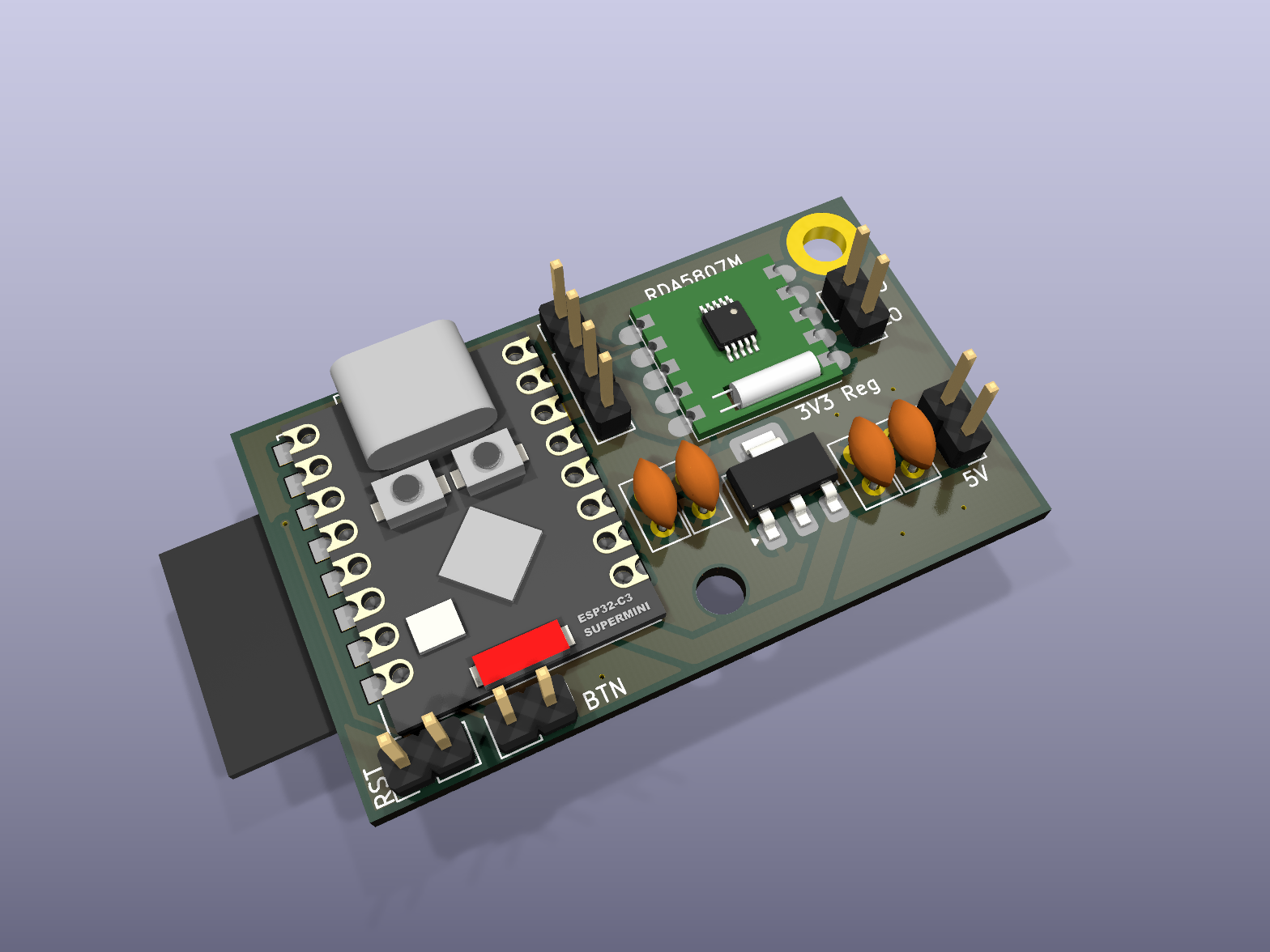

FM-Radio-Using-ESP-12E-and-RDA5807M, from the project README
From the project README

Main components on the FM-Radio-Using-ESP-12E-and-RDA5807M

RDA5807M

FM-Radio-Using-ESP-12E-and-RDA5807M bill of materials (BOM)

9 components, 6 distinct parts.

QtyPartRefs
1
RDA5807M
U3
1
AMS1117-3.3
3V3 Reg
1
Conn_01x02_Pin
5V
1
ESP-12E
ESP12E
1
ESP32-C3_SUPERMINI_TH
ESP32C3 SuperMini
4
C
C1, C2, C3, C4

FM-Radio-Using-ESP-12E-and-RDA5807M design files

The KiCad project lives in the ItzzInfinity/FM-Radio-Using-ESP-12E-and-RDA5807M repository on GitHub; these links point at the commit this page was built from.

FM-Radio-Using-ESP-12E-and-RDA5807M: common questions

What microcontroller does the FM-Radio-Using-ESP-12E-and-RDA5807M use?

The FM-Radio-Using-ESP-12E-and-RDA5807M is built around the ESP-12E, from the ESP8266 family.

How big is the FM-Radio-Using-ESP-12E-and-RDA5807M PCB?

The FM-Radio-Using-ESP-12E-and-RDA5807M measures 47.5 × 28.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the FM-Radio-Using-ESP-12E-and-RDA5807M?

9 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the FM-Radio-Using-ESP-12E-and-RDA5807M design files?

From the ItzzInfinity/FM-Radio-Using-ESP-12E-and-RDA5807M repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the FM-Radio-Using-ESP-12E-and-RDA5807M design in my own project?

Yes, under the terms of its MIT license, which ItzzInfinity chose for the repository.

Can I test firmware for the FM-Radio-Using-ESP-12E-and-RDA5807M without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
