MSX GOAULD XC7
About the MSX GOAULD XC7 PCB
MSX GOAULD XC7 is an open source PCB design by jabadiagm, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 87.9 × 65.5 mm, with 31 components from 10 distinct parts.
Other key parts include the SN74LVC245AN, QMTECH_XC7A15T_35T and 74LS245. By type, the board carries 16 resistors, 8 capacitors, 6 ICs and 1 connector.
It belongs with the retro computing designs in this gallery.
From the project

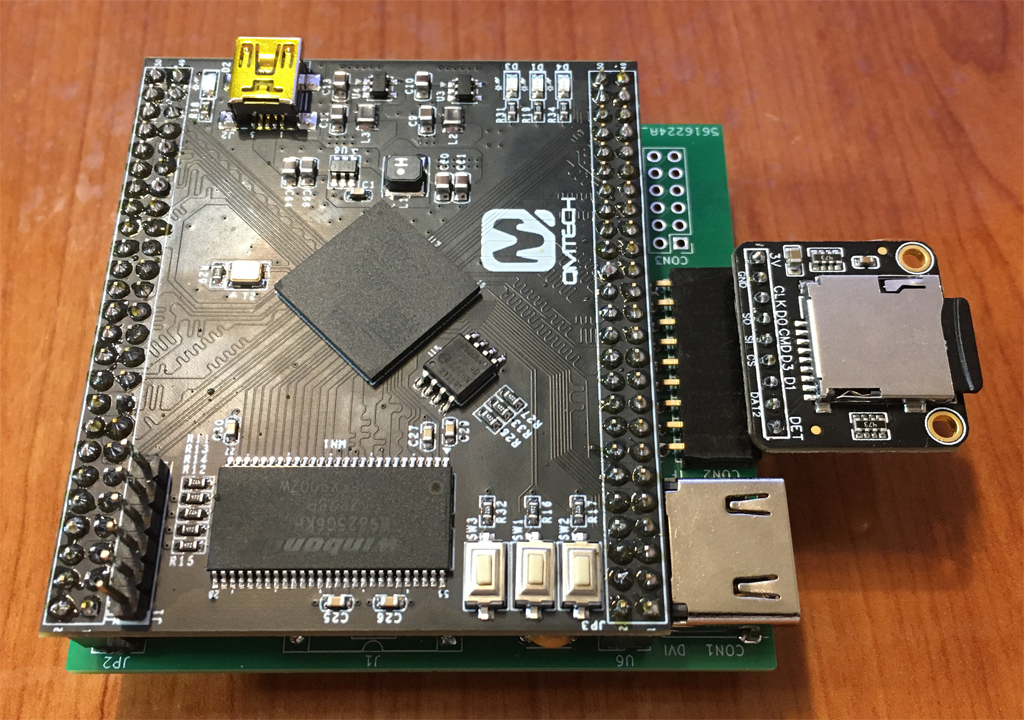

MSX Goa'uld board with Xilinx XC7A35T
MSX2+ engine in Z80 socket. It turns one MSX into an MSX2+ by replacing Z80 processor. FPGA in board contains: Z80 V9958 with hdmi output MSX2+ BIOS 4MB mapper RTC PSG through hdmi SCC (audio only) through hdmi OPLL through hdmi * SD card interface with Nextor
Place SCC cartridges in slot 1 to get SCC sound through HDMI
Revision 2 uses SOIC-20, TSSOP-20 for 74LS245 and 74LVC245 ICs, which are smaller:
Main components on the MSX GOAULD XC7
MSX GOAULD XC7 bill of materials (BOM)
31 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | SN74LVC245AN | TSSOP-20 | U1, U2 |
| 1 | QMTECH_XC7A15T_35T | QMTECH_XC7A15T_35T | U3 |
| 3 | 74LS245 | SOIC127P1032X265-20N | U4, U5, U6 |
| 1 | Z80CPU | DIP-40_W15.24mm_Socket | J1 |
| 6 | 100n | SMD_RES_1 | C1, C2, C3, C4, C5, C7 |
| 1 | 100u | CP_Radial_D8.0mm_P3.50mm | C6 |
| 1 | 0.1uF | SMD_RES_1 | C8 |
| 1 | 10k | SMD_RES_1 | R1 |
| 8 | 270R | SMD_RES_1 | R2, R3, R4, R5, R6, R7, R8, R9 |
| 7 | 4.7k | SMD_RES_1 | R10, R11, R12, R13, R14, R15, R16 |
MSX GOAULD XC7 design files
The KiCad project lives in the jabadiagm/MSXgoauld_x repository on GitHub; these links point at the commit this page was built from.
MSX GOAULD XC7: common questions
How big is the MSX GOAULD XC7 PCB?
The MSX GOAULD XC7 measures 87.9 × 65.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MSX GOAULD XC7?
31 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the MSX GOAULD XC7 design files?
From the jabadiagm/MSXgoauld_x repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the MSX GOAULD XC7 design in my own project?
Yes, under the terms of its GPL-3.0 license, which jabadiagm chose for the repository.
