PowerConditioning

Jack-Cb·Team-Jaxis-3-Axis-Coil·Jack Fraley-Power Block/PowerConditioning/PowerConditioning.kicad_pcb

PowerConditioning PCB layout, top view — open source board by Jack-Cb

About the PowerConditioning PCB

PowerConditioning is an open source PCB design by Jack-Cb, published on GitHub. It is a 2-layer board measuring 29.2 × 42.9 mm, with 22 components from 12 distinct parts.

Other key parts include the PTPS7A9401DSCR, ADR4525ARZ and OPA2211AIDDAR. By type, the board carries 10 capacitors, 5 connectors, 3 ICs and 3 resistors.

It belongs with the power & battery designs in this gallery.

From the project

Documentation, resources, code, schematics, pcb layouts, and all related materials for the 3-Axis Coil ECE project at Oregon State University.

This folder contains two KiCad hardware designs split by function.

- 5V buck converter: LM62460Q1 (LM62460QRPHRQ1) - 3.3V linear regulator: TPS7A94 (PTPS7A9401DSCR) - Comparator stage: TLV6710 (TLV6710DDCT)

- Precision voltage reference: ADR4525 (ADR4525ARZ) - Low-noise LDO: TPS7A94 (PTPS7A9401DSCR) - Precision op-amp: OPA2211 (OPA2211AIDDAR)

- Each project includes KiCad source files (.kicadsch, .kicadpcb, .kicadpro) and generated Gerbers. - KiCad backup archives and local transient files are excluded via .gitignore`.

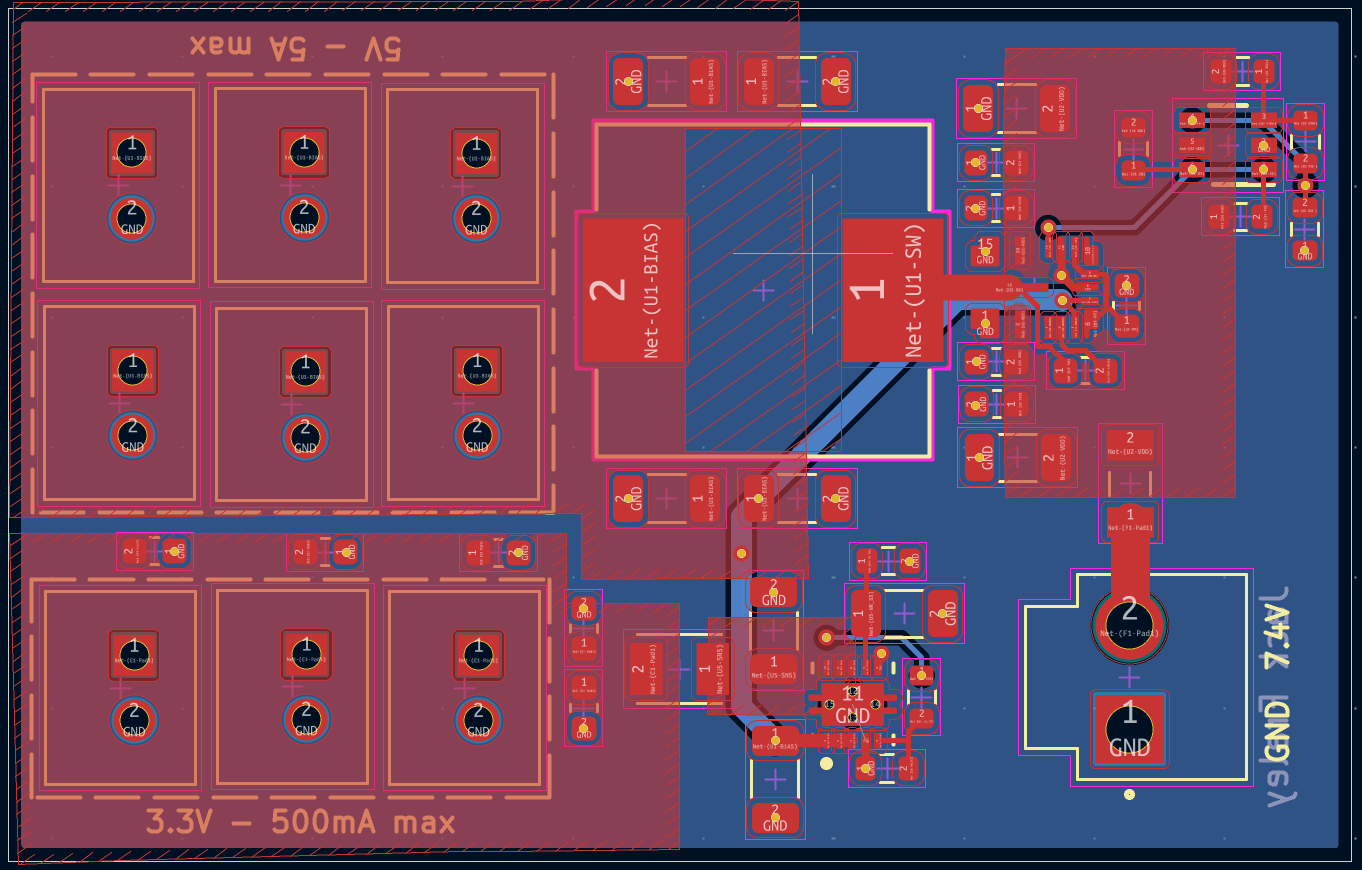

PowerConditioning, from the project README — From the project README

Main components on the PowerConditioning

PTPS7A9401DSCRADR4525ARZOPA2211AIDDAR

PowerConditioning bill of materials (BOM)

22 components, 12 distinct parts.

Qty	Part	Footprint	Refs
1	PTPS7A9401DSCR	DSC0010J-MFG	U1
1	ADR4525ARZ	R_8_ADI	U3
1	OPA2211AIDDAR	DDA8_3X2P49	U4
5	B2B-XH-A	JST_B2P-VH_LF__SN_	J1, J2, J3, J4, J5
1	NFZ32BW520HN11L	FIL_NFZ32BW520HN11L	FL1
5	0.1uF	C_0603_1608Metric	C1, C5, C7, C9, C11
2	10uF	C_0603_1608Metric	C2, C6
2	1uF	C_0603_1608Metric	C3, C8
1	4.7uF	C_0603_1608Metric	C4
1	12.4k	R_0603_1608Metric	R1
1	287k	R_0603_1608Metric	R2
1	31.6k	R_0603_1608Metric	R3

PowerConditioning design files

The KiCad project lives in the Jack-Cb/Team-Jaxis-3-Axis-Coil repository on GitHub; these links point at the commit this page was built from.

PowerConditioning: common questions

How big is the PowerConditioning PCB?

The PowerConditioning measures 29.2 × 42.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PowerConditioning?

22 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the PowerConditioning design files?

From the Jack-Cb/Team-Jaxis-3-Axis-Coil repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the PowerConditioning design in my own project?

The repository has no license, so all rights stay with Jack-Cb. Use it as a reference, and ask the author before reusing the design.
