Kame32 PCB layout, top view — open source ESP32 board by JavierIH

About the Kame32 PCB

Kame32 is an open source ESP32 PCB design by JavierIH, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 67.6 × 30.6 mm, with 15 components from 10 distinct parts.

Its main chip is the PinHeader_1x30_P2.54mm_Vertical, from the ESP32 family. Other key parts include the TEA1-0505. By type, the board carries 7 connectors, 3 ICs, 2 capacitors, 2 resistors and 1 switch.

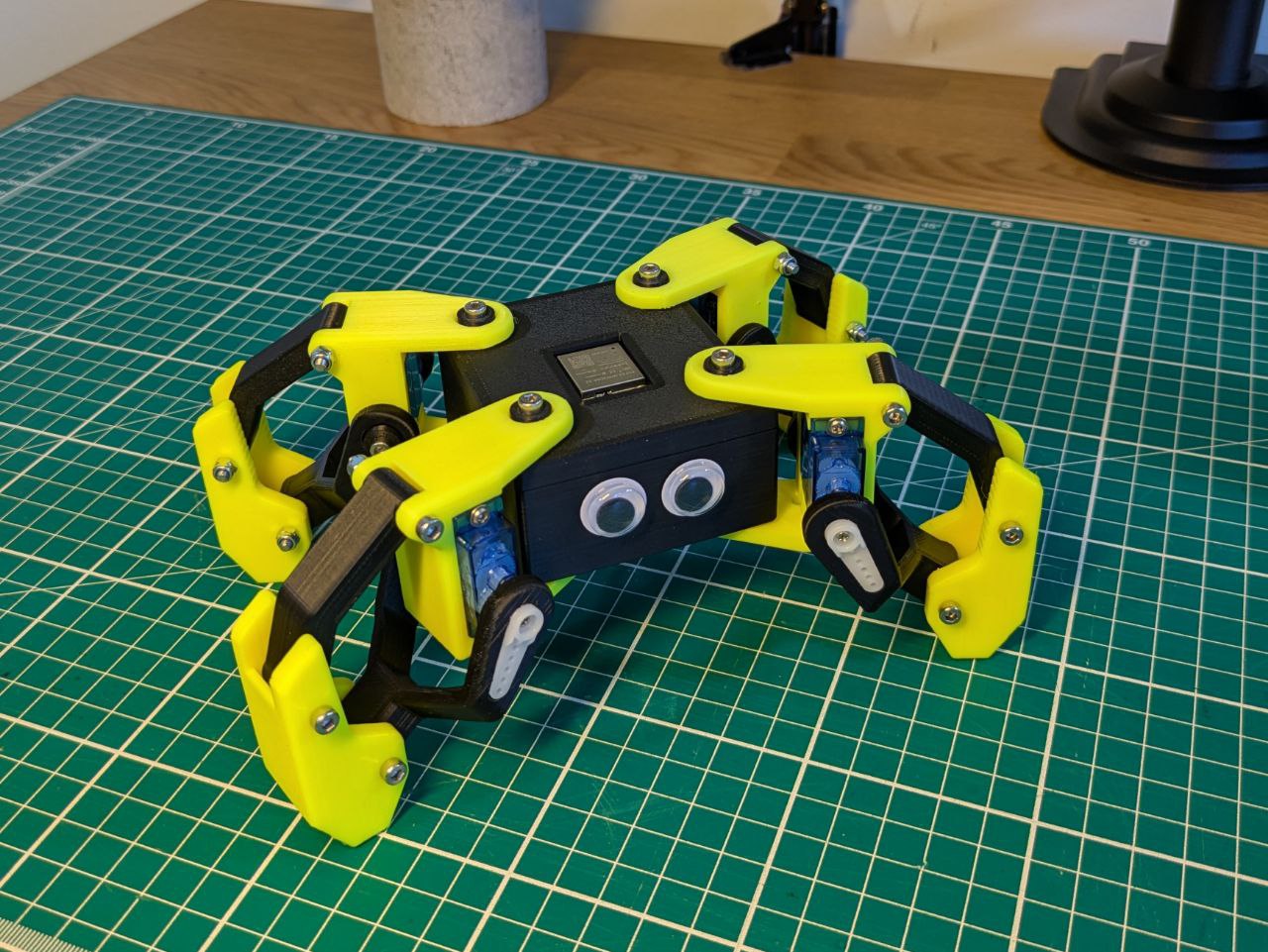

Kame32, from the project README
From the project README

Main components on the Kame32

TEA1-0505

Kame32 bill of materials (BOM)

15 components, 10 distinct parts.

QtyPartRefs
2
TEA1-0505
U1, U3
1
~
U2
2
Conn_02x04_Odd_Even
J2, J6
2
Conn_01x04
J3, J4
1
Conn_01x02
J5
2
Conn_01x05
J7, J8
1
SW_SPDT
SW1
2
C
C1, C2
1
10k
R1
1
4k7
R2

Kame32 design files

The KiCad project lives in the JavierIH/kame32 repository on GitHub; these links point at the commit this page was built from.

Kame32: common questions

What microcontroller does the Kame32 use?

The Kame32 is built around the PinHeader_1x30_P2.54mm_Vertical, from the ESP32 family.

How big is the Kame32 PCB?

The Kame32 measures 67.6 × 30.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kame32?

15 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kame32 design files?

From the JavierIH/kame32 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Kame32 design in my own project?

Yes, under the terms of its GPL-3.0 license, which JavierIH chose for the repository.

Can I test firmware for the Kame32 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
