About the Ghostblade PCB

Ghostblade is an open source RP2040/RP2350 PCB design by jayis1, published on GitHub under the CERN-OHL-S-2.0 license. It is a board, with 66 components from 58 distinct parts.

Its main chip is the RP2350B, from the RP2040/RP2350 family. Other key parts include the RK3576, LMS7002M, CC1101, ST25R3916 and PE42422. By type, the board carries 16 ICs, 13 inductors, 12 test points, 10 connectors, 8 diodes and 5 crystals.

It belongs with the rf & radio and iot & wireless designs in this gallery.

From the project

GhostBlade -- Project NullSpectre: Advanced Mobile Pentesting Lab. Dual-processor (RK3576+RP2350B) SDR-equipped handheld with LMS7002M, CC1101, ST25R3916 NFC, and Wi-Fi 6E. Full hardware designs, schematics, PCB layouts, and embedded software stack.

Dual-processor (RK3576 + RP2350B) SDR-equipped handheld with Wi-Fi 6E, sub-GHz, and NFC

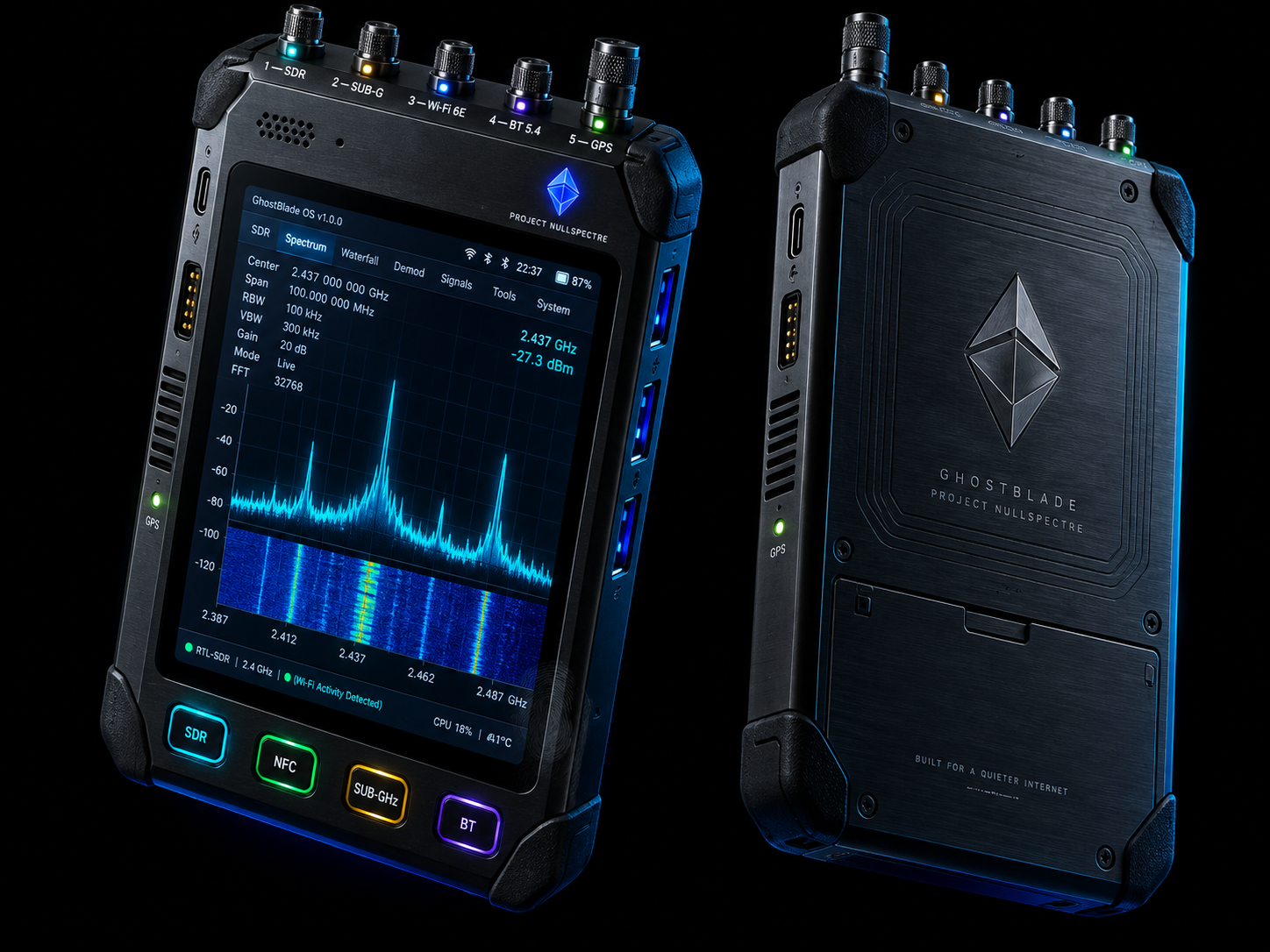

Hardware overview — 3D render, multi-view blueprint, and key specifications.

GhostBlade is a pocket-sized penetration testing and security research platform that combines a powerful Linux SoC with a real-time coprocessor to deliver wideband SDR, sub-GHz radio, NFC/RFID, Wi-Fi 6E, RTK GPS — all in a rugged handheld form factor.

Main components on the Ghostblade

RK3576 RP2350B LMS7002M CC1101 ST25R3916 PE42422 MT7922 RK817 K3LKBKB0BM-MGCJ THGBMJG6C1LBAB7 TLV75533DBVR TLV75518DBVR NCP303LSN09T1G W25Q128JVSIQ SY8120BABC TPS63020

Ghostblade bill of materials (BOM)

66 components, 58 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	RK3576 Rockchip	FCBGA-732_0.65mm	U1
1	RP2350B Raspberry Pi	QFN-60-0.4mm_7x7mm	U2
1	LMS7002M Lime Microsystems	QFN-64-0.5mm_9x9mm	U3
1	CC1101 Texas Instruments	QFN-20-0.5mm_4x4mm	U4
1	ST25R3916 STMicroelectronics	QFN-32-0.5mm_5x5mm	U5
1	PE42422 Peregrine Semiconductor	QFN-16-0.5mm_3x3mm	U6
1	MT7922 MediaTek	LGA-145_14.5x13.5mm	U7
1	RK817 Rockchip	QFN-48-0.5mm_6x6mm	U8
1	K3LKBKB0BM-MGCJ Samsung	FBGA-200_0.4mm_12x12mm	U9
1	THGBMJG6C1LBAB7 Kioxia	BGA-153_0.5mm_11.5x13mm	U10
1	TLV75533DBVR TLV75533 Texas Instruments	SOT-23-5	U11
1	TLV75518DBVR TLV75518 Texas Instruments	SOT-23-5	U12
1	NCP303LSN09T1G NCP303 ON Semiconductor	SOT-23-5	U13
1	W25Q128JVSIQ W25Q128JVS Winbond	SOP-8_5.3x8mm	U14
1	SY8120BABC SY8120B Silergy	SOT-23-6	U15
1	TPS63020 Texas Instruments	VQFN-14_2.5x2.5mm	U16
1	ABM8-24.000MHZ 24MHz_Crystal Abracon	Crystal_HC49_SMD	Y1
1	FC-135 32.768kHz_Crystal Epson_FC-135	Crystal_3.2x1.5mm	Y2
1	ABM8-40.000MHZ 40MHz_Crystal Abracon	Crystal_HC49_SMD	Y3
1	7M-26.000MAAE 26MHz_Crystal TXC	Crystal_HC49_SMD	Y4

Show 38 more

Qty	Part	Footprint	Refs
1	27.12MHz_NFC 27.12MHz_Crystal NXP	Crystal_3.2x2.5mm	Y5
1	2199230-1 M.2_2230_Socket TE Connectivity	M.2_2230_Key_M	J1
1	12401832E422A USB-C_24pin Amphenol	USB-C_24pin_0.5mm	J2
1	132289 SMA_RF_SDR Amphenol	SMA_Edge_Mount	J3
1	132289 SMA_RF_SubGHz Amphenol	SMA_Edge_Mount	J4
1	132289 SMA_RF_WiFi_2G Amphenol	SMA_Edge_Mount	J5
1	132289 SMA_RF_WiFi_5G Amphenol	SMA_Edge_Mount	J6
1	5040771891 uSD_Card Molex	MicroSD_Push-Push	J7
1	DF40C-30DP-0.4V MIPI_DSI_FPC Hirose	FPC_30pin_0.4mm	J8
1	FTSH-105-01-F-DV-K JTAG_Header Samtec	Pin_Header_2x05_1.27mm	J9
1	DF40C-40DP-0.4V FPC_40pin Hirose	FPC_40pin_0.4mm	J10
2	SKQGAFE010 Tactile_Switch Alps	Switch_Tactile_6x3.5mm	SW1, SW2
1	TEST_POINT_UART_TX	TestPoint_Pad_D1.0mm	TP1
1	TEST_POINT_UART_RX	TestPoint_Pad_D1.0mm	TP2
1	TEST_POINT_GND	TestPoint_Pad_D1.0mm	TP3
1	TEST_POINT_3V3	TestPoint_Pad_D1.0mm	TP4
1	TEST_POINT_SPI_SCK	TestPoint_Pad_D1.0mm	TP5
1	TEST_POINT_SPI_MOSI	TestPoint_Pad_D1.0mm	TP6
1	TEST_POINT_SPI_MISO	TestPoint_Pad_D1.0mm	TP7
1	TEST_POINT_SPI_CS	TestPoint_Pad_D1.0mm	TP8
1	TEST_POINT_VBAT	TestPoint_Pad_D1.0mm	TP9
1	TEST_POINT_1V8	TestPoint_Pad_D1.0mm	TP10
1	TEST_POINT_SDR_1V2	TestPoint_Pad_D1.0mm	TP11
1	TEST_POINT_INT_REQ	TestPoint_Pad_D1.0mm	TP12
4	TPD4E05U06DQAR TPD4E05U06 Littelfuse	USON-10_1.5x3.0mm	D1, D6, D7, D8
3	BGS8N4H6327XTSA1 BGS8N4 Littelfuse	SOT-143-4_2.9x2.5mm	D2, D3, D4
1	PRTR5V0U2X,215 PRTR5V0U2X Kingbright	SOT-23-6_1.5x3.0mm	D5
3	BLM18PG601SN1D 600R_Ferrite Murata	R_0402	FB1, FB2, FB3
1	BLM18PG121SN1D 120R_Ferrite Murata	R_0402	FB4
1	DFE201612E-100M= 10uH_Power_Inductor Murata	Inductor_2x1.6mm	L1
1	DFE201612E-4R7M= 4.7uH_Power_Inductor Murata	Inductor_2x1.6mm	L2
1	DFE201612E-2R2M= 2.2uH_Power_Inductor Murata	Inductor_2x1.6mm	L3
1	DFE201612E-1R5M= 1.5uH_Power_Inductor Murata	Inductor_2x1.6mm	L4
1	74477110 10uH_Boost_Inductor Wurth	Inductor_4x4mm	L5
1	252R15S2R7LV4E 2.7nH_RF_Matching Johanson	R_0402	L6
1	252R15S3N3LV4E 3.3nH_RF_Matching Johanson	R_0402	L7
1	252R15S10NV4E 10nH_RF_Matching Johanson	R_0402	L8
1	252R15S27NV4E 27nH_RF_Matching Johanson	R_0402	L9

Ghostblade design files

The KiCad project lives in the jayis1/ghostblade repository on GitHub; these links point at the commit this page was built from.

Netlisthardware/kicad/ghostblade.net
BOMhardware/bom/ghostblade-bom.csv

Ghostblade: common questions

What microcontroller does the Ghostblade use?

The Ghostblade is built around the RP2350B, from the RP2040/RP2350 family.

How many components are on the Ghostblade?

66 components, from 58 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Ghostblade design files?

From the jayis1/ghostblade repository on GitHub, which has a netlist and the BOM; the links under Design files point to each one.

Can I use the Ghostblade design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which jayis1 chose for the repository.

Can I test firmware for the Ghostblade without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
