Wheatboard PCB layout, top view — open source RP2040/RP2350 board by jbagnara

About the Wheatboard PCB

Wheatboard is an open source RP2040/RP2350 PCB design by jbagnara, published on GitHub. It is a 2-layer board measuring 304.8 × 95.2 mm, with 174 components from 29 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the NCP1117-3.3_SOT223 and W25Q128JVS. By type, the board carries 70 switches, 70 diodes, 16 capacitors, 10 resistors, 3 ICs and 3 connectors.

It belongs with the keyboards designs in this gallery.

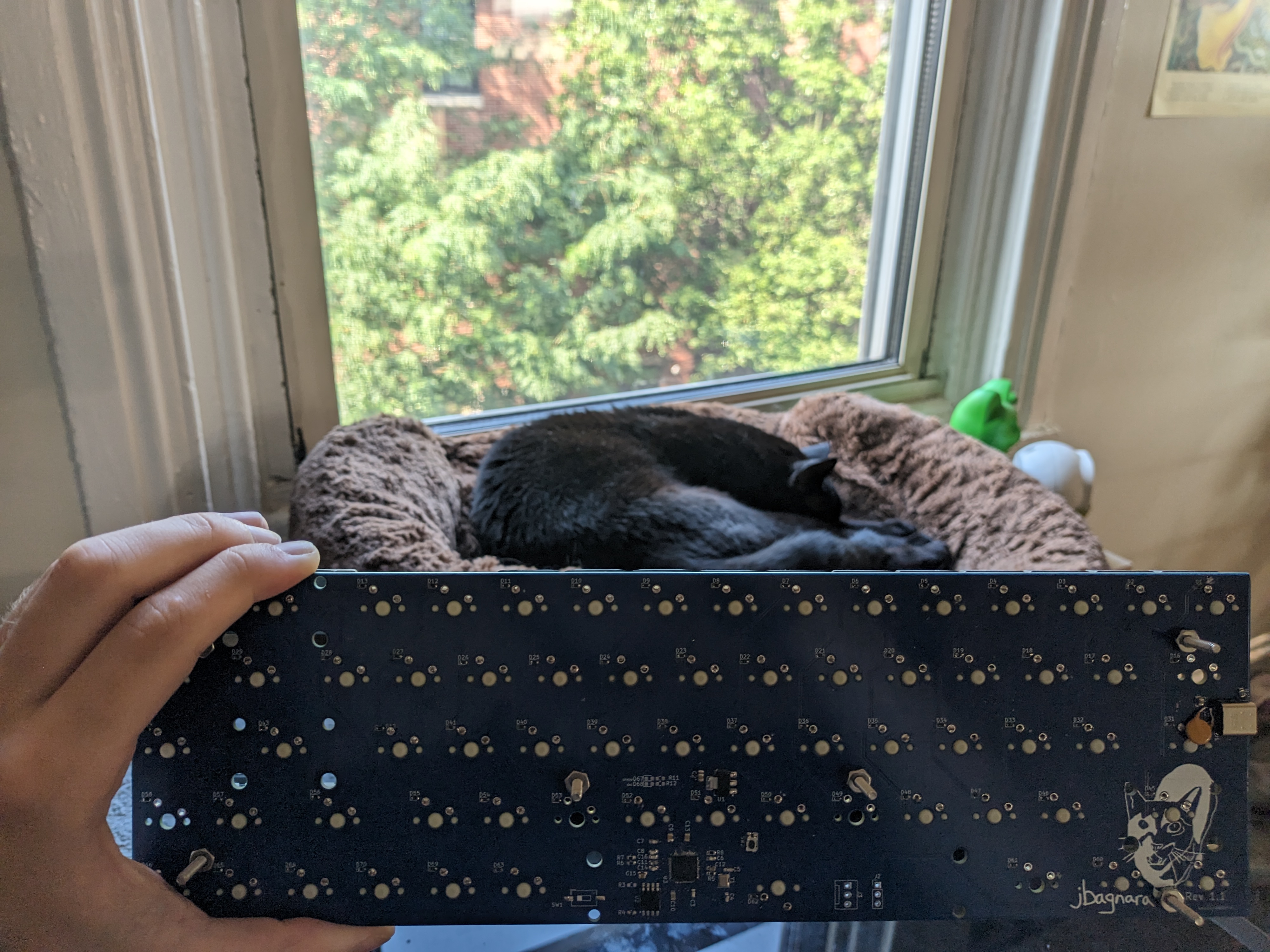

Wheatboard, from the project README
From the project README

Main components on the Wheatboard

NCP1117-3.3_SOT223W25Q128JVSRP2040

Wheatboard bill of materials (BOM)

174 components, 29 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
NCP1117-3.3_SOT223
U1
1
W25Q128JVS
U2
1
RP2040
U3
1
ABM8-272-T3
Y1
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1
1
GPIO Breakout
J2
1
SWD Debug
J3
1
Fuse
F1
1
SW_DIP_X01
SW_DIP_x01
SW1
1
SW_Push
SW2
57
SW_Push
SW3, SW4, SW5, SW6, SW7, SW8, SW9, SW10 +49
1
SW_Push
SW16
2
SW_Push
SW18, SW31
2
SW_Push
SW33, SW58
2
SW_Push
SW45, SW47
3
SW_Push
SW61, SW62, SW63
1
SW_Push
SW64
68
1N4148WT
D1, D2, D3, D4, D5, D6, D7, D8 +60
2
3V3
D67, D68
2
10U
10u
C1, C2
Show 9 more
QtyPartRefs
10
100N
100n
C3, C6, C7, C8, C9, C10, C11, C12 +2
2
15P
15p
C4, C5
2
1u
C15, C16
2
5.1K
5.1k
R1, R2
1
DNF
R3
2
1k
R4, R5
2
27
R6, R7
1
10K
10k
R8
2
110
R11, R12

Wheatboard design files

The KiCad project lives in the jbagnara/wheatboard repository on GitHub; these links point at the commit this page was built from.

Wheatboard: common questions

What microcontroller does the Wheatboard use?

The Wheatboard is built around the RP2040, from the RP2040/RP2350 family.

How big is the Wheatboard PCB?

The Wheatboard measures 304.8 × 95.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Wheatboard?

174 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Wheatboard design files?

From the jbagnara/wheatboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Wheatboard design in my own project?

The repository has no license, so all rights stay with jbagnara. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Wheatboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
