About the ReAgnus PCB

ReAgnus is an open source FPGA PCB design by jbilander, published on GitHub under the CC-BY-SA-4.0 license. It is a 4-layer board measuring 38 × 38 mm, with 38 components from 15 distinct parts.

Its main chip is the 10M02SCU169C8G, from the FPGA family. Other key parts include the LM1117-3.3, SN74CBTD16210, 74LVC1G07, PLCC_84_plug and Agnus_TH_plug_pins. By type, the board carries 24 capacitors, 9 ICs and 4 resistors.

It belongs with the retro computing designs in this gallery.

From the project

A drop-in replacement PCB for the Amiga Agnus chip

Rev. 2D, design using a PLCC-84 homebrew plug

L1(Top layer): FCu.gbr L2(Inner layer1): GNDCu.gbr L3(Inner layer2): VCCCu.gbr L4(Bottom layer): BCu.gbr

This will notify JLC where to put the order number, they will replace the "JLCJLCJLCJLC" silkscreen label.

BOM Rev. 2E (837X - Universal Agnus PCB design) --------- Position | Name/Value | Package | Notes -|-|-|-| U1 | 10M04SCU169C8G | BGA-169 11.0x11.0mmLayout13x13 | FPGA Intel MAX 10 10M04SCU169C8G U2 | LM1117-3.3 | SOT-223 | Low-Dropout Linear Regulator 3.3 Volt U3-U6 | SN74CBTD16210 | TSSOP-48 6.1x12.5mmP0.5mm | 20-BIT FET Bus switch…

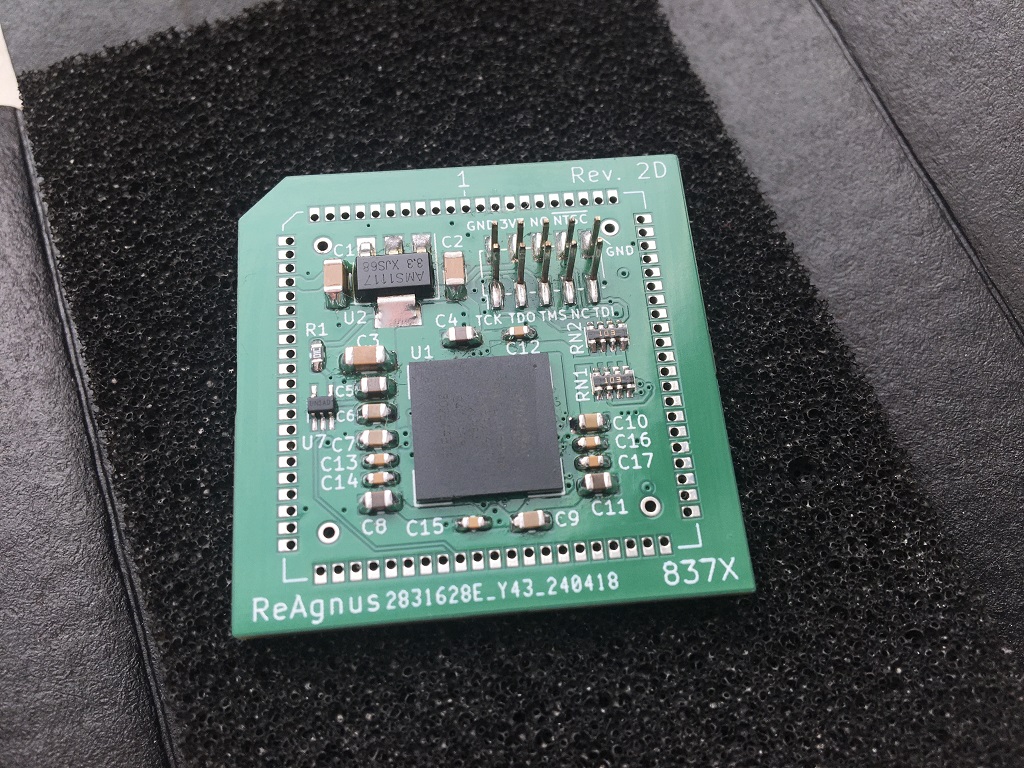

ReAgnus, from the project README
From the project README

Main components on the ReAgnus

10M02SCU169C8GLM1117-3.3SN74CBTD1621074LVC1G07PLCC_84_plugAgnus_TH_plug_pins

ReAgnus bill of materials (BOM)

38 components, 15 distinct parts.

QtyPartRefs
1
10M02SCU169C8G
U1
1
LM1117-3.3
U2
4
SN74CBTD16210
U3, U4, U5, U6
1
74LVC1G07
U7
1
PLCC_84_plug
U8
1
Agnus_TH_plug_pins
U9
1
Conn_02x05_Odd_Even
JTAG1
3
10uF
C1, C2, C3
4
1uF
C4, C5, C8, C11
4
0.1uF
C6, C7, C9, C10
12
0.01uF
C12, C13, C14, C15, C16, C17, C18, C19 +4
1
0.1uF
C20
1
10k
R1
1
10k
R2
2
10k
RN1, RN2

ReAgnus design files

The KiCad project lives in the jbilander/ReAgnus repository on GitHub; these links point at the commit this page was built from.

ReAgnus: common questions

What microcontroller does the ReAgnus use?

The ReAgnus is built around the 10M02SCU169C8G, from the FPGA family.

How big is the ReAgnus PCB?

The ReAgnus measures 38 × 38 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the ReAgnus?

38 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the ReAgnus design files?

From the jbilander/ReAgnus repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the ReAgnus design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which jbilander chose for the repository.

Can I test firmware for the ReAgnus without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
