Autopatzer PCB layout, top view — open source NXP board by jes

About the Autopatzer PCB

Autopatzer is an open source NXP PCB design by jes, published on GitHub. It is a 2-layer board measuring 124.5 × 77.5 mm, with 36 components from 10 distinct parts.

Its main chip is the Teensy3.2, from the NXP family. Other key parts include the CD4051B and Pololu_Breakout_A4988. By type, the board carries 16 connectors, 9 ICs, 7 resistors, 2 modules, 1 transistor and 1 diode.

It belongs with the robotics & motion designs in this gallery.

From the project

Automatic chess board

An automatic chess board, supporting online play with people all over the world via the Lichess Boards API.

This repo contains FreeCAD files for the mechanical design, KiCad files for PCB design, Arduino code to run on the microcontroller, Perl code for the library/program that interfaces with the controller, and JavaScript code for the user interface and Lichess interface.

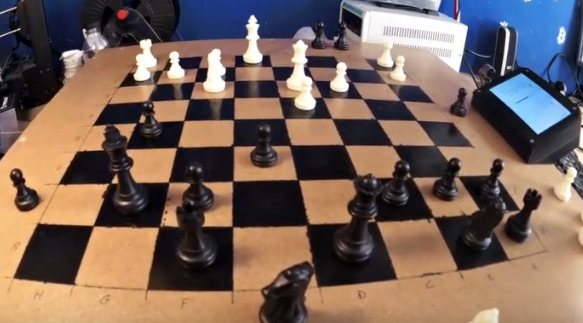

Autopatzer, from the project README
From the project README

Main components on the Autopatzer

Teensy3.2CD4051BPololu_Breakout_A4988

Autopatzer bill of materials (BOM)

36 components, 10 distinct parts.

QtyPartRefs
1
Teensy3.2
U1
8
CD4051B
U2, U3, U4, U5, U6, U7, U8, U9
2
Pololu_Breakout_A4988
A1, A2
1
IRF540N
Q1
8
Conn_01x08_Male
J1, J2, J3, J4, J5, J6, J7, J8
2
Conn_01x04_Male
J9, J13
4
Conn_01x02_Male
J10, J14, J15, J16
2
Conn_02x03_Odd_Even
J11, J12
1
D
D1
7
R
R1, R2, R3, R4, R5, R6, R7

Autopatzer design files

The KiCad project lives in the jes/autopatzer repository on GitHub; these links point at the commit this page was built from.

Autopatzer: common questions

What microcontroller does the Autopatzer use?

The Autopatzer is built around the Teensy3.2, from the NXP family.

How big is the Autopatzer PCB?

The Autopatzer measures 124.5 × 77.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Autopatzer?

36 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the Autopatzer design files?

From the jes/autopatzer repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Autopatzer design in my own project?

The repository has no license, so all rights stay with jes. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Autopatzer without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
